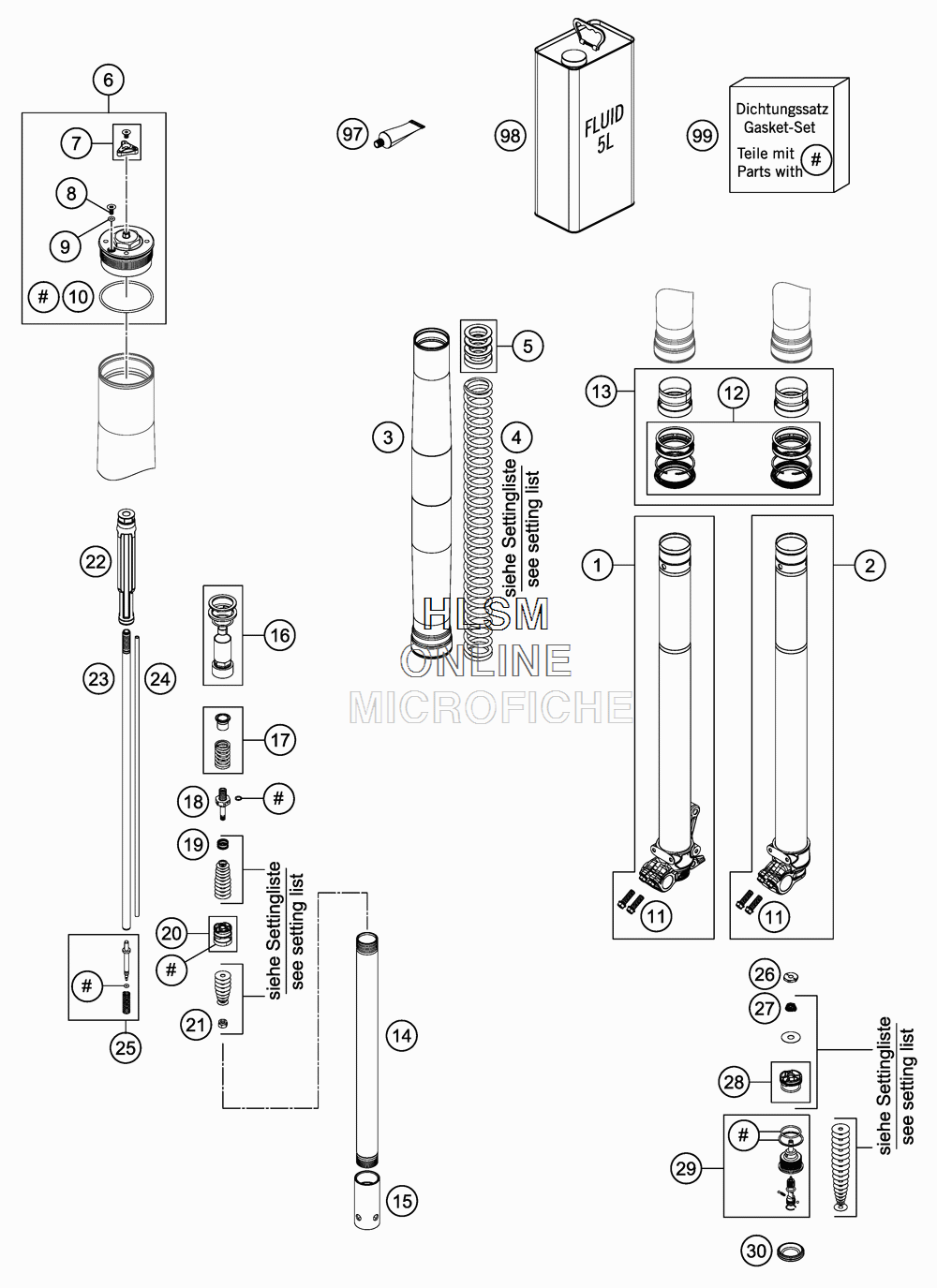

FRONT FORK DISASSEMBLED для Ktm 250 XCFW - 2016 года выпуска`
-
№АртикулНазвание
-
148601437S1 AXLE CLAMP L/S + TUBEAXLE CLAMP L/S + TUBE
-
248601438S1 AXLE CLAMP R/S + TUBEAXLE CLAMP R/S + TUBE
-
348600736 OUTER TUBE L577 D54/60MM 2LOUTER TUBE L577 D54/60MM 2L
-
491410012S SPRING 3,8N/MM SET D=4,9MMSPRING 3,8N/MM SET D=4,9MM
-
491410013S SPRING 4,0N/MM SET D=5,0MMSPRING 4,0N/MM SET D=5,0MM
-
491410014S SPRING 4,2N/MM SET D=5,0MMSPRING 4,2N/MM SET D=5,0MM
-
491410015S SPRING 4,4N/MM SET D=5,1MMSPRING 4,4N/MM SET D=5,1MM
-
491410016S SPRING 4,6N/MM SETSPRING 4,6N/MM SET
-
491410017S SPRING 4,8N/MM SETSPRING 4,8N/MM SET
-
5R14026 SPRING SPACER KITSPRING SPACER KIT
-
648601561E SCREW CAP M51X1,5SCREW CAP M51X1,5
-
748601118S ADJUSTER REB. (RED)ADJUSTER REB. (RED)
-
848600481 VENT SCREW M4X8VENT SCREW M4X8
-
948600046 O-RING NBR 3X1,5O-RING NBR 3X1,5
-
1046810340 O-RING NBR 45X2O-RING NBR 45X2
-
110025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
12R14040 GASKET KIT CPL.GASKET KIT CPL.
-
13R14063 FORK REP . KIT 48MMFORK REP . KIT 48MM
-
1448600763 PIPE D23/L350PIPE D23/L350
-
1548600764 ADAPTER SLEEVE D23/D28ADAPTER SLEEVE D23/D28
-
1648600830S SCREW SLEEVE M27X0,8SCREW SLEEVE M27X0,8
-
1748600511S REBOUND SPRING L32 C17REBOUND SPRING L32 C17
-
1848600576 PISTON ROD REBOUNDPISTON ROD REBOUND
-
1935480377 SPRING CHECK VALVE D=0,5SPRING CHECK VALVE D=0,5
-
2048600575S PISTON REBOUND + PISTONPISTON REBOUND + PISTON
-
2140540486 NUT M6X0,5 REBOUNDNUT M6X0,5 REBOUND
-
2248600557S HYDR.STOP L=200 D=31,9 CPL.HYDR.STOP L=200 D=31,9 CPL.
-
2348600568 PISTON ROD D=12 L=554 ALUPISTON ROD D=12 L=554 ALU
-
2448600559 ADJUSTING TUBE L=520ADJUSTING TUBE L=520
-
2548600277S ADJUSTING NEEDLEADJUSTING NEEDLE
-
2648600163 CHECK VALVE NUT M6X0,5 D=2CHECK VALVE NUT M6X0,5 D=2
-
2748600202 SPRING CHECK VALVE D=0,7SPRING CHECK VALVE D=0,7
-
2848600047S PISTONPISTON
-
2948600586E TAP COMPRESSION CPL.TAP COMPRESSION CPL.
-
3048600141 RUBBER CAP D=35MMRUBBER CAP D=35MM
-
97T511 SILICONE GREASE F. DUST STRIPESILICONE GREASE F. DUST STRIPE
-
9848601166S1 FORK OIL SAE4 5LFORK OIL SAE4 5L
-
99R14064 O-RING KIT FORKO-RING KIT FORK
