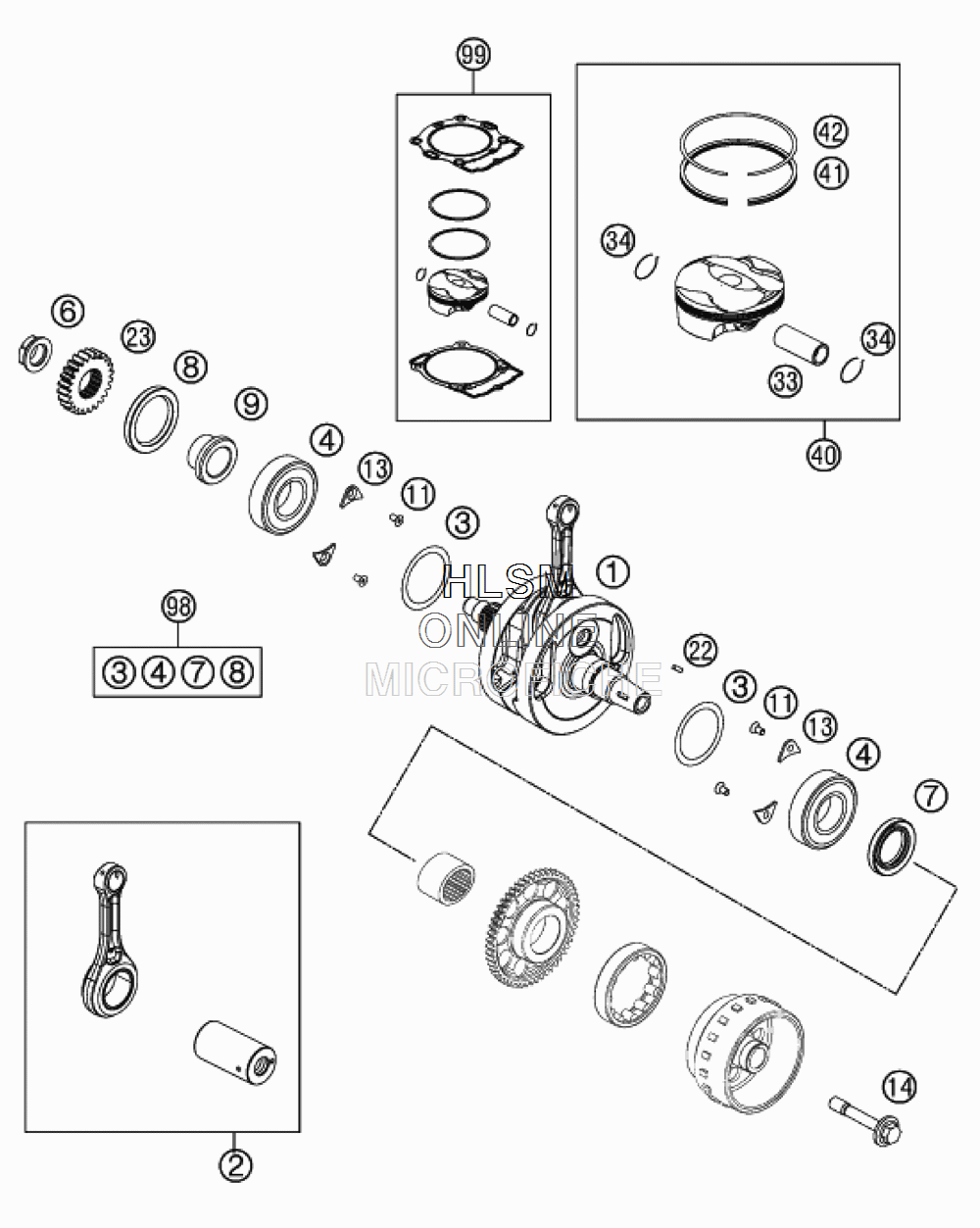

CRANKSHAFT PISTON для Ktm 250 XCFW - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    77730118000 CRANKSHAFT CPL.
    CRANKSHAFT CPL.
  • 2
    77730015144 CONNECTING ROD REPAIR SET
    CONNECTING ROD REPAIR SET
  • 3
    0988324510 THRUST WASHER 988ST 32X0,1
    THRUST WASHER 988ST 32X0,1
  • 3
    0988324515 THRUST WASHER 988ST 32X0,15
    THRUST WASHER 988ST 32X0,15
  • 3
    0988324530 THRUST WASHER 988ST 32X0,30
    THRUST WASHER 988ST 32X0,30
  • 4
    77330082200 BEARING NJ 206 ECP/HN3C4HVA624
    BEARING NJ 206 ECP/HN3C4HVA624
  • 6
    77230029000 NUT PRIMARY WHEEL
    NUT PRIMARY WHEEL
  • 7
    0760304772 SH.SEAL RING 30X47X7 BSL VITON
    SH.SEAL RING 30X47X7 BSL VITON
  • 8
    0760405560 SHAFT SEAL RING A40X55X6 VITON
    SHAFT SEAL RING A40X55X6 VITON
  • 9
    77232022000 SPACER BUSHING PRIMARY GEAR
    SPACER BUSHING PRIMARY GEAR
  • 11
    0019050106S INT. TORX FLAT HEAD M5X10 10.9
    INT. TORX FLAT HEAD M5X10 10.9
  • 13
    75030085000 RETAINING PLATE F. CS BEARING
    RETAINING PLATE F. CS BEARING
  • 14
    77339010100 FLYWHEEL SCREW
    FLYWHEEL SCREW
  • 22
    0888030037 WOODRUFF KEY DIN6888-3X3,7
    WOODRUFF KEY DIN6888-3X3,7
  • 23
    77232023024 PRIMARY GEAR 24T.
    PRIMARY GEAR 24T.
  • 33
    77730033200 PISTON PIN
    PISTON PIN
  • 34
    77730074000 CIRCLIP 16X1.4 MM
    CIRCLIP 16X1.4 MM
  • 40
    77730007100I PISTON I CPL.
    PISTON I CPL.
  • 40
    77730007100II PISTON II CPL.
    PISTON II CPL.
  • 41
    77730032000 SCRAPER RING
    SCRAPER RING
  • 42
    77730030000 COMPRESSION RING
    COMPRESSION RING
  • 98
    00050002311 CRANKSHAFT REP. KIT
    CRANKSHAFT REP. KIT
  • 99
    00050000222 PISTON KIT GR.I
    PISTON KIT GR.I
  • 99
    00050000223 PISTON KIT GR.II
    PISTON KIT GR.II
