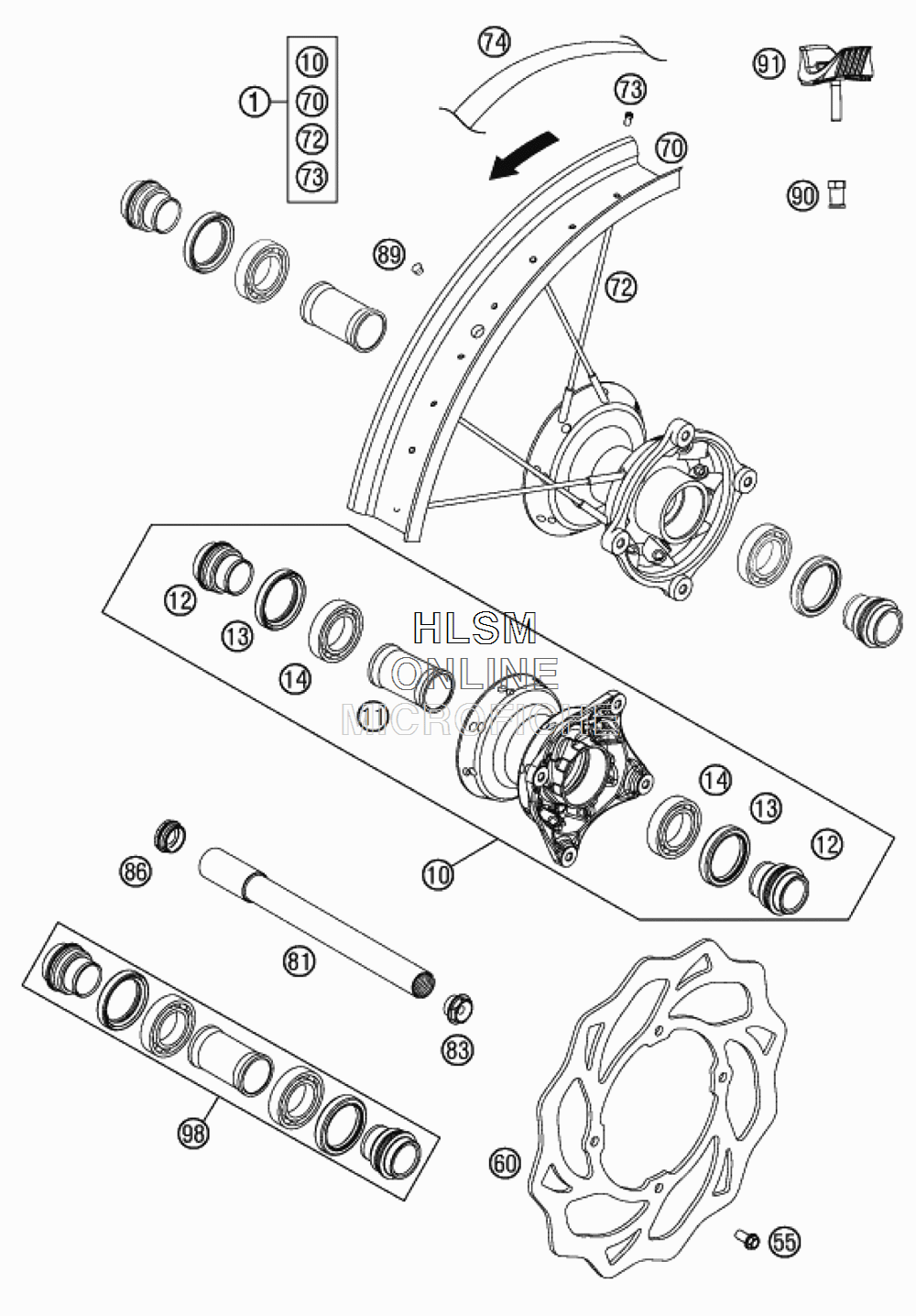

FRONT WHEEL для Ktm 85 SX 19/16 - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    47109001144 FRONT WHEEL CPL. 19"
    FRONT WHEEL CPL. 19"
  • 10
    70009010044 FRONT WHEEL HUB CPL.
    FRONT WHEEL HUB CPL.
  • 11
    70009011000 BEAR.SP ACER TUBE FRONT D22MM
    BEAR.SP ACER TUBE FRONT D22MM
  • 12
    70009012000 SP ACER BUSHING D=22MM
    SP ACER BUSHING D=22MM
  • 13
    0760324271 SHAFT SEAL RING 32X42X7 BSL
    SHAFT SEAL RING 32X42X7 BSL
  • 14
    0625069050 BALL BEARING 6905 J1LLUC3
    BALL BEARING 6905 J1LLUC3
  • 55
    59009062013 SPECIAL SCREW M6X13 WS=8 10.9
    SPECIAL SCREW M6X13 WS=8 10.9
  • 60
    70009060000 BRAKE DISC FRONT
    BRAKE DISC FRONT
  • 70
    47109070100 RIM FRONT AL4 19X1,60-32
    RIM FRONT AL4 19X1,60-32
  • 72
    4710907120630 SPOKE M4,5X206-19" (BLACK)
    SPOKE M4,5X206-19" (BLACK)
  • 73
    77109072000 SPOKE NIPPLE M4,5 AL
    SPOKE NIPPLE M4,5 AL
  • 74
    47009073100 RIM BAND 85 SX 19"
    RIM BAND 85 SX 19"
  • 81
    70009081000 AXLE FRONT D=22
    AXLE FRONT D=22
  • 83
    70009082000 AXLE SCREW M20X1.5; SW17
    AXLE SCREW M20X1.5; SW17
  • 86
    70009081050 PLUG BUSHING SW17
    PLUG BUSHING SW17
  • 89
    55003135000 PLUG FOR RIM
    PLUG FOR RIM
  • 90
    77110090050 NUT FOR WHEEL HOLDER
    NUT FOR WHEEL HOLDER
  • 91
    78109090000 RIM LOCK 1,60"
    RIM LOCK 1,60"
  • 97
    00050000967 SPOKE KIT FRONT "19"
    SPOKE KIT FRONT "19"
  • 98
    70009015000 FRONT WHEEL REP . KIT
    FRONT WHEEL REP . KIT
