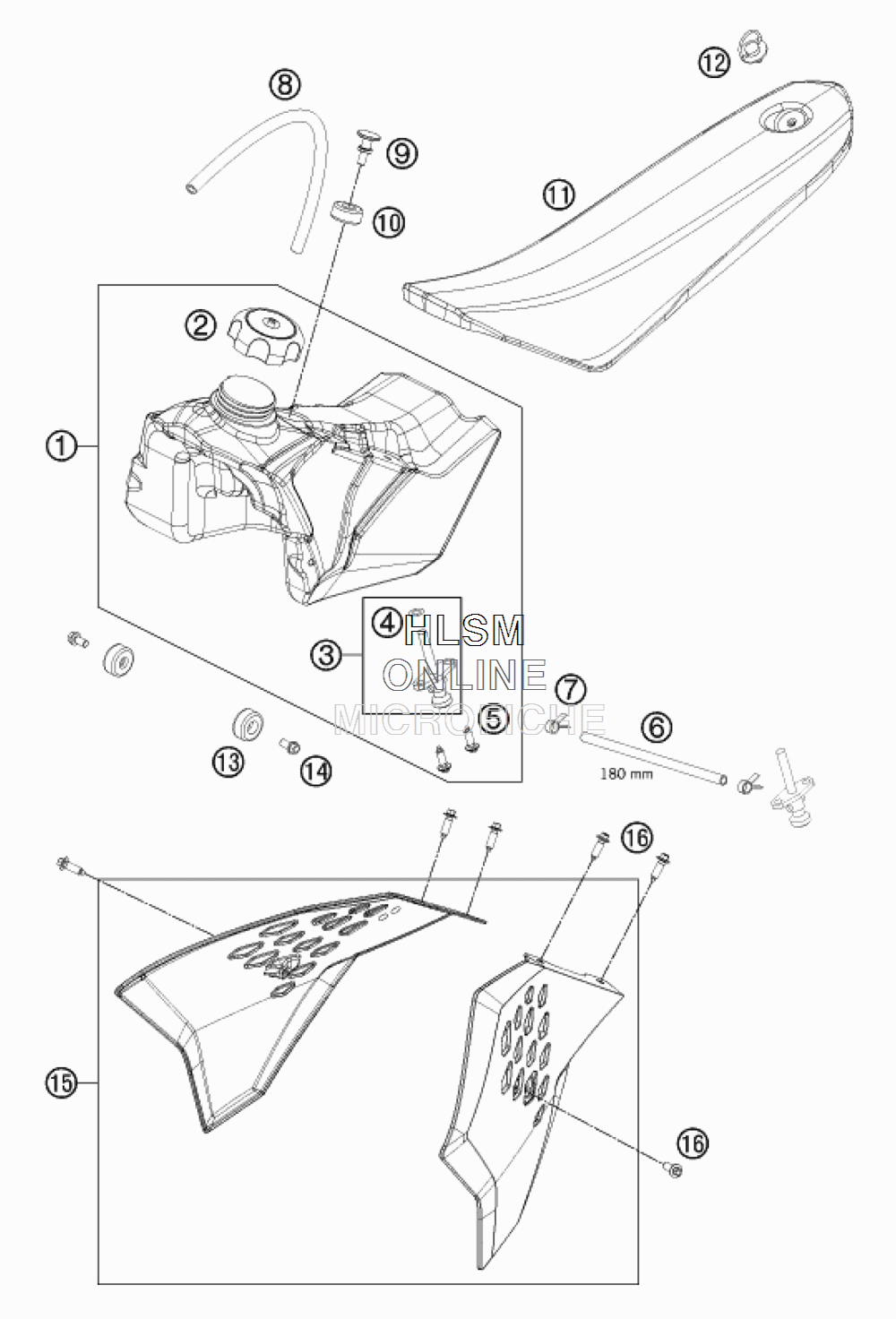

TANK - SEAT - COVER для Ktm 50 SXS - 2015 года выпуска`
-
№АртикулНазвание
-
14520701303330 FUEL T ANK CPL.FUEL T ANK CPL.
-
249007008044 FILLER CAP CPL. SMALLFILLER CAP CPL. SMALL
-
358507003200 FUEL COCK CPL.FUEL COCK CPL.
-
40770020130 O-RING 1,78X10,82X14,38 2-013O-RING 1,78X10,82X14,38 2-013
-
50017060205 SCREW FOR PLASTIC K60X20 SW6SCREW FOR PLASTIC K60X20 SW6
-
658307016001 FUEL HOSE VITON 6X1,5 PER/MFUEL HOSE VITON 6X1,5 PER/M
-
745031005000 YDNAC-C LAMP FUEL HOSE (8MM)YDNAC-C LAMP FUEL HOSE (8MM)
-
878007000270 PVC-HOSE 5,6X10X270M MPVC-HOSE 5,6X10X270M M
-
945107011000 TANK SCREW MINI 50 2001TANK SCREW MINI 50 2001
-
1050307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
1145207040000 SEATSEAT
-
1245007040051 QUICK RELEASE CPL.QUICK RELEASE CPL.
-
1350307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
140025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
154520805400004D SPOILERSET ORANGE DECALSPOILERSET ORANGE DECAL
-
160017060206 SCREW F . PLASTIC K60X20AL SW6SCREW F . PLASTIC K60X20AL SW6
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURATOR
- CLUTCH
- CLUTCH COVER
- CONVERSION KIT
- COOLING SYSTEM
- CRANKSHAFT - PISTON
- CYLINDER CYLINDERHEAD
- DECAL
- ENGINE CASE
- EXHAUST SYSTEM
- FRAME
- FRONT FORK DISASSEMBLED
- FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR CONTROLS
- IGNITION SYSTEM
- KICK STARTER
- MASK FENDER
- MONOSHOCK
- MONOSHOCK DISASSEMBLED
- REAR BRAKE CONTROL
- REAR WHEE
- REED VALVE CASE
- SPAREPARTS SUPPLEMENT
- SWING ARM
- • TANK - SEAT - COVER
- TRANSMISSION
- WATER PUMP
