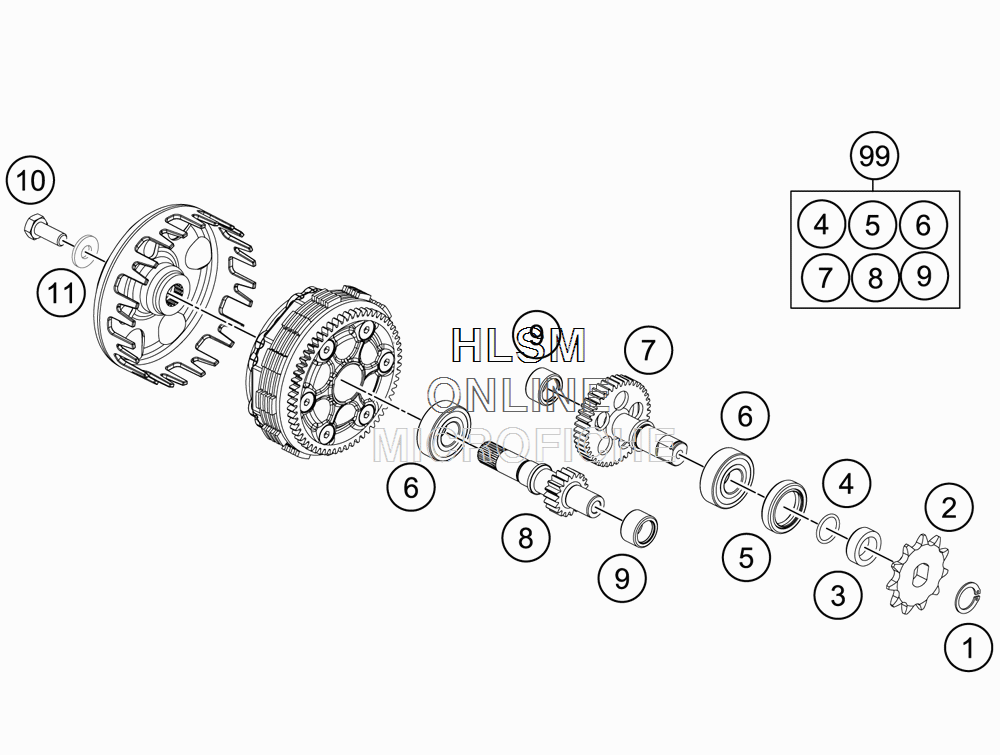

TRANSMISSION для Ktm 50 SXS - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0471150010 CIRCLIP DIN0471-15X1
    CIRCLIP DIN0471-15X1
  • 2
    45233029011 SPROCKET 11 T .
    SPROCKET 11 T .
  • 2
    45233029010 SPROCKET 10 T .
    SPROCKET 10 T .
  • 3
    45233030000 DISANCESP ACER F . SPROCKET
    DISANCESP ACER F . SPROCKET
  • 4
    0770015018 O-RING 15,00X1,80
    O-RING 15,00X1,80
  • 5
    0760223270 SHAFT SEAL RING 22X32X7 BSL
    SHAFT SEAL RING 22X32X7 BSL
  • 6
    45133028000 BALL BEARING 15X35X11
    BALL BEARING 15X35X11
  • 7
    45233010200 COUNTER SHAFT ONLY USE WITH 45233001200
    COUNTER SHAFT ONLY USE WITH 45233001200
  • 8
    45233001200 MAIN SHAFT ONLY USE WITH 45233010200
    MAIN SHAFT ONLY USE WITH 45233010200
  • 9
    54632095000 NEEDLE BEAR.HK 1412 14X20X12
    NEEDLE BEAR.HK 1412 14X20X12
  • 10
    0035080206S AH-COLLAR SCREW M8X20 ISA45
    AH-COLLAR SCREW M8X20 ISA45
  • 11
    0340084234 WASHER DIN 6340 8,4X23X4
    WASHER DIN 6340 8,4X23X4
  • 99
    00050000948 COUNTER SHAFT REP . KIT
    COUNTER SHAFT REP . KIT
