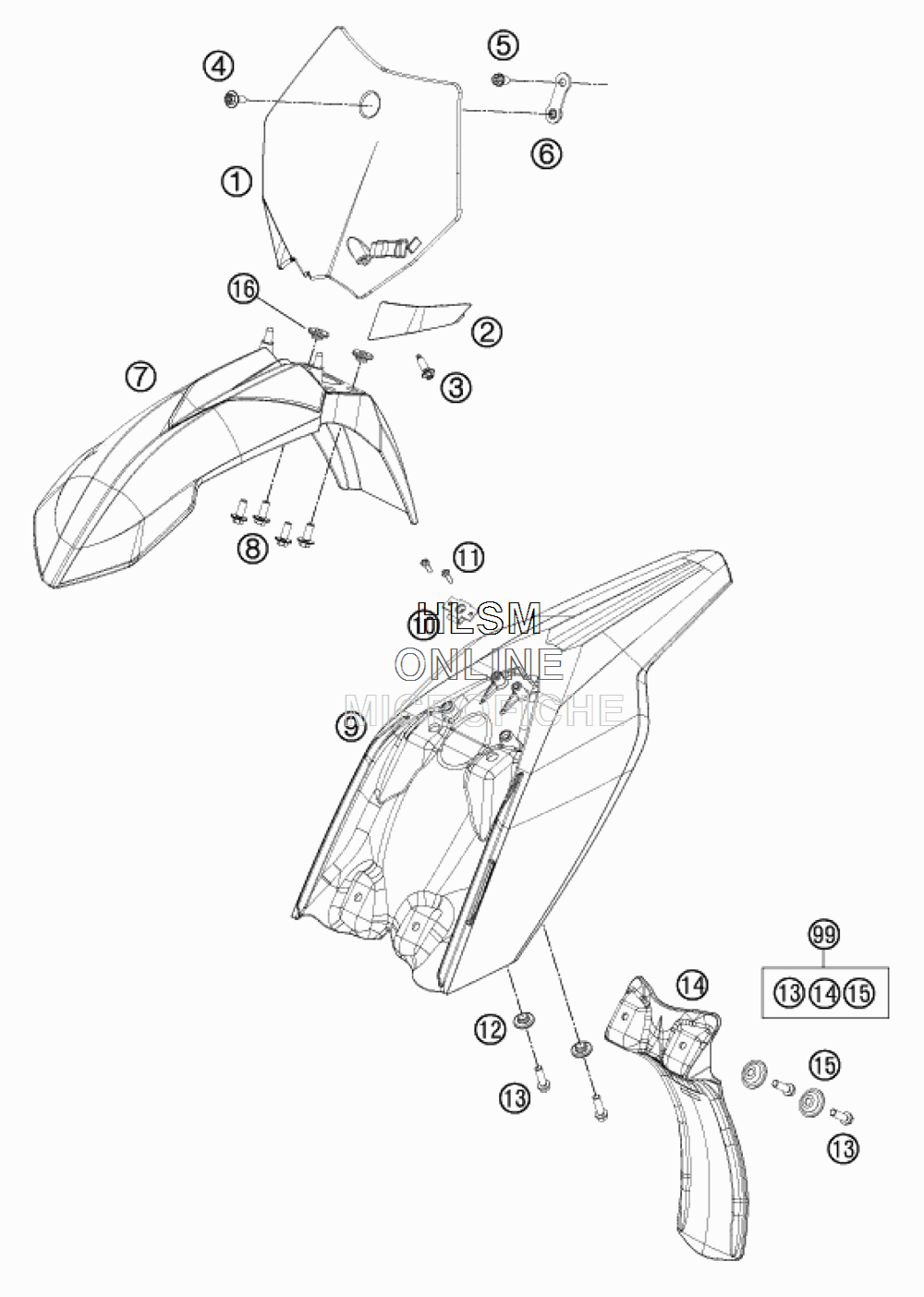

MASK FENDER для Ktm 50 SXS - 2015 года выпуска`
-
№АртикулНазвание
-
14520800700028 START NUMBER PLATESTART NUMBER PLATE
-
24520802200030 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
30017060206 SCREW F . PLASTIC K60X20ALSCREW F . PLASTIC K60X20AL
-
40024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
50025060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
645208007050 RET AINING PLATE F . NUMBER PL.RET AINING PLATE F . NUMBER PL.
-
74520801000004 FENDERFENDER
-
80024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
945208013000X4 REAR PARTREAR PART
-
1045007040050 QUICK RELEASE LATCHPLATEQUICK RELEASE LATCHPLATE
-
110981350163 SHEET MET .SCR.DIN7981- 3,5X16SHEET MET .SCR.DIN7981- 3,5X16
-
1254808020000 SPACER BUSHINGSPACER BUSHING
-
130025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
1445206010000 SPLASH PROTECTIONSPLASH PROTECTION
-
1572210079000 BUCKETBUCKET
-
1650213161000 COLLAR BUSHINGCOLLAR BUSHING
-
9945206010010 SPLASH PROTECTOR KIT W/ DECALSPLASH PROTECTOR KIT W/ DECAL
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURATOR
- CLUTCH
- CLUTCH COVER
- CONVERSION KIT
- COOLING SYSTEM
- CRANKSHAFT - PISTON
- CYLINDER CYLINDERHEAD
- DECAL
- ENGINE CASE
- EXHAUST SYSTEM
- FRAME
- FRONT FORK DISASSEMBLED
- FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR CONTROLS
- IGNITION SYSTEM
- KICK STARTER
- • MASK FENDER
- MONOSHOCK
- MONOSHOCK DISASSEMBLED
- REAR BRAKE CONTROL
- REAR WHEE
- REED VALVE CASE
- SPAREPARTS SUPPLEMENT
- SWING ARM
- TANK - SEAT - COVER
- TRANSMISSION
- WATER PUMP
