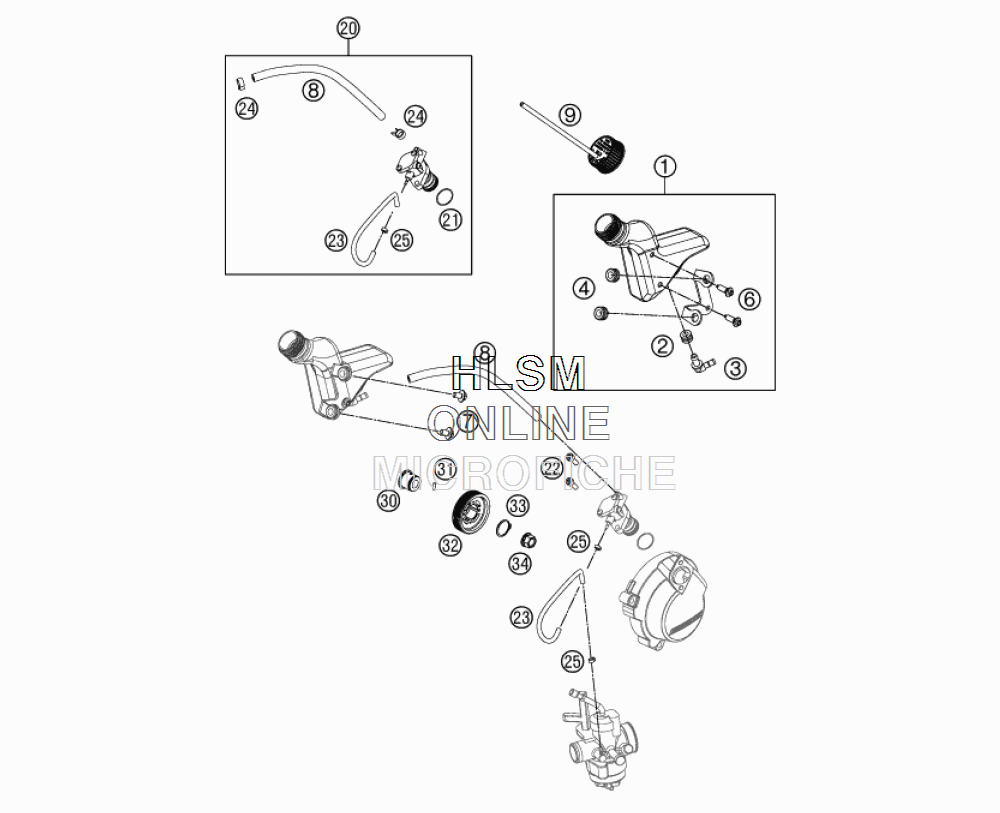

LUBRICATING SYSTEM для Ktm 50 SX MINI - 2015 года выпуска`
-
№АртикулНазвание
-
145238061133 OIL TANK CPL.OIL TANK CPL.
-
260035069000 RUBBER GROMMET 6X9X13MMRUBBER GROMMET 6X9X13MM
-
360035068000 ANGLE CONNECTION EXPANS. TANKANGLE CONNECTION EXPANS. TANK
-
431008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
60017060205 SCREW FOR PLASTIC K60X20 SW6SCREW FOR PLASTIC K60X20 SW6
-
70024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
845138067000 HOSE 5X9MMHOSE 5X9MM
-
945238063033 OIL TANK SCREW SX MINIOIL TANK SCREW SX MINI
-
2045138067100 OIL PUMPOIL PUMP
-
210770191016 O-RING 19,10X1,60 NBR 70O-RING 19,10X1,60 NBR 70
-
220912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
2345138068000 PREFORM. HOSE CARB.-PUMP 2X5MMPREFORM. HOSE CARB.-PUMP 2X5MM
-
2458007017000 YDNAC CLAMP 10101 (10,4MM)YDNAC CLAMP 10101 (10,4MM)
-
2545138069000 CLAMP 5 FOR OIL PUMPCLAMP 5 FOR OIL PUMP
-
3045138064000 SPACER FOR OIL PUMP GEARSPACER FOR OIL PUMP GEAR
-
310402030780 NEEDLE PIN DIN5402 NRB3X7,8 G2NEEDLE PIN DIN5402 NRB3X7,8 G2
-
3245238065000 OIL PUMP DRIVE WHEELOIL PUMP DRIVE WHEEL
-
330471190120 CIRCLIP DIN0471-19X1 ,2CIRCLIP DIN0471-19X1 ,2
-
3458414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
