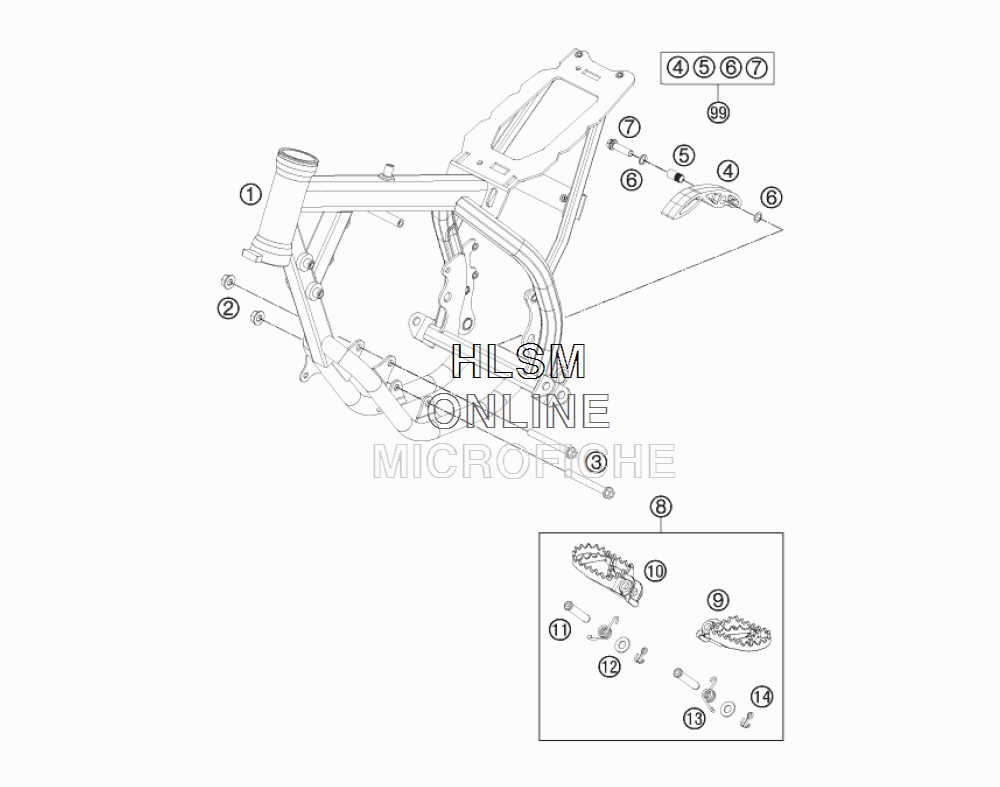

FRAME для Ktm 50 SX MINI - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    45203001400BE FRAME (BLACK M.) "452L5"
    FRAME (BLACK M.) "452L5"
  • 2
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 3
    0025080656 HH COLLAR SCREW M8X65 TX40
    HH COLLAR SCREW M8X65 TX40
  • 4
    51103053000 CHAIN SLIDING PIECE BELOW
    CHAIN SLIDING PIECE BELOW
  • 5
    51103053051 BUSHING 8,2X10X20
    BUSHING 8,2X10X20
  • 6
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 7
    0025080306 HH COLLAR SCREW M8X30 TX40
    HH COLLAR SCREW M8X30 TX40
  • 8
    47103040033 FOOTREST CPL. 14
    FOOTREST CPL. 14
  • 9
    47103040000 FOOTREST L/S
    FOOTREST L/S
  • 10
    47103041000 FOOTREST R/S
    FOOTREST R/S
  • 11
    54803044000 PIN FOR FOOT PED 51.5X9.8 MM
    PIN FOR FOOT PED 51.5X9.8 MM
  • 12
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 13
    54603041000 FOOTREST SPRING L/S & R/S
    FOOTREST SPRING L/S & R/S
  • 14
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 99
    51103053110 CHAIN SLIDING KIT BELOW MINI
    CHAIN SLIDING KIT BELOW MINI
