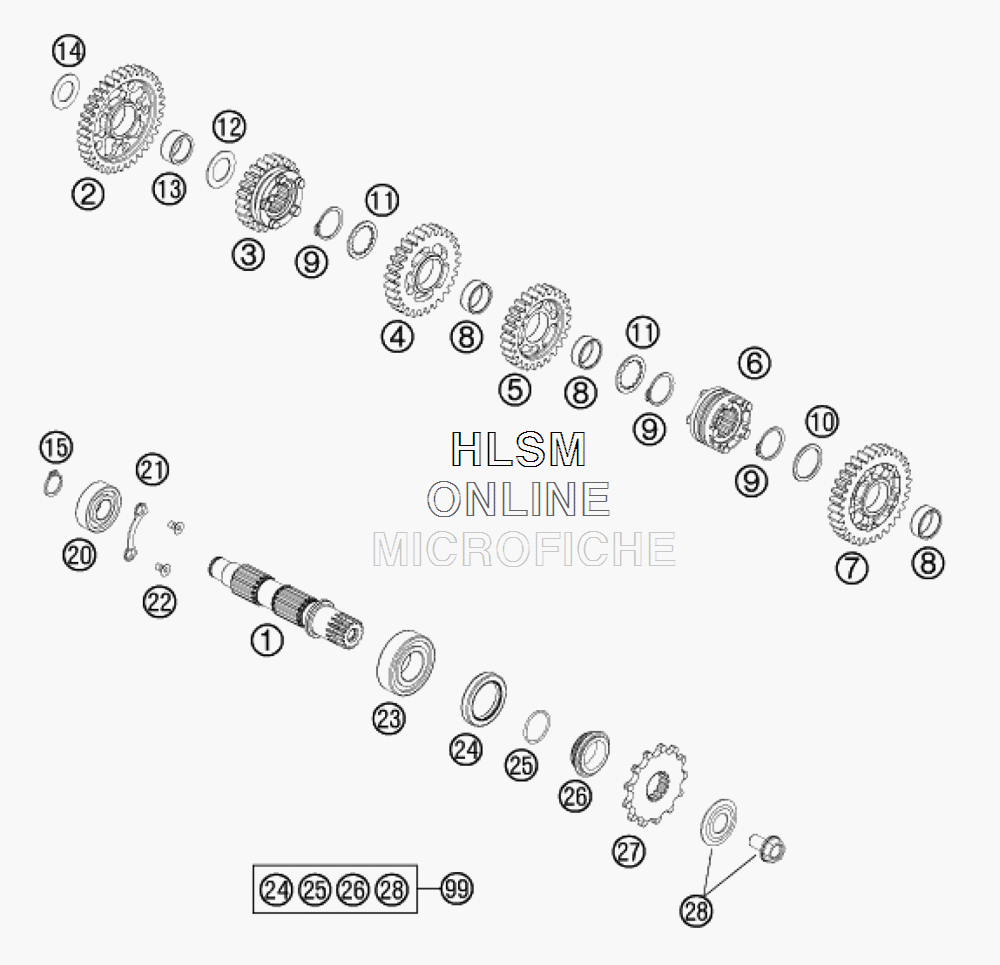

TRANSMISSION - COUNTERSHAFT для Ktm 450 SXF - 2015 года выпуска`

№

Артикул

Название
1

78033010000 COUNTERSHAFT

COUNTERSHAFT

23 100 ₽
2

78933011000 IDLER GEAR 1.G.

IDLER GEAR 1.G.

22 460 ₽
3

78933015000 SLIDING GEAR 5.G.

SLIDING GEAR 5.G.

21 150 ₽
4

78933013000 IDLER GEAR 3.G.

IDLER GEAR 3.G.

22 110 ₽
5

78933014000 IDLER GEAR 4.G.

IDLER GEAR 4.G.

21 320 ₽
6

78933018000 SHIFT COLLAR

SHIFT COLLAR

24 680 ₽
7

78933012000 IDLER GEAR 2.G.

IDLER GEAR 2.G.

21 960 ₽
8

0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED

NEEDLE BEAR.K 22X26X10 DIVIDED

3 130 ₽
9

0471250120 CIRCLIP DIN0471-25X1 ,2

CIRCLIP DIN0471-25X1 ,2

290 ₽
10

78033031000 STOP DISK 26 X 32 X 1,5

STOP DISK 26 X 32 X 1,5

640 ₽
11

78033033000 STOP DISK 23 X 32 X 1,5

STOP DISK 23 X 32 X 1,5

640 ₽
12

59033080000 SHIM 20X32X1

SHIM 20X32X1

440 ₽
13

0405202612 NEEDLE BEARING K 20X26X12

NEEDLE BEARING K 20X26X12

2 950 ₽
14

56033030000 STOP DISC 17,2X30X1

STOP DISC 17,2X30X1

970 ₽
15

0471170015 CIRCLIP DIN 0471-17X1, 5

CIRCLIP DIN 0471-17X1, 5

210 ₽
20

0625062035 BALL BEARING 6203 JR2 C3

BALL BEARING 6203 JR2 C3

3 890 ₽
21

78033132000 TAB WASHER BEARING COUNTERSHAFT

TAB WASHER BEARING COUNTERSHAFT

1 140 ₽
22

0019050106S INT . TORX FLAT HEAD M5X10 10.9

INT . TORX FLAT HEAD M5X10 10.9

290 ₽
23

49030023000 CYL.ROLL BEARING NJ205

CYL.ROLL BEARING NJ205

20 130 ₽
24

0760324571 SHAFT SEAL RING 32X45X7 BSLNBR

SHAFT SEAL RING 32X45X7 BSLNBR

1 140 ₽
25

0770020220 O-RING 25,12X1,78 NBR70

O-RING 25,12X1,78 NBR70

590 ₽
26

78133014000 SPACER SLEEVE COUNTER

SPACER SLEEVE COUNTER

7 650 ₽
27

50033029013 FRONT SPROCKET 13-T

FRONT SPROCKET 13-T

8 110 ₽
27

50033029014 FRONT SPROCKET 14-T

FRONT SPROCKET 14-T

8 110 ₽
27

50033029015 FRONT SPROCKET 15-T

FRONT SPROCKET 15-T

7 100 ₽
28

59033034044 SCREW 10.9+SPRING WASHER

SCREW 10.9+SPRING WASHER

2 050 ₽
99

00050000941 COUNTERSHAFT REP .KIT 4 STROKE

COUNTERSHAFT REP .KIT 4 STROKE

8 040 ₽
