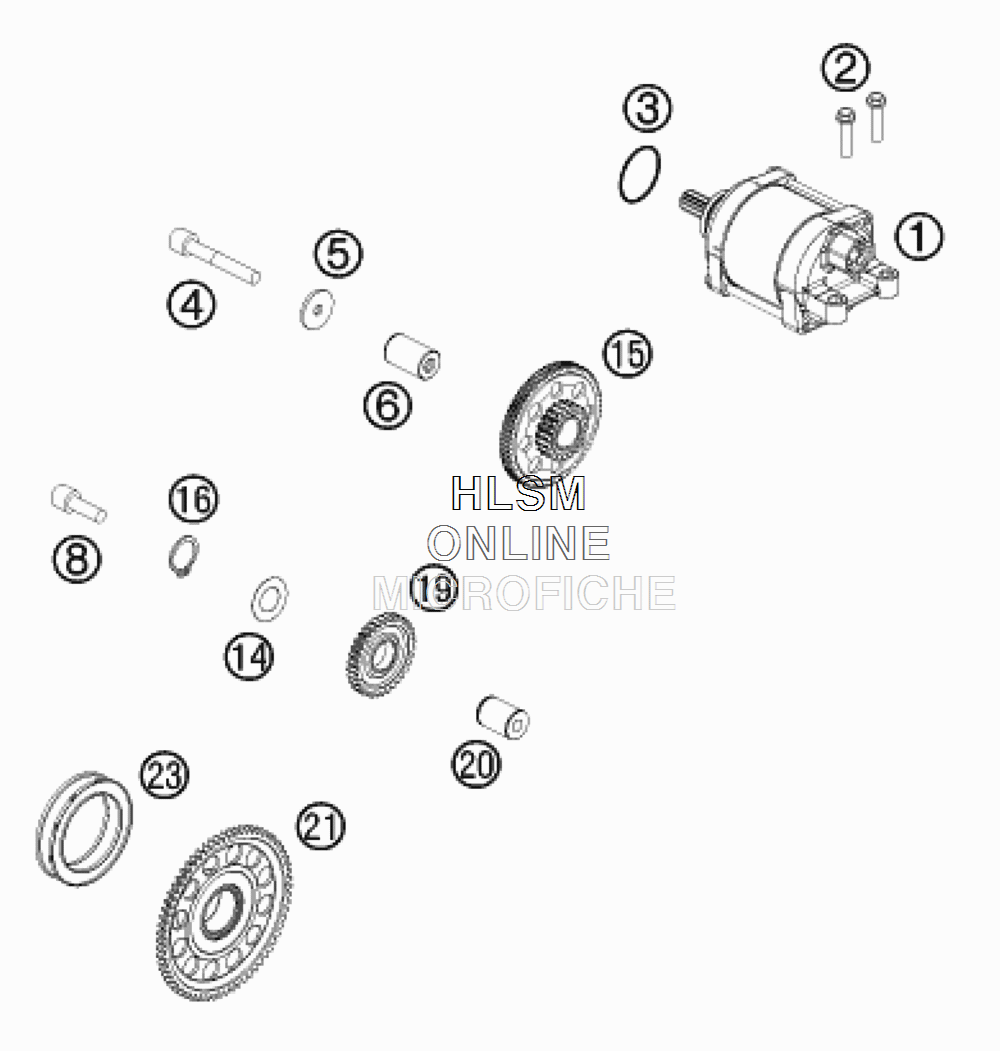

ELECTRIC STARTER для Ktm 450 SXF - 2015 года выпуска`
-
№АртикулНазвание
-
178140001000 E-STARTER CPL. 0,5KWE-STARTER CPL. 0,5KW
-
20025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
30770250030 O-RING 25,00X3,00 NBR 70O-RING 25,00X3,00 NBR 70
-
40912060404 AH SCREW DIN0912-M 6X40 A2AH SCREW DIN0912-M 6X40 A2
-
578040016004 STOP DISC 6X23X2STOP DISC 6X23X2
-
678040029000 BEARING BOLTBEARING BOLT
-
80912060208 AH SCREW DIN0912-M 6X20 SSAH SCREW DIN0912-M 6X20 SS
-
140988172405 SHIM WASHER DIN0988-17X2 4X0,5SHIM WASHER DIN0988-17X2 4X0,5
-
1578040016100 TORQUE LIMITER CPL.TORQUE LIMITER CPL.
-
160471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
1978940022000 IDLER GEAR 30-T CPL.IDLER GEAR 30-T CPL.
-
2078040028000 BUSHING PINBUSHING PIN
-
2178940020033 FREE WHEEL GEAR 66 C CPL.FREE WHEEL GEAR 66 C CPL.
-
2375040026000 FREE WHEELFREE WHEEL
