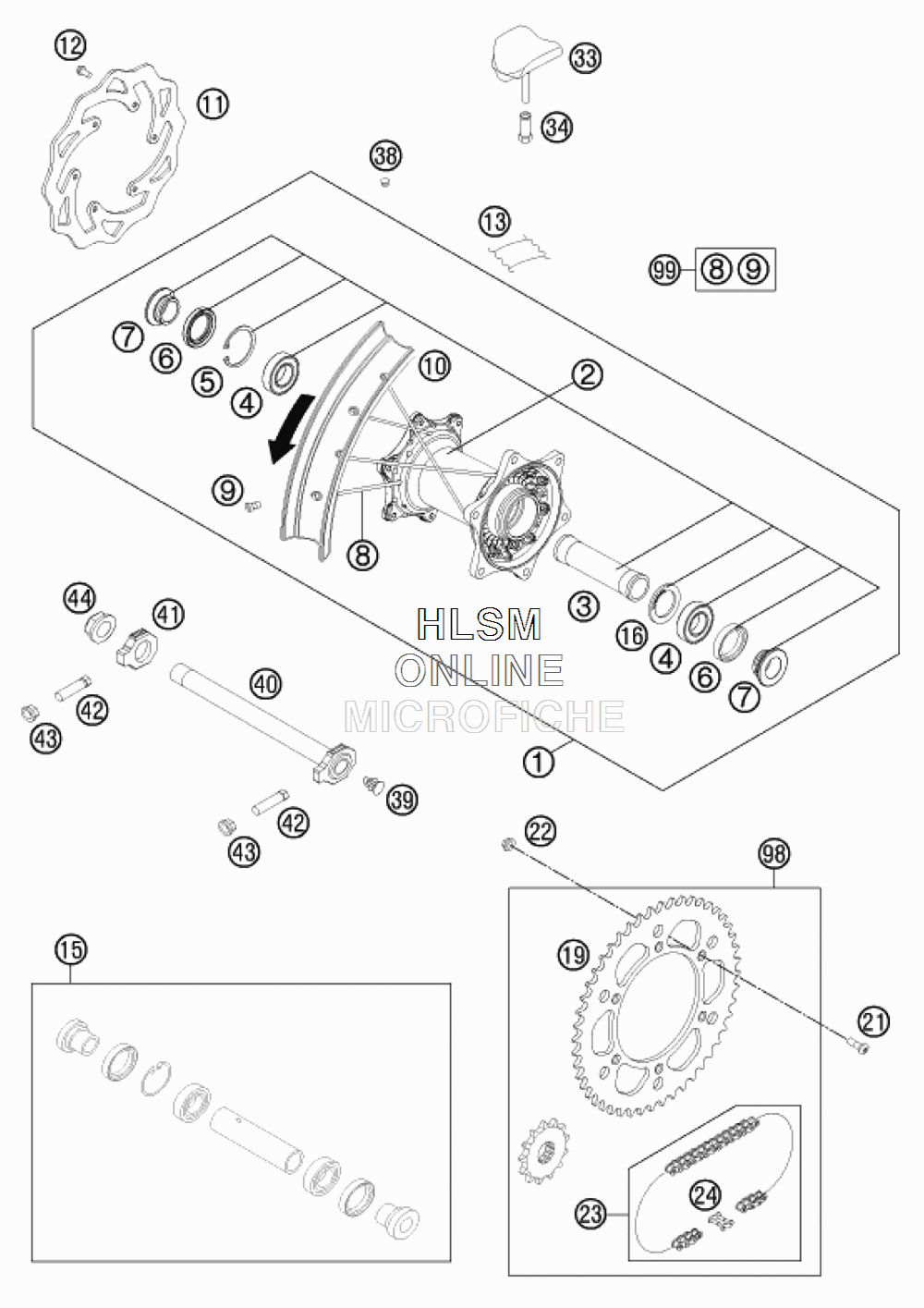

REAR WHEEL для Ktm 300 XC - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    7811000104430 REAR WHEEL 2,15X18"(BLACK) SD
    REAR WHEEL 2,15X18"(BLACK) SD
  • 2
    78010010244 REAR WHEEL HUB CPL.
    REAR WHEEL HUB CPL.
  • 3
    77710011000 BEARING DISTANCE TUBE 121,5MM
    BEARING DISTANCE TUBE 121,5MM
  • 4
    0625060058 GR.BALL BEAR.6005 DDU2CG23 S6NM
    GR.BALL BEAR.6005 DDU2CG23 S6NM
  • 5
    0472047175 CIRCLIP DIN0472-47X1 ,75
    CIRCLIP DIN0472-47X1 ,75
  • 6
    0760324771 SHAFT SEAL RING 32X47X7 BSL
    SHAFT SEAL RING 32X47X7 BSL
  • 7
    77710016000 DIST ANCE BUSHING REAR WHEEL
    DIST ANCE BUSHING REAR WHEEL
  • 8
    7711007119330 SPOKE M4,5X193- 18" (BLACK)
    SPOKE M4,5X193- 18" (BLACK)
  • 9
    77109072000 SPOKE NIPPLE M4,5 AL
    SPOKE NIPPLE M4,5 AL
  • 10
    7811007000030 % RIM REAR 2,15X18" (BLACK)
    % RIM REAR 2,15X18" (BLACK)
  • 11
    77310060000 BRAKE DISC REAR 220
    BRAKE DISC REAR 220
  • 12
    59009062013 SPECIAL SCREW M6X13 WS=8 10.9
    SPECIAL SCREW M6X13 WS=8 10.9
  • 13
    50310073200 RIM BAND 18" AND 19"
    RIM BAND 18" AND 19"
  • 15
    78010015000 REAR WHEEL REP . KIT
    REAR WHEEL REP . KIT
  • 16
    77710015000 DISTANCE RING
    DISTANCE RING
  • 19
    7771015104801 REAR SPROCKET 48-T
    REAR SPROCKET 48-T
  • 19
    7771015105001 REAR SPROCKET 50-T (STD)
    REAR SPROCKET 50-T (STD)
  • 19
    7771015105201 REAR SPROCKET 52-T
    REAR SPROCKET 52-T
  • 21
    0019080266S COUNTER -SUNK SCREW ISA45 M8X26
    COUNTER -SUNK SCREW ISA45 M8X26
  • 22
    06923080003 HEXAGON NUT DIN EN1661 M8 SW13
    HEXAGON NUT DIN EN1661 M8 SW13
  • 23
    78010167118 CHAIN DID 118 ROLLS
    CHAIN DID 118 ROLLS
  • 24
    78010166000 CONNECTING LINK F . 780101671 18
    CONNECTING LINK F . 780101671 18
  • 33
    78110090000 RIM LOCK 2,15"
    RIM LOCK 2,15"
  • 34
    77110090050 NUT FOR WHEEL HOLDER
    NUT FOR WHEEL HOLDER
  • 38
    55003135000 PLUG FOR RIM
    PLUG FOR RIM
  • 39
    50210086000 COVERING CAP SFL16
    COVERING CAP SFL16
  • 40
    77710085044 WHEEL SPINDLE CPL.
    WHEEL SPINDLE CPL.
  • 41
    77710084000 CHAIN TENSIONER R/S
    CHAIN TENSIONER R/S
  • 42
    50304040100 SCREW M10X1,25X50 WS=10
    SCREW M10X1,25X50 WS=10
  • 43
    58414030000 HH COLLAR NUT M10X1,25 WS=13
    HH COLLAR NUT M10X1,25 WS=13
  • 44
    61010086000 COLLAR NUT M25X1,5 WS=32
    COLLAR NUT M25X1,5 WS=32
  • 98
    00050002039 DRIVE TRAIN KIT EXC 13T/50T
    DRIVE TRAIN KIT EXC 13T/50T
  • 99
    00050000958 SPOKE KIT REAR 18" (BLACK)
    SPOKE KIT REAR 18" (BLACK)
