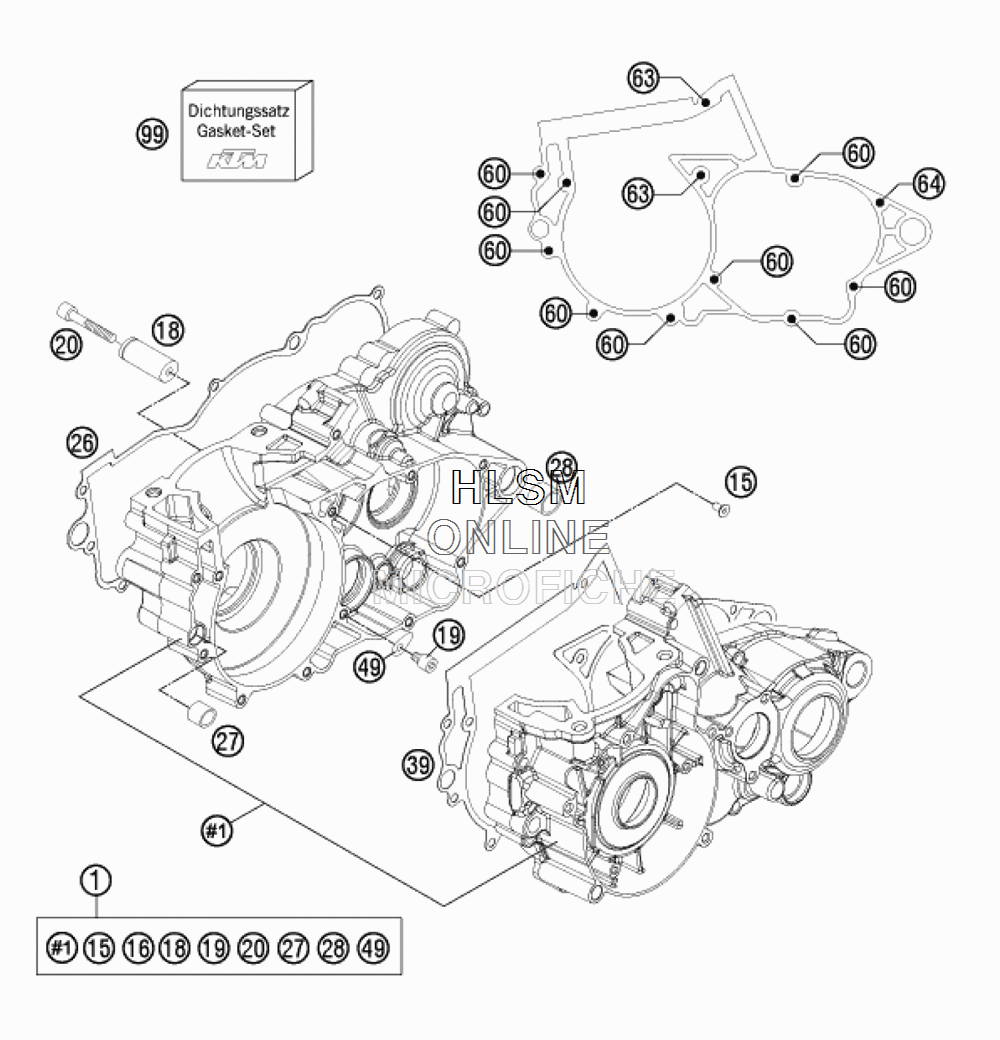

ENGINE CASE для Ktm 300 XC - 2015 года выпуска
-
№АртикулНазвание
-
155130000344 ENGINE CASE CPL.ENGINE CASE CPL.
-
150025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
1650232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
-
1859033018000 BUSHING PINBUSHING PIN
-
190912060123 AH SCREW DIN0912-M 6X12AH SCREW DIN0912-M 6X12
-
200912060404 AH SCREW DIN0912-M 6X40 A2AH SCREW DIN0912-M 6X40 A2
-
2654830024100 CLUTCH COVER GASKET INSIDECLUTCH COVER GASKET INSIDE
-
2754630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
2854830027000 DOWEL 21X12 03DOWEL 21X12 03
-
3954830039000 ENGINE CASE GASKETENGINE CASE GASKET
-
4954634049000 RETAINING PLATERETAINING PLATE
-
600025060406 HH COLLAR SCREW M6X40 TX30HH COLLAR SCREW M6X40 TX30
-
630025060556 HH COLLAR SCREW M6X55 TX30HH COLLAR SCREW M6X55 TX30
-
640025060606 HH COLLAR SCREW M6X60 TX30HH COLLAR SCREW M6X60 TX30
-
9955130099000 GASKET SETGASKET SET
