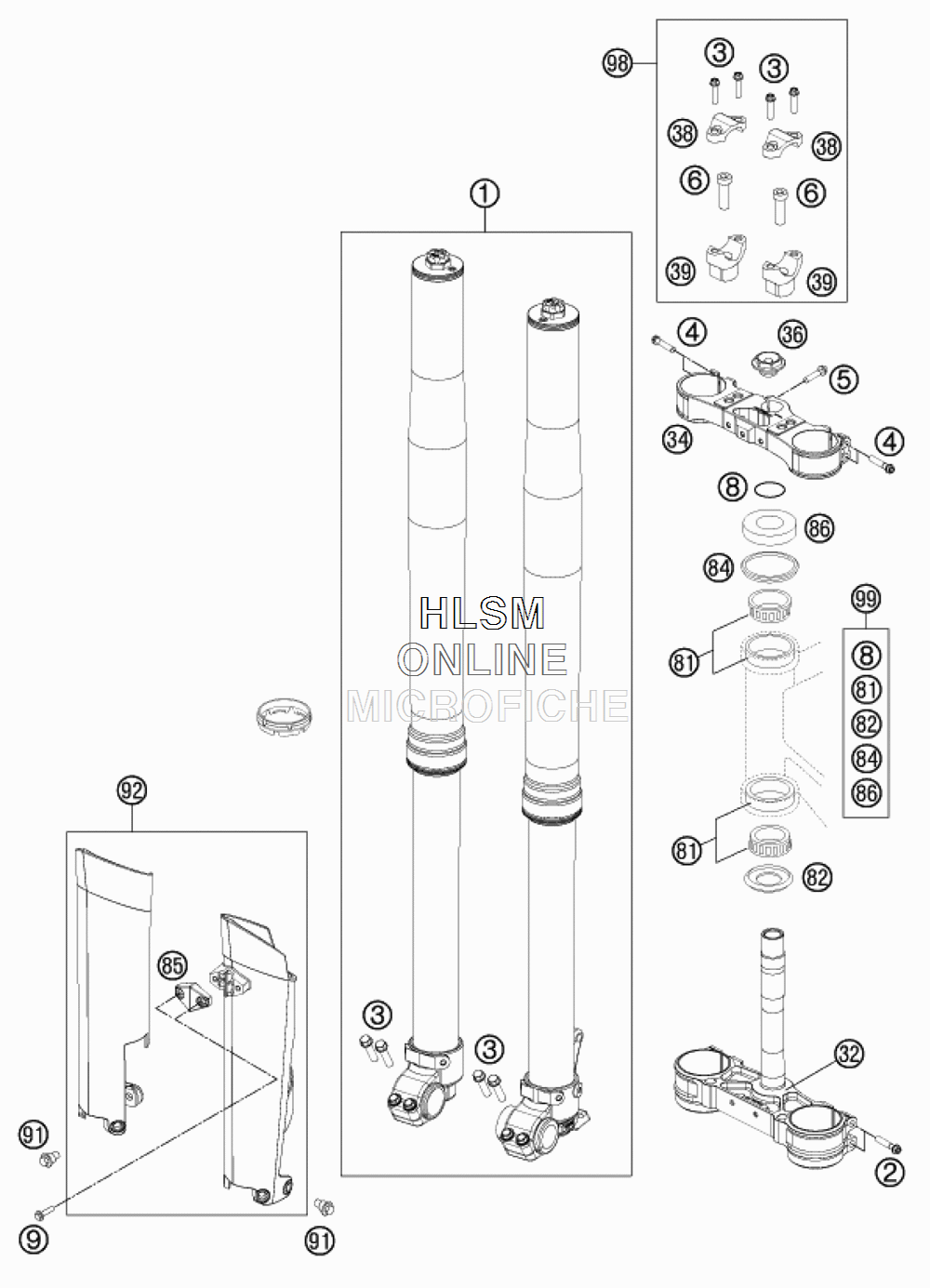

FRONT FORK - TRIPLE CLAMP для Ktm 250 XCF - 2015 года выпуска`
-
№АртикулНазвание
-
12418707501 FORKFORK
-
20025080506 HH COLLAR SCREW M8X50 TX40HH COLLAR SCREW M8X50 TX40
-
30025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
40025080406 HH COLLAR SCREW M8X40 TX40HH COLLAR SCREW M8X40 TX40
-
50025080256S HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
60032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
80770025035 O-RING 25X3,55 NBR70O-RING 25X3,55 NBR70
-
90017060206 SCREW F . PLASTIC K60X20AL SW6SCREW F . PLASTIC K60X20AL SW6
-
327770103212230 BOTTOM TRIPLE CLAMP CPL.BOTTOM TRIPLE CLAMP CPL.
-
347770103412230 TOP FORK PLATE X=22MM (BLACK)TOP FORK PLATE X=22MM (BLACK)
-
3654801036000 STEER.HEAD SCREW M20X1,5 WS=27STEER.HEAD SCREW M20X1,5 WS=27
-
3877201038100 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
3959401039032 HANDLEB .SUPP . D=28MM H=32MMHANDLEB .SUPP . D=28MM H=32MM
-
3959401039037 HANDLEB .SUPP . D=28MM H=37MM (STD)HANDLEB .SUPP . D=28MM H=37MM (STD)
-
3959401039042 HANDLEB .SUPP . D=28MM H=42MMHANDLEB .SUPP . D=28MM H=42MM
-
8154201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
8277701084000 O-RING SUPPORT W . SEALING LIPO-RING SUPPORT W . SEALING LIP
-
8454601184000 STEERING HEAD GASKET TOPSTEERING HEAD GASKET TOP
-
857800108500028 CLAMP F . SPEED. CABLE D=6MMCLAMP F . SPEED. CABLE D=6MM
-
8678101086000 STEERING HEAD COVERSTEERING HEAD COVER
-
9159001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
927800109420028 FORK PROTECTION L/S+R/S (WHITE)FORK PROTECTION L/S+R/S (WHITE)
-
9800050000921 HANDLEBAR SUPPORT KIT D28/H37HANDLEBAR SUPPORT KIT D28/H37
-
9900050000930 STEERING HEAD REP. KITSTEERING HEAD REP. KIT
