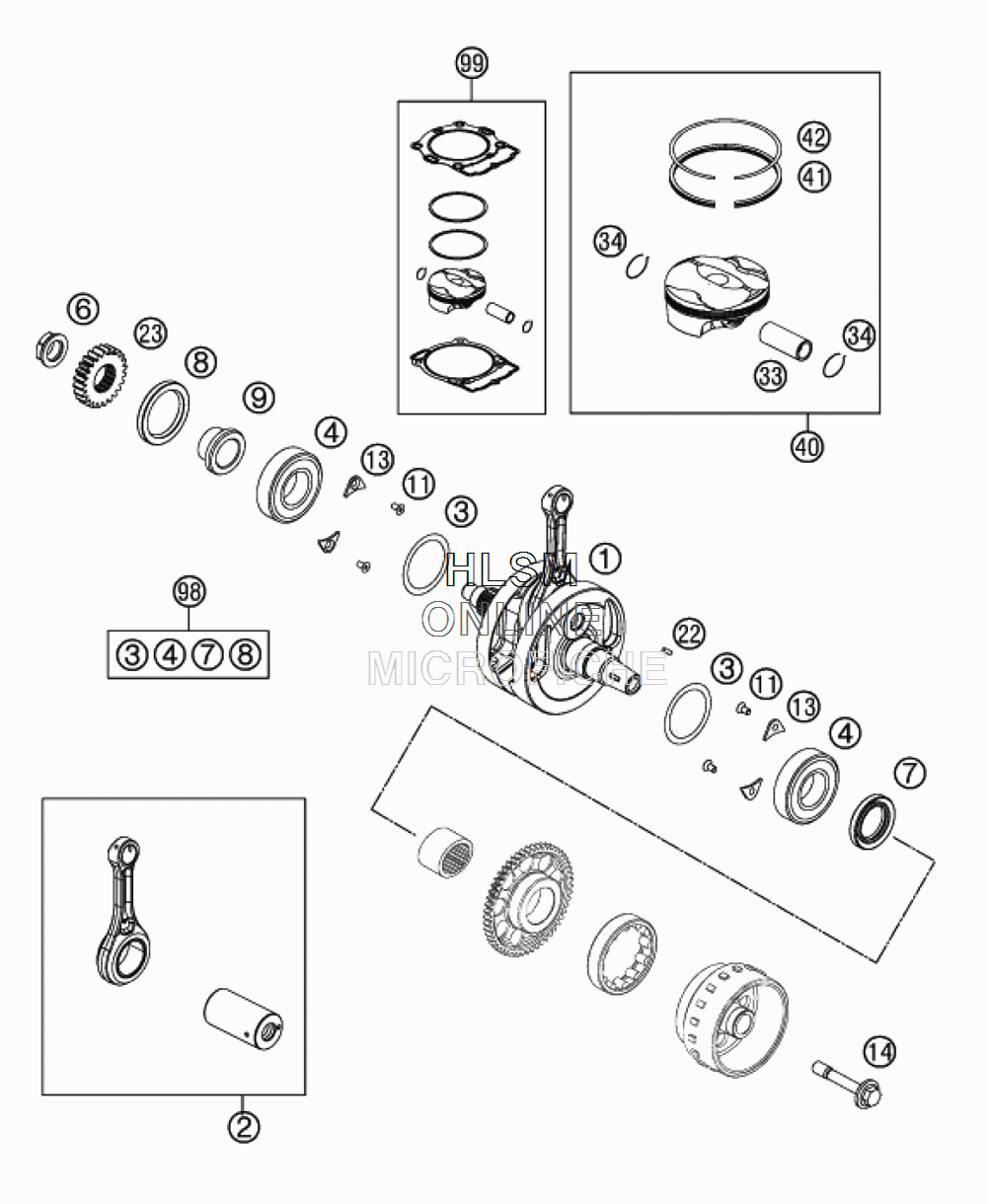

CRANKSHAFT - PISTON для Ktm 250 XCF - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    77730018100 CRANKSHAFT CPL.
    CRANKSHAFT CPL.
  • 2
    77730015144 CONNECTING ROD REPAIR SET
    CONNECTING ROD REPAIR SET
  • 3
    0988324510 THRUST WASHER 988ST 32X0,1
    THRUST WASHER 988ST 32X0,1
  • 3
    0988324515 THRUST WASHER 988ST 32X0,15
    THRUST WASHER 988ST 32X0,15
  • 3
    0988324530 THRUST WASHER 988ST 32X0,30
    THRUST WASHER 988ST 32X0,30
  • 4
    77330082200 BEARING NJ 206 ECP/HN3C4HV A624
    BEARING NJ 206 ECP/HN3C4HV A624
  • 6
    77230029000 NUT PRIMARY WHEEL
    NUT PRIMARY WHEEL
  • 7
    0760304772 SH.SEAL RING 30X47X7 BSL VITON
    SH.SEAL RING 30X47X7 BSL VITON
  • 8
    0760405560 SHAFT SEAL RING A40X55X6 VITON
    SHAFT SEAL RING A40X55X6 VITON
  • 9
    77232022000 SPACER BUSHING PRIMAR Y GEAR
    SPACER BUSHING PRIMAR Y GEAR
  • 11
    0019050106S INT . TORX FLAT HEAD M5X10 10.9
    INT . TORX FLAT HEAD M5X10 10.9
  • 13
    75030085000 RETAINING PLATE F . CS BEARING
    RETAINING PLATE F . CS BEARING
  • 14
    77339010100 FL YWHEEL SCREW
    FL YWHEEL SCREW
  • 22
    0888030037 WOODRUFF KEY DIN6888-3X3,7
    WOODRUFF KEY DIN6888-3X3,7
  • 23
    77232023024 PRIMARY GEAR 24T.
    PRIMARY GEAR 24T.
  • 33
    77730033200 PISTON PIN
    PISTON PIN
  • 34
    77730074000 CIRCLIP
    CIRCLIP
  • 40
    77730007100I PISTON I CPL. 250
    PISTON I CPL. 250
  • 40
    77730007100II PISTON II CPL. 250
    PISTON II CPL. 250
  • 41
    77730032000 SCRAPER RING 250
    SCRAPER RING 250
  • 42
    77730030000 COMPRESSION RING 250
    COMPRESSION RING 250
  • 98
    00050002311 CRANKSHAFT REP . KIT SX-F 13-14
    CRANKSHAFT REP . KIT SX-F 13-14
  • 99
    00050000222 PISTON KIT GR. I
    PISTON KIT GR. I
  • 99
    00050000223 PISTON KIT GR. II
    PISTON KIT GR. II
