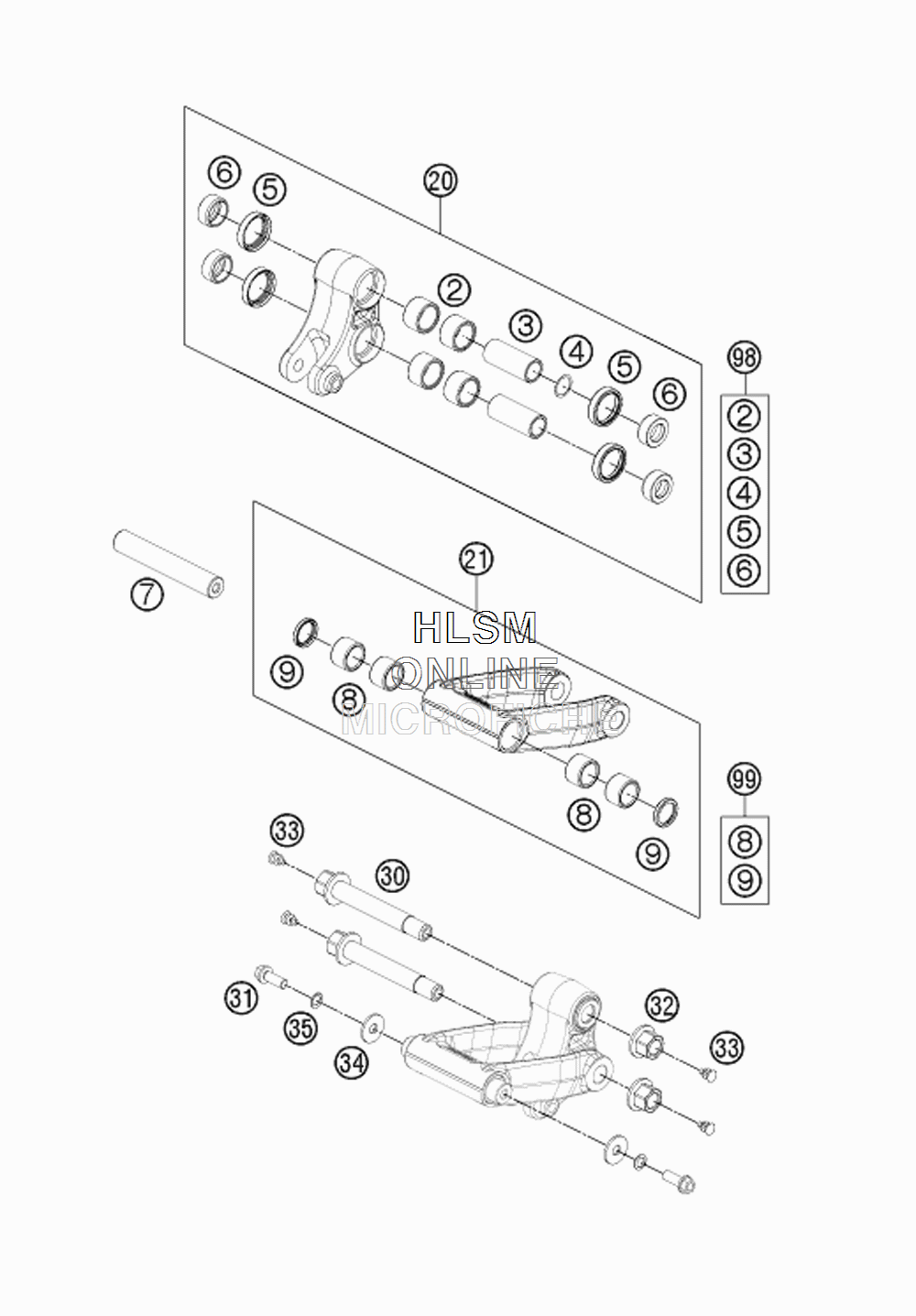

PRO LEVER LINKING для Ktm 690 ENDURO ABS - 2014 года выпуска`
-
№АртикулНазвание
-
254603097000 NEEDLE BUSHHKNEEDLE BUSHHK
-
354603081000 BUSHING SLEEVE 15X 20X 48BUSHING SLEEVE 15X 20X 48
-
454603090010 STEEL WASHER 15,2X19X0,1STEEL WASHER 15,2X19X0,1
-
454603090020 STEEL WASHER 15,2X19X0,2STEEL WASHER 15,2X19X0,2
-
454603090030 STEEL WASHER 15,2X19X0,3STEEL WASHER 15,2X19X0,3
-
50760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
676504089000 BUCKET FOR SHAFT SEAL RINGBUCKET FOR SHAFT SEAL RING
-
776504084000 PULL ROD ANCHOR BOLTPULL ROD ANCHOR BOLT
-
856503195100 NEEDLE BEARING HK 1816NEEDLE BEARING HK 1816
-
90760182442 SHAFT SEAL RING 18X24X4SHAFT SEAL RING 18X24X4
-
207650408104401 CANTILEVER CPL.CANTILEVER CPL.
-
217650408304401 PULL ROD CPL.PULL ROD CPL.
-
3076504082044 BOLT CPL. M14X1,5BOLT CPL. M14X1,5
-
310025080166S HH COLLAR SCREW M8X16 TX40HH COLLAR SCREW M8X16 TX40
-
3254603015000 SELF LOCKING NUT M14X1,5 WS=19SELF LOCKING NUT M14X1,5 WS=19
-
3354403135000 PLASTIC CAP SFL10PLASTIC CAP SFL10
-
340021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
3536003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
9876504080100 TRIANGLE LEVER REP. KIT REARTRIANGLE LEVER REP. KIT REAR
-
9976504083010 PULL ROD REP. KIT 690 END/SMCPULL ROD REP. KIT 690 END/SMC
