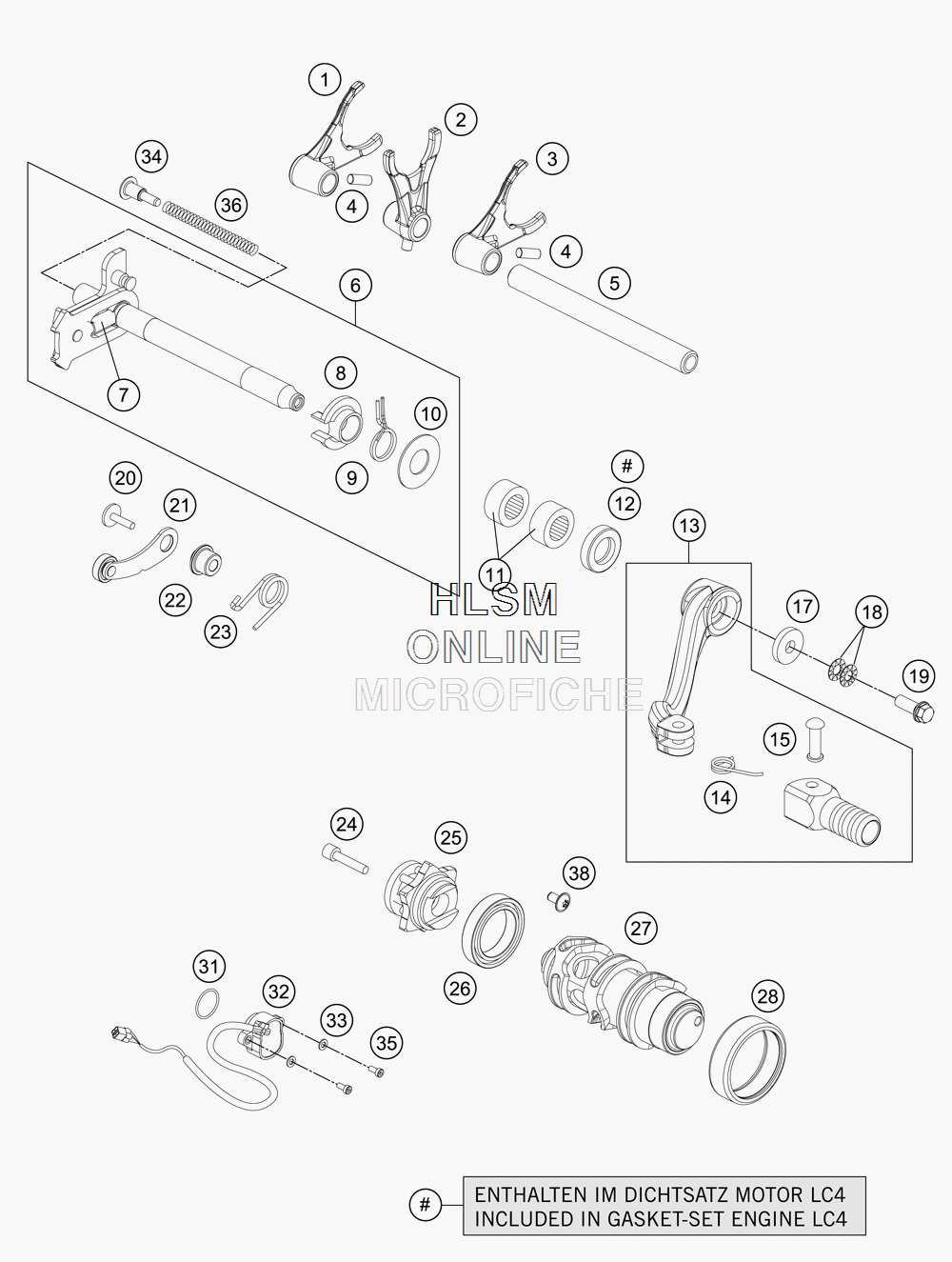

SHIFTING MECHANISM для Ktm 690 ENDURO ABS - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    75034002100 SHIFT FORK F. SLIDINGGEAR 5 12
    SHIFT FORK F. SLIDINGGEAR 5 12
  • 2
    75034001100 SHIFT FORK F. SLIDINGG. 3/4 12
    SHIFT FORK F. SLIDINGG. 3/4 12
  • 3
    75034003100 SHIFT FORK F. SLIDINGGEAR 6 12
    SHIFT FORK F. SLIDINGGEAR 6 12
  • 4
    0402061480 NEEDLE ROLLER DIN5402 6X14,8
    NEEDLE ROLLER DIN5402 6X14,8
  • 5
    75034019000 SHIFTRAIL
    SHIFTRAIL
  • 6
    75034005133 SHIFT SHAFT ASSY
    SHIFT SHAFT ASSY
  • 7
    56534013100 TENSIONING SPRING 0,8MM
    TENSIONING SPRING 0,8MM
  • 8
    54634020000 SPRING GUIDE
    SPRING GUIDE
  • 9
    54834014000 RETURN SPRING
    RETURN SPRING
  • 10
    75034050000 STOP DISK 14X30X1,5 STEEL
    STOP DISK 14X30X1,5 STEEL
  • 11
    54632095000 NEEDLE BEAR.HK 1412 14X20X12
    NEEDLE BEAR.HK 1412 14X20X12
  • 12
    0760142461 SHAFT SEAL RING 14X24X6B VITON
    SHAFT SEAL RING 14X24X6B VITON
  • 13
    75034031000 SHIFT LEVER CPL.
    SHIFT LEVER CPL.
  • 14
    75034032000 SHIFTING LEVER SPRING
    SHIFTING LEVER SPRING
  • 15
    54634031050 BOLT 6X25 FOR SHIFT LEVER
    BOLT 6X25 FOR SHIFT LEVER
  • 17
    50232050001 STEEL WASHER 6,4X17X3
    STEEL WASHER 6,4X17X3
  • 18
    50233041000 PAIR OF WASHERS M 6 NORDLOCK
    PAIR OF WASHERS M 6 NORDLOCK
  • 19
    59009062016 SPECIAL SCREW M6X16 WS=8 10.9
    SPECIAL SCREW M6X16 WS=8 10.9
  • 20
    0024060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 21
    75034024044 LOCKING LEVER CPL.
    LOCKING LEVER CPL.
  • 22
    75034052000 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 23
    60034023000 ARRESTING LEVER SPRING
    ARRESTING LEVER SPRING
  • 24
    0012060303 AH SCREW DIN6912 M6X30 8.8
    AH SCREW DIN6912 M6X30 8.8
  • 25
    75034015000 SHIFT DRUM LOCATING CPL.
    SHIFT DRUM LOCATING CPL.
  • 26
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 27
    76034112044 SHIFTING DRUM CPL.
    SHIFTING DRUM CPL.
  • 28
    0618354212 NEEDLE BEAR HK3512 35X42X12
    NEEDLE BEAR HK3512 35X42X12
  • 31
    0770253240 O-RING 25,30X2,40 NBR70
    O-RING 25,30X2,40 NBR70
  • 32
    60211023100 GEAR-POSITION SENSOR
    GEAR-POSITION SENSOR
  • 33
    0984050163S CYL. SCREW DIN6912 M5X16 8.8
    CYL. SCREW DIN6912 M5X16 8.8
  • 34
    75034006000 SPACER
    SPACER
  • 35
    0125050003 WASHER DIN0125-A 5,3
    WASHER DIN0125-A 5,3
  • 36
    75034007000 SPRING FOR OPERATING SHAFT
    SPRING FOR OPERATING SHAFT
  • 38
    073800501001 FLAT HEAD SCREW ISO 7380 M5X10
    FLAT HEAD SCREW ISO 7380 M5X10
