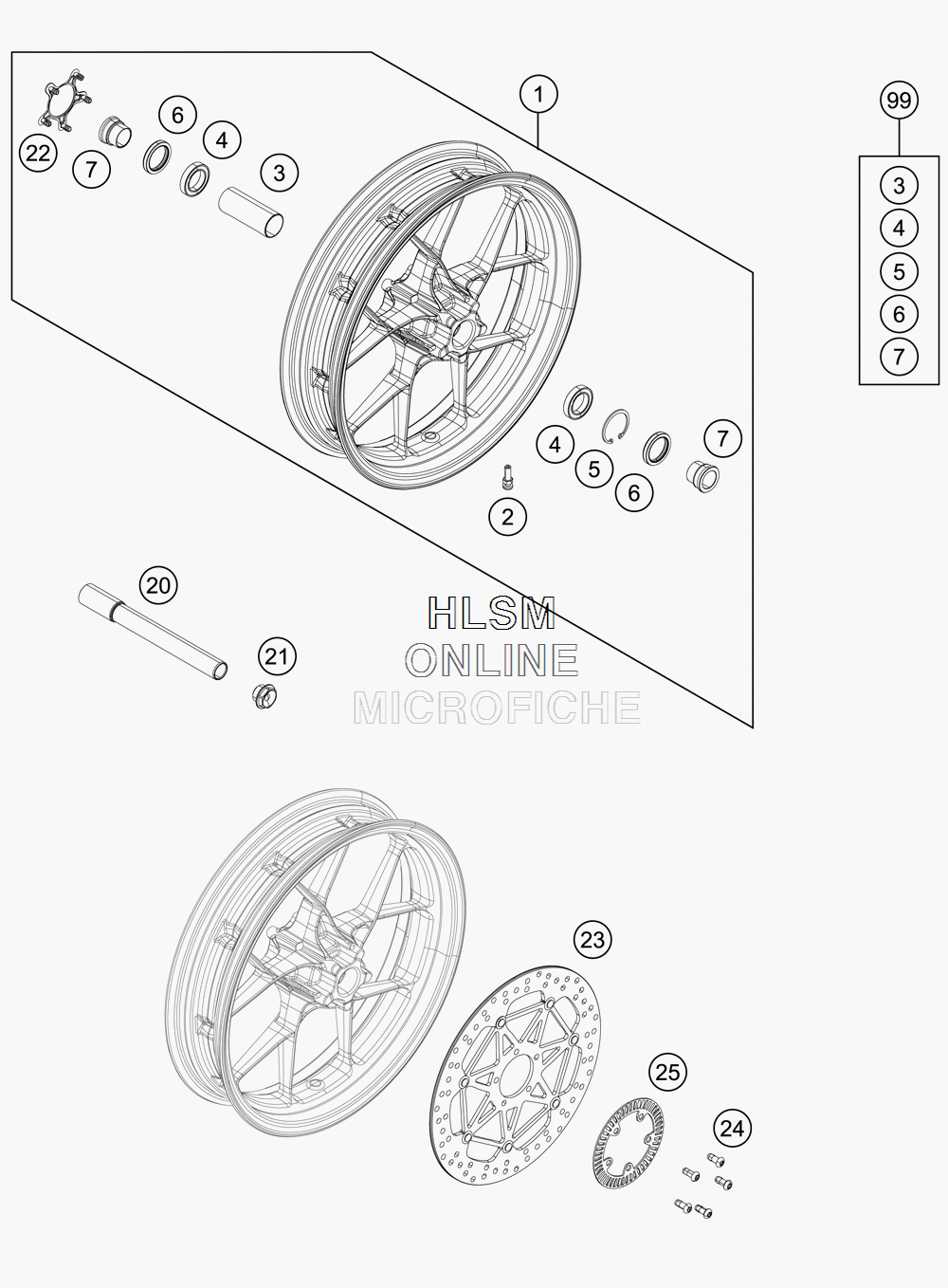

FRONT WHEEL для Ktm 690 DUKE BLACK - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    7600900104430 FRONT WHEEL CPL. 3,5X17"
    FRONT WHEEL CPL. 3,5X17"
  • 2
    58709076000 VALVE CPL. BREMBO DUKE
    VALVE CPL. BREMBO DUKE
  • 3
    61009011000 BEARING SPACER TUBE FRONT
    BEARING SPACER TUBE FRONT
  • 4
    0625069068 GR. BALL BEAR.6906 DDU2CG23S6NM
    GR. BALL BEAR.6906 DDU2CG23S6NM
  • 5
    0472047175 CIRCLIP DIN0472-47X1,75
    CIRCLIP DIN0472-47X1,75
  • 6
    0760354771 SHAFT SEAL RING 35X47X7 TC
    SHAFT SEAL RING 35X47X7 TC
  • 7
    78009012000 SPACER BUSHING F. FR. WHEEL
    SPACER BUSHING F. FR. WHEEL
  • 20
    75009081000 WHEEL SPINDLE FRONT D=26MM
    WHEEL SPINDLE FRONT D=26MM
  • 21
    54809082000 SPINDLE SCREW M24X1,5 WS=27
    SPINDLE SCREW M24X1,5 WS=27
  • 22
    76009001010 COVER BRAKE DISC SEAT
    COVER BRAKE DISC SEAT
  • 23
    7600906000033 BRAKE DISK D=320
    BRAKE DISK D=320
  • 24
    76009062000 SPECIAL SCREW M8X25 SS TX40
    SPECIAL SCREW M8X25 SS TX40
  • 25
    76042020000 SENSORGEAR FRONT
    SENSORGEAR FRONT
  • 99
    75609015000 FRONT WHEEL REP. KIT
    FRONT WHEEL REP. KIT
