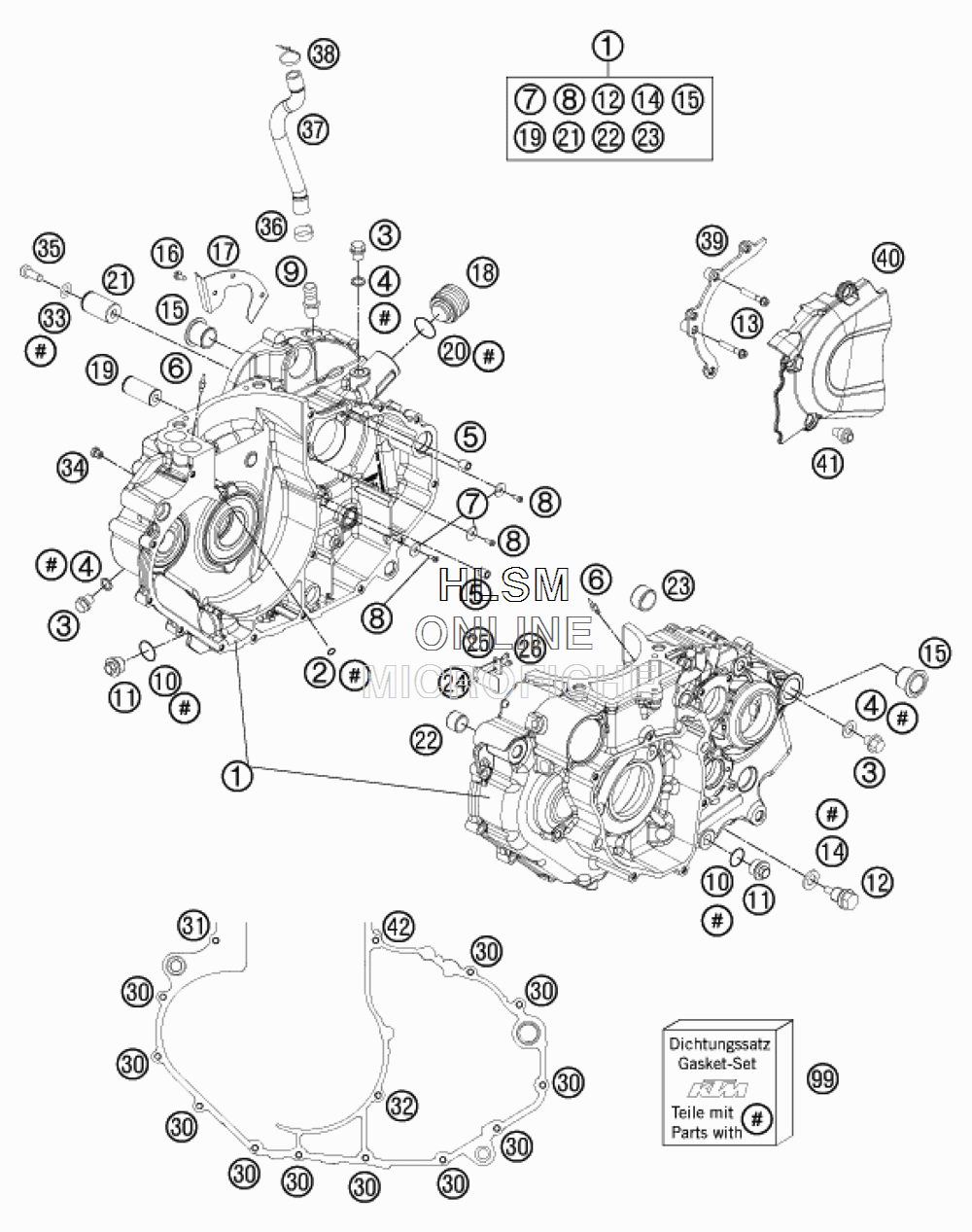

ENGINE CASE для Ktm 690 DUKE BLACK - 2014 года выпуска
-
№АртикулНазвание
-
17603000013324 ENGINE CASE CPL.ENGINE CASE CPL.
-
20770060018 O-RING 6,00X1,78O-RING 6,00X1,78
-
30910100003 PLUG DIN0910-MX1PLUG DIN0910-MX1
-
40603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
559030023000 DOWEL 6X8X11,5DOWEL 6X8X11,5
-
660030064050 OIL JET 50 M6X0,75 WS8OIL JET 50 M6X0,75 WS8
-
70021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
8073800501001 FLAT HEAD SCREW ISO 7380 M5X10FLAT HEAD SCREW ISO 7380 M5X10
-
960030022000 VENTILATION CONNECTOR M16X1,5VENTILATION CONNECTOR M16X1,5
-
100770020170 O-RING 17,17X1,78 GLOO-RING 17,17X1,78 GLO
-
1159038017000 PLUG M20X1,5 WS=13PLUG M20X1,5 WS=13
-
1258030021000 OILDRAIN PLUG W.MAG. MX1,5OILDRAIN PLUG W.MAG. MX1,5
-
130025060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
-
1458038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
1575030010000 CASE BUSHCASE BUSH
-
1607984050100 AH SCREW DIN7984 M5X10 A2AH SCREW DIN7984 M5X10 A2
-
1775030042000 COVERCOVER
-
1875038048100 LOCK PIECELOCK PIECE
-
1954633018400 BUSHING PINBUSHING PIN
-
200770180020 O-RING 18,00X2,00 NBR 70O-RING 18,00X2,00 NBR 70
-
2159040028000 BUSHING PINBUSHING PIN
-
2251030026100 DOWEL 17 X XDOWEL 17 X X
-
2354830027000 DOWEL 21X12DOWEL 21X12
-
2475030003051 MEMBRANEMEMBRANE
-
2575030003050 STOP SHEET MEMBRANESTOP SHEET MEMBRANE
-
260458030080 CYLIND.SCREW M3X8 ISO580 SSCYLIND.SCREW M3X8 ISO580 SS
-
300025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
310025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
320025060706 HH COLLAR SCREW M6X70 TX30HH COLLAR SCREW M6X70 TX30
-
330603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
3475030058000 JET5JET5
-
350912060123 AH SCREW DIN0912-M 6X12AH SCREW DIN0912-M 6X12
-
3600049220121 CLAMP STD DN22CLAMP STD DN22
-
3775030086000 HOSE BREATHER SYSTEMHOSE BREATHER SYSTEM
-
3844011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
3975030047000 SECURING GUIDESECURING GUIDE
-
4075030060100 CHAIN GUARDCHAIN GUARD
-
4159001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
420025060806 HH COLLAR SCREW M6X80 TX30HH COLLAR SCREW M6X80 TX30
-
9975030099000 GASKET SETGASKET SET
