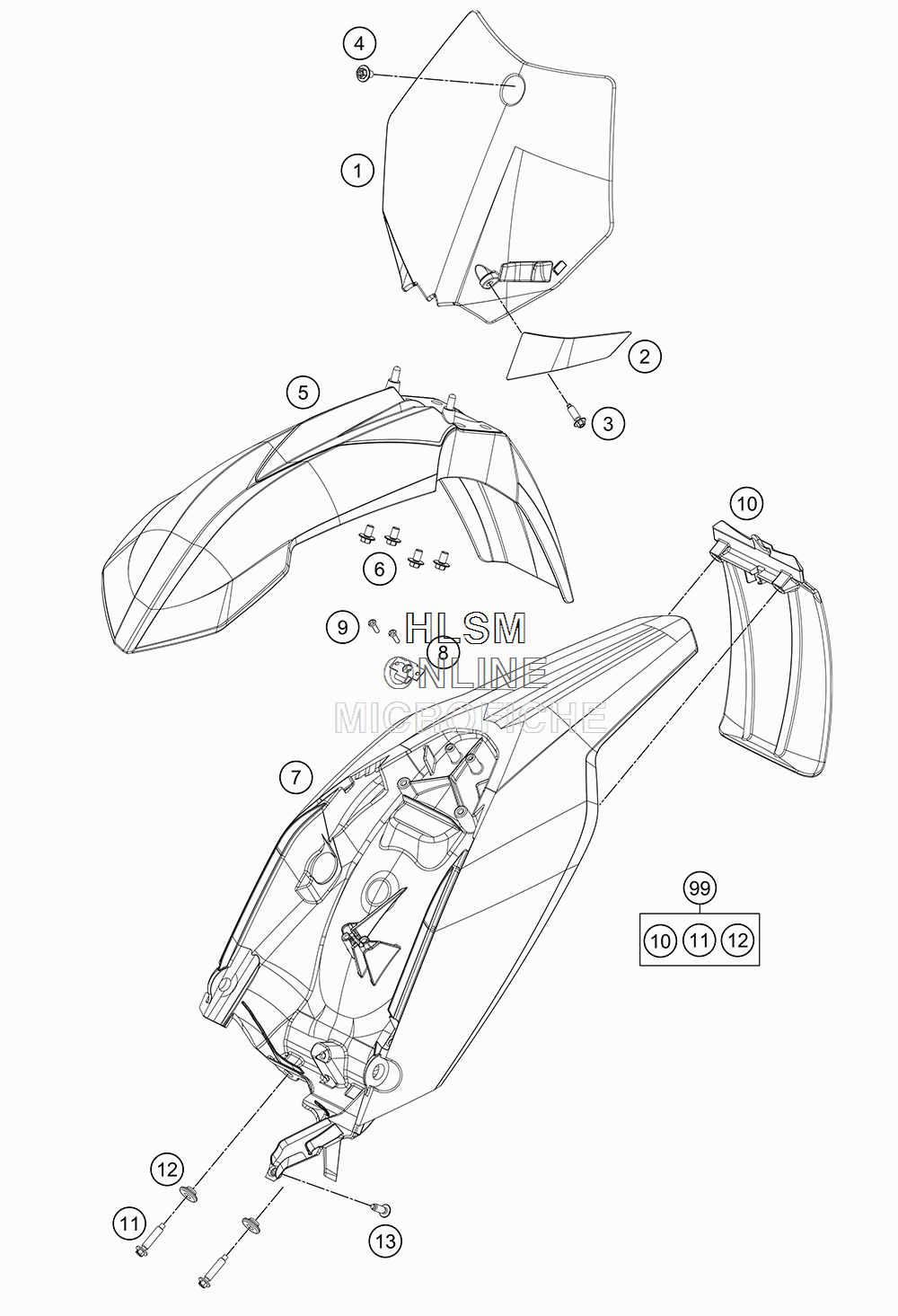

MASK FENDER для Ktm 65 SX - 2014 года выпуска
-
№АртикулНазвание
-
14620800700028 START NUMBER PLATESTART NUMBER PLATE
-
24620802200030 BRAKE HOSE GUIDEBRAKE HOSE GUIDE
-
30017060206 SCREW F. PLASTIC K60X20AL SW6SCREW F. PLASTIC K60X20AL SW6
-
40024060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
54620801010004 FRONT FENDER ORANGEFRONT FENDER ORANGE
-
60024060136 HH COLLAR SCREW M6X13 TX30HH COLLAR SCREW M6X13 TX30
-
74620801300004 % REAR PART 65 SX ORANGE% REAR PART 65 SX ORANGE
-
845007040050 QUICK RELEASE LATCHPLATEQUICK RELEASE LATCHPLATE
-
90981350163 SHEET MET.SCR.DIN7981- 3,5X16SHEET MET.SCR.DIN7981- 3,5X16
-
1046206010000 SPLASH PROTECTIONSPLASH PROTECTION
-
110017060305 SPECIAL SCREW K60X30 WS=6SPECIAL SCREW K60X30 WS=6
-
1254808020000 SPACER BUSHINGSPACER BUSHING
-
130017060205 SCREW FOR PLASTIC K60X20 SW6SCREW FOR PLASTIC K60X20 SW6
-
9946206010010 SPLASH PROTECTOR KITSPLASH PROTECTOR KIT
