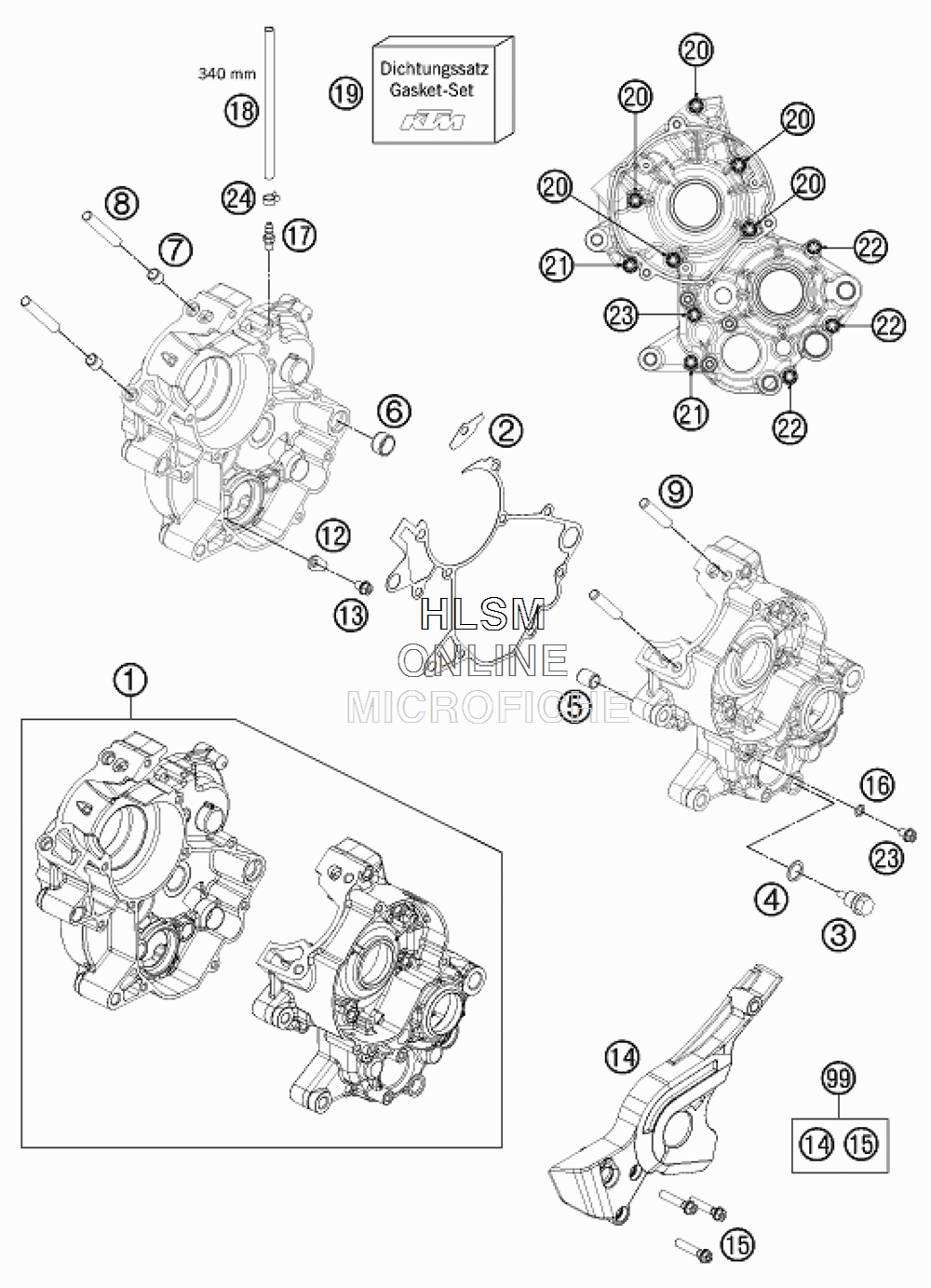

ENGINE CASE для Ktm 65 SX - 2014 года выпуска
-
№АртикулНазвание
-
146230000244 ENGINE CASE CPL. + BEARINGENGINE CASE CPL. + BEARING
-
246230039000 ENGINE CASE GASKETENGINE CASE GASKET
-
358030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
458038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
546230024000 DOWEL 12X9X14,5DOWEL 12X9X14,5
-
646230123000 DOWEL 17/12.1/9.5DOWEL 17/12.1/9.5
-
746230023000 DOWEL 10X8,2X10DOWEL 10X8,2X10
-
80835080355 STUD DIN0835-M 8X35 10.9STUD DIN0835-M 8X35 10.9
-
946030043000 STUD M8X41STUD M8X41
-
1254634049000 RETAINING PLATERETAINING PLATE
-
130025060106 HH COLLAR SCREW M6X10 TX30HH COLLAR SCREW M6X10 TX30
-
1446230060000 CHAIN SPROCKET GUARDCHAIN SPROCKET GUARD
-
150025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
160603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
1758336020190 VACUUM CONECTION M6/3MMVACUUM CONECTION M6/3MM
-
1831007007101 PVC-HOSE 4X6MMPVC-HOSE 4X6MM
-
1946230099000 GASKET SETGASKET SET
-
200025060556 HH COLLAR SCREW M6X55 TX30HH COLLAR SCREW M6X55 TX30
-
210025060406 HH COLLAR SCREW M6X40 TX30HH COLLAR SCREW M6X40 TX30
-
220025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
230025060086 HH COLLAR SCREW M6X8 TX30HH COLLAR SCREW M6X8 TX30
-
2445230089000 YDNAC-CLAMP 10068 (6,8MM)YDNAC-CLAMP 10068 (6,8MM)
-
9946204060010 SPROCKET COVER KITSPROCKET COVER KIT
