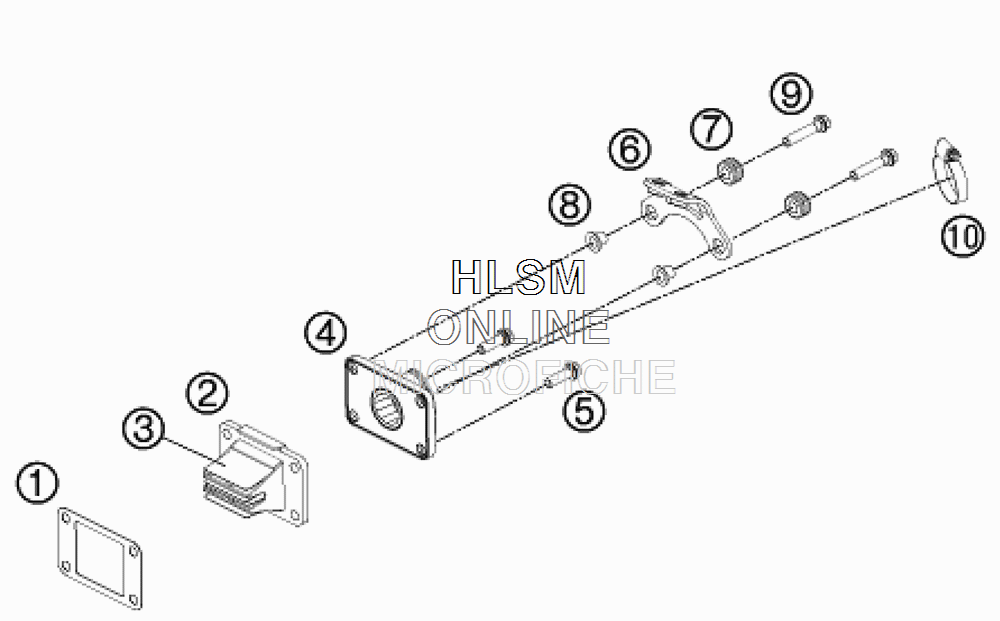

REED VALVE CASE для Ktm 50 SX - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    46230049000 GASKET MEMBRAN CASE
    GASKET MEMBRAN CASE
  • 2
    45230051044 MEMBRANE CASE CPL. V-VORCE
    MEMBRANE CASE CPL. V-VORCE
  • 3
    46230052000 MEMBRANE
    MEMBRANE
  • 4
    45230050000 INTAKE FLANGE
    INTAKE FLANGE
  • 5
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 6
    45239010000 IGNIT. COIL RETAIN. PLATE CPL.
    IGNIT. COIL RETAIN. PLATE CPL.
  • 7
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 8
    45239060050 COLLAR BUSHING 6,3X8X13X9,5
    COLLAR BUSHING 6,3X8X13X9,5
  • 9
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 10
    10001120000 CLAMP 25-40 SGT 4
    CLAMP 25-40 SGT 4
