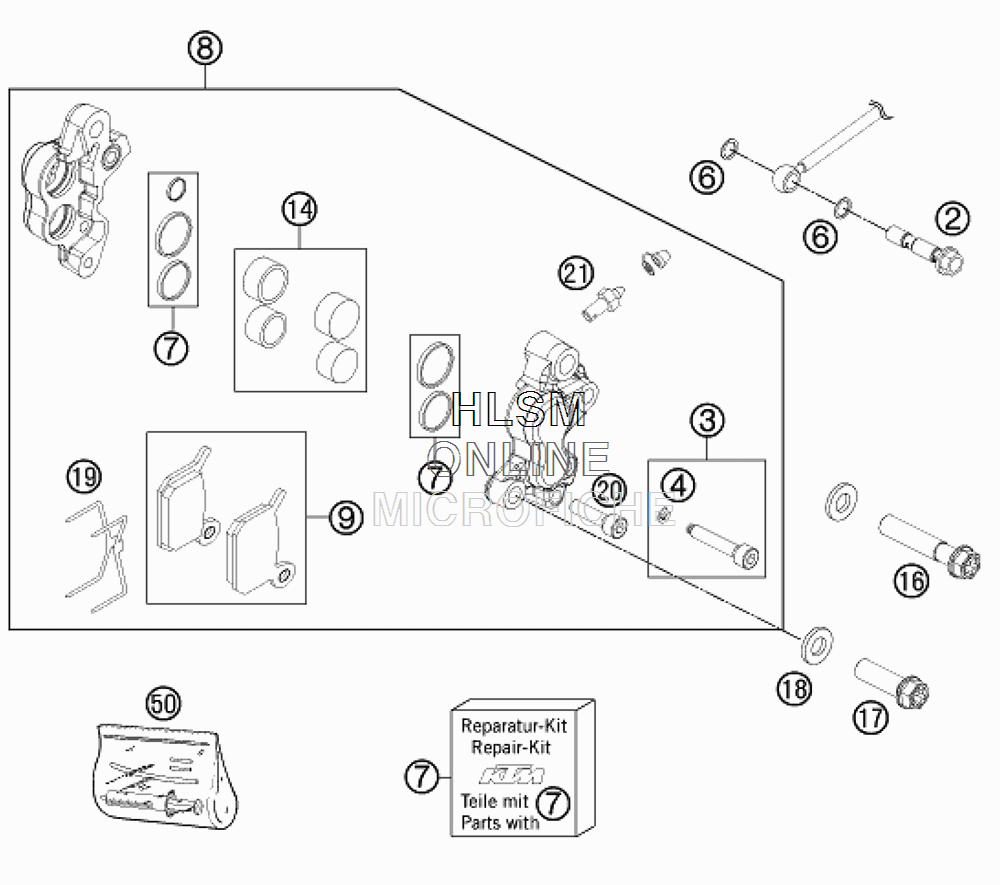

BRAKE CALIPER FRONT для Ktm 50 SX - 2014 года выпуска

  • №
    Артикул
    Название
  • 2
    45113025000 HOLLOW SCREW M6X34
    HOLLOW SCREW M6X34
  • 3
    45113125000 AH SCREW+CIRCLIP
    AH SCREW+CIRCLIP
  • 4
    0799025000 TAB WASHER DIN6799 RS2,5
    TAB WASHER DIN6799 RS2,5
  • 6
    0770060019 O-RING 6,00X1,00 FORMULA
    O-RING 6,00X1,00 FORMULA
  • 7
    45113019000 REP.KIT SEAL RING
    REP.KIT SEAL RING
  • 8
    45113015000 BRAKE CALIPER CPL.FR.
    BRAKE CALIPER CPL.FR.
  • 9
    45113030000 BRAKE PAD SET
    BRAKE PAD SET
  • 14
    45113019050 REPAIR KIT BRAKEPISTON
    REPAIR KIT BRAKEPISTON
  • 16
    0025080406 HH COLLAR SCREW M8X40 TX40
    HH COLLAR SCREW M8X40 TX40
  • 17
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 18
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 19
    45113018000 RETAINING SPRING
    RETAINING SPRING
  • 20
    0912050203 AH SCREW DIN0912-M 5X20
    AH SCREW DIN0912-M 5X20
  • 21
    45113020000 BREATHER SCREW
    BREATHER SCREW
  • 50
    45119050000 BLEEDER INJECTION-SET 50-65
    BLEEDER INJECTION-SET 50-65
