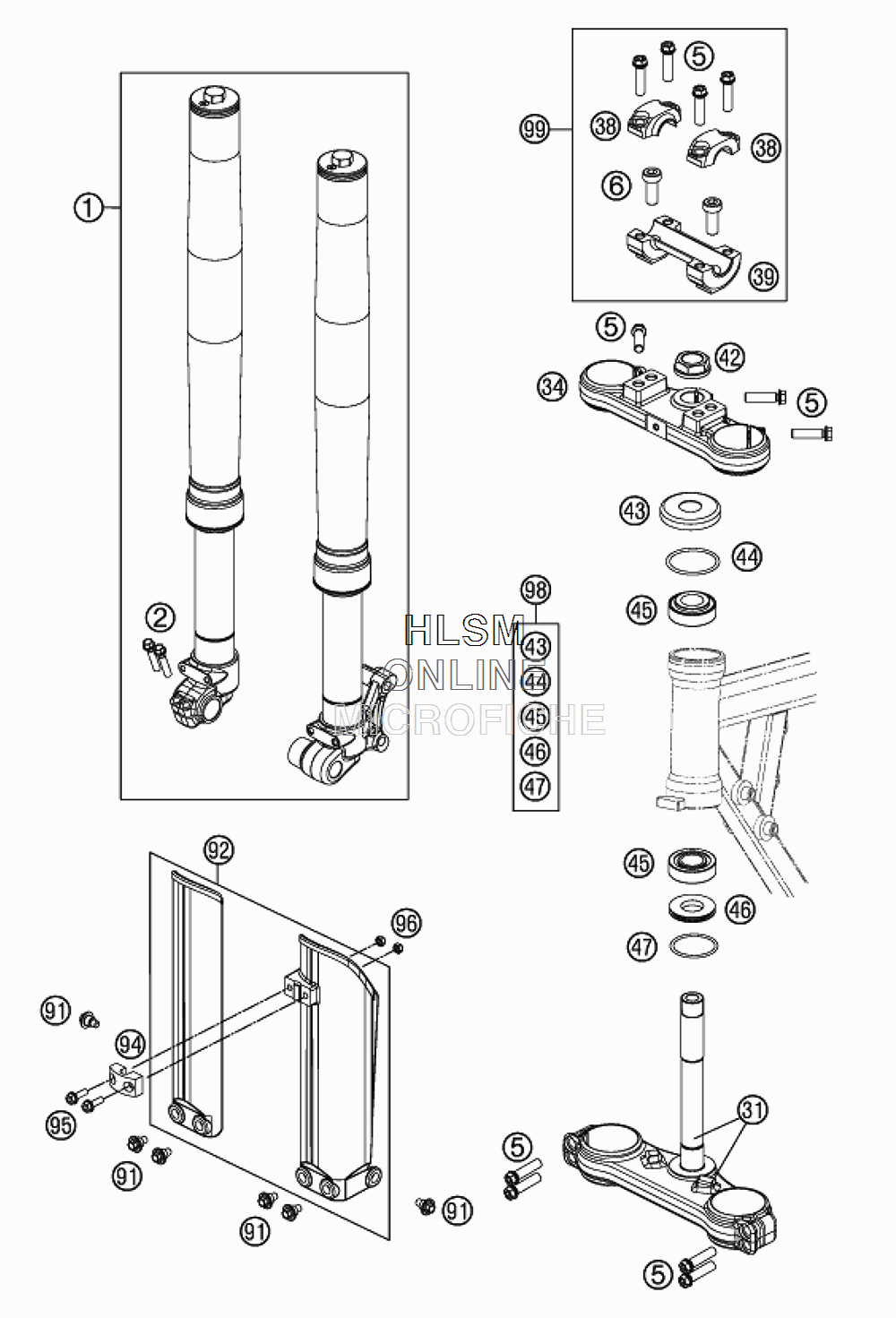

FRONT FORK TRIPLE CLAMP для Ktm 50 SX MINI - 2014 года выпуска`
-
№АртикулНазвание
-
107181L0101 FRONT FORK USDFRONT FORK USD
-
20025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
50025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
60032100256S AH-COLLAR SCREW M10X25 ISA45AH-COLLAR SCREW M10X25 ISA45
-
3145201132022 BOT.FORK PLATE CPL.BOT.FORK PLATE CPL.
-
3445201034022 TOP TRIPLE CLAMPTOP TRIPLE CLAMP
-
3850301038000 HANDLEBAR CLAMP D=22MMHANDLEBAR CLAMP D=22MM
-
3945201039000 HANDLEBAR SUPPORT 50SX D=22MMHANDLEBAR SUPPORT 50SX D=22MM
-
4259030029000 HH NUT M20X1,5 WS=27 RIGHTHH NUT M20X1,5 WS=27 RIGHT
-
4349001086000 COVERING CAPCOVERING CAP
-
440770021300 O-RING 40,94X2,62 NBR70O-RING 40,94X2,62 NBR70
-
4549001081000 TAPERED ROLLER BEARING 32004XTAPERED ROLLER BEARING 32004X
-
4646001086000 PROTECTION RING 20,1X39X5PROTECTION RING 20,1X39X5
-
470770360030 O-RING 36,00X3,00 NBRO-RING 36,00X3,00 NBR
-
9159001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
924610109400028 FORK PROTECTOR SET 65 SX WHITEFORK PROTECTOR SET 65 SX WHITE
-
945460108500028 BRAKE HOSE CLIPBRAKE HOSE CLIP
-
950025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
960985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
9800050000931 STEARING HEAD REP. KITSTEARING HEAD REP. KIT
-
9900050000925 HANDLEBAR SUPPORT KITHANDLEBAR SUPPORT KIT
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT PISTON
- CYLINDER CYLINDER HEAD
- DECAL
- ENGINE CASE
- EXHAUST SYSTEM
- FRAME
- FRONT FORK DISASSEMBLED
- • FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR CONTROLS
- IGNITION SYSTEM
- KICK STARTER
- LUBRICATING SYSTEM
- MASK FENDER
- MONOSHOCK
- MONOSHOCK DISASSEMBLED
- REAR BRAKE CONTROL
- REAR WHEEL
- REED VALVE CASE
- SWING ARM
- TANK SEAT COVER
- TRANSMISSION
- WATER PUMP
