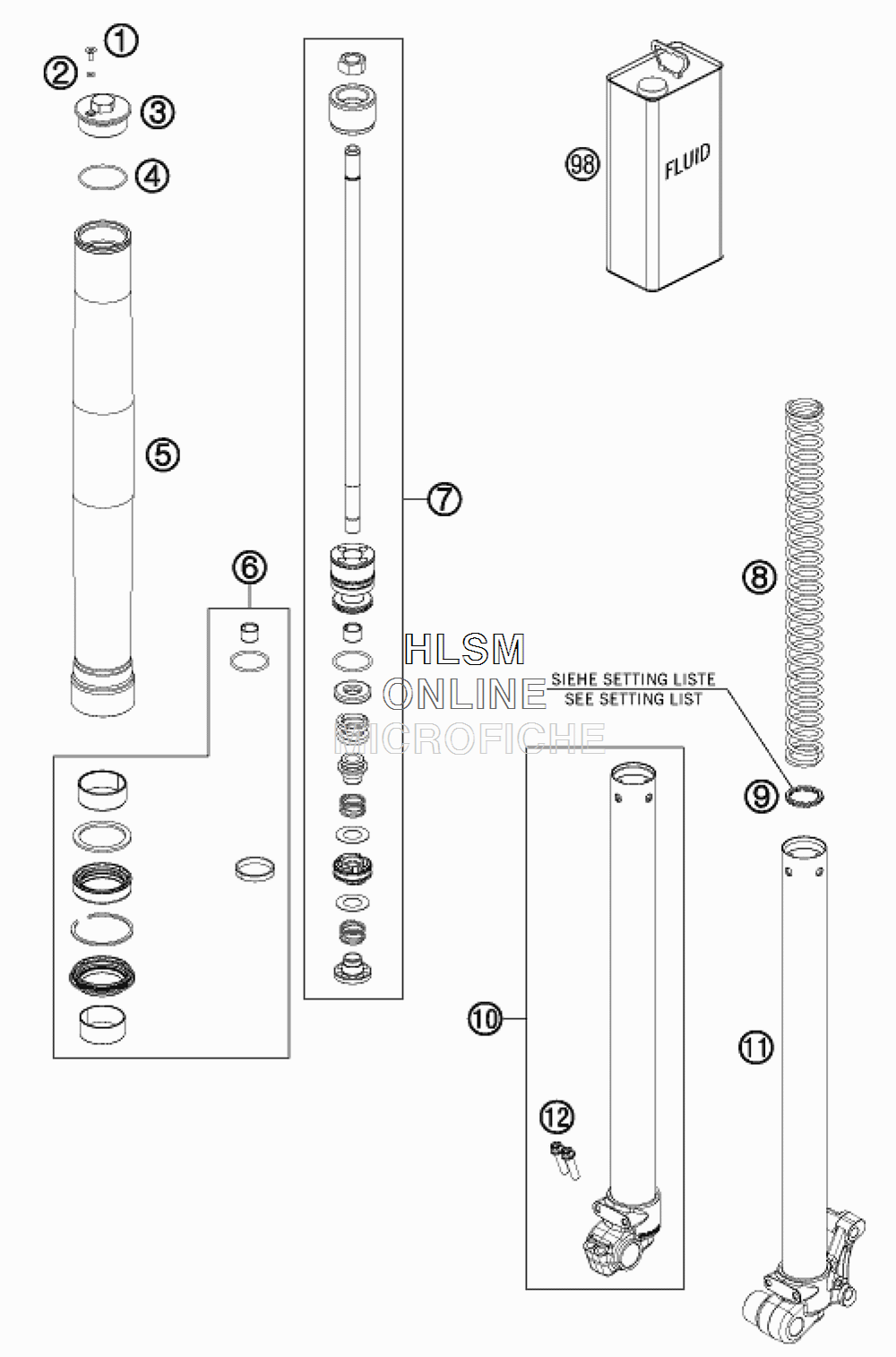

FRONT FORK DISASSEMBLED для Ktm 50 SX MINI - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    48600481 VENT SCREW M4X8
    VENT SCREW M4X8
  • 2
    48600046 O-RING NBR 3X1,5
    O-RING NBR 3X1,5
  • 3
    35480459 SCREW CAP M38X1.5
    SCREW CAP M38X1.5
  • 4
    46180581 O-RING 35X1.5 NBR70
    O-RING 35X1.5 NBR70
  • 5
    35480453 OUTER TUBE L=425
    OUTER TUBE L=425
  • 6
    R703 REPAIR KIT 50SX 2012
    REPAIR KIT 50SX 2012
  • 7
    35480495S1 PISTON ROD 50SX MINI CPL.
    PISTON ROD 50SX MINI CPL.
  • 8
    95010055S SPRING 1,8 N/MM SET
    SPRING 1,8 N/MM SET
  • 8
    95010051S SPRING 2.0N/MM SET D=3.1MM
    SPRING 2.0N/MM SET D=3.1MM
  • 8
    95010052S SPRING 2,2 N/MM SET
    SPRING 2,2 N/MM SET
  • 9
    35480497 WASHER 22X30X2.5
    WASHER 22X30X2.5
  • 10
    35480455S1 AXLE CLAMP R/S CPL. W. TUBE
    AXLE CLAMP R/S CPL. W. TUBE
  • 11
    35480456S1 AXLE CLAMP L/S CPL. W. TUBE
    AXLE CLAMP L/S CPL. W. TUBE
  • 12
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 98
    48600765 FORK OIL SAE5
    FORK OIL SAE5
