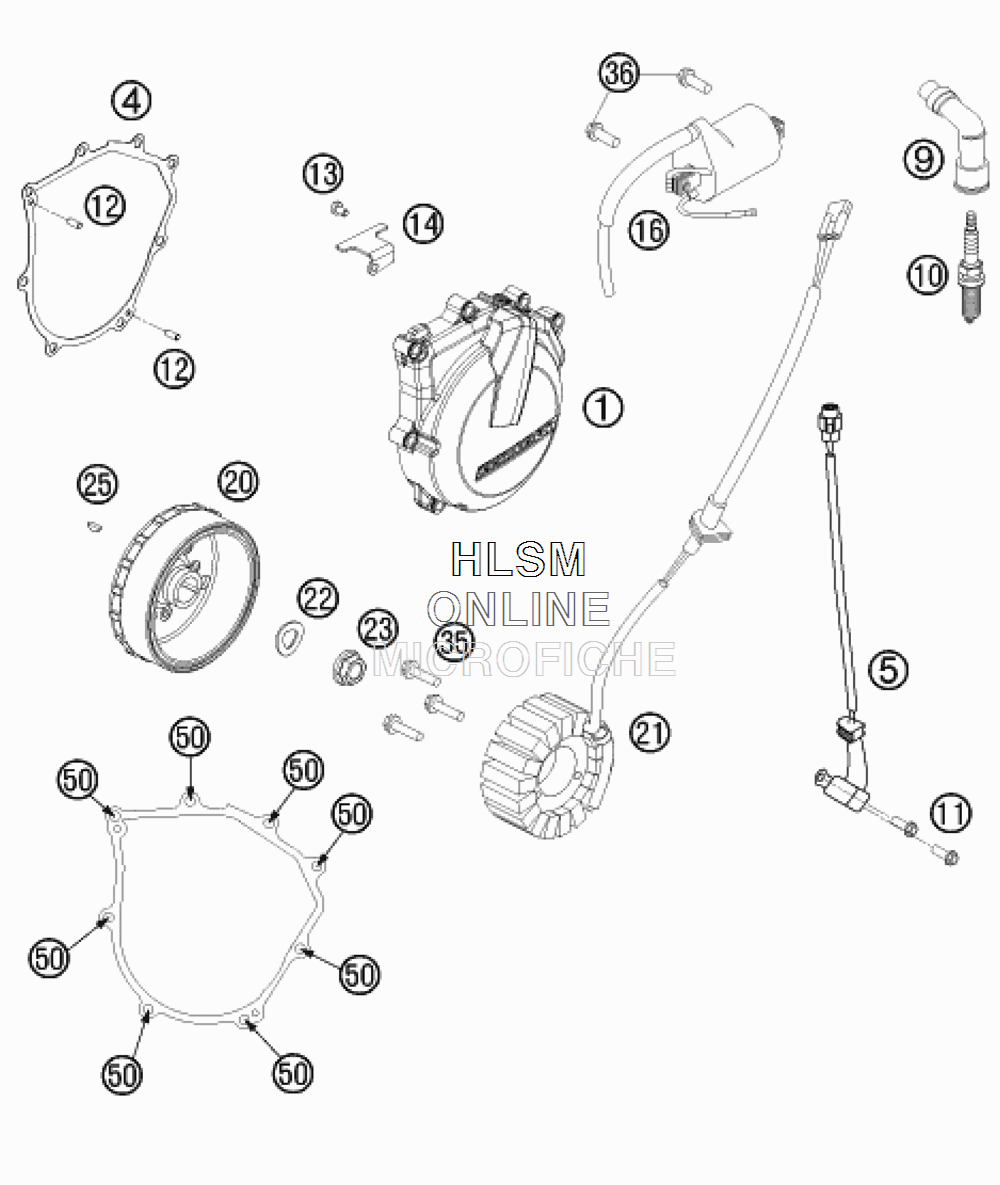

IGNITION SYSTEM для Ktm 450 XC-W - 2014 года выпуска`
-
№АртикулНазвание
-
17813000220015 IGNITION COVERIGNITION COVER
-
478130040000 GASKET - IGNITION COVERGASKET - IGNITION COVER
-
559039034000 PULSER COIL KOKUSAN 4K3-A/BPULSER COIL KOKUSAN 4K3-A/B
-
977139090000 SPARK PLUG CONNECTORSPARK PLUG CONNECTOR
-
1075039093000 SPARK PLUG M12X1,25 LKAR8AI-9SPARK PLUG M12X1,25 LKAR8AI-9
-
110025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
120402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
130019040106S FLAT HEAD SCREW ISA25 M4X10FLAT HEAD SCREW ISA25 M4X10
-
1481230002010 RETAINING PLATERETAINING PLATE
-
1658439006000 IGNITIONCOIL IG3826 KOKUSANIGNITIONCOIL IG3826 KOKUSAN
-
2078039205000 ROTORROTOR
-
2183039004000 STATORSTATOR
-
220137120000 SPRING WASHER DIN0137-B12SPRING WASHER DIN0137-B12
-
2349030021000 COLLAR NUT M12X1 R/SCOLLAR NUT M12X1 R/S
-
250888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
350025050306 HH COLLAR SCREW M5X30 TX30HH COLLAR SCREW M5X30 TX30
-
360026060186 COLLAR SCREW M6X18 ISA30COLLAR SCREW M6X18 ISA30
-
500025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
