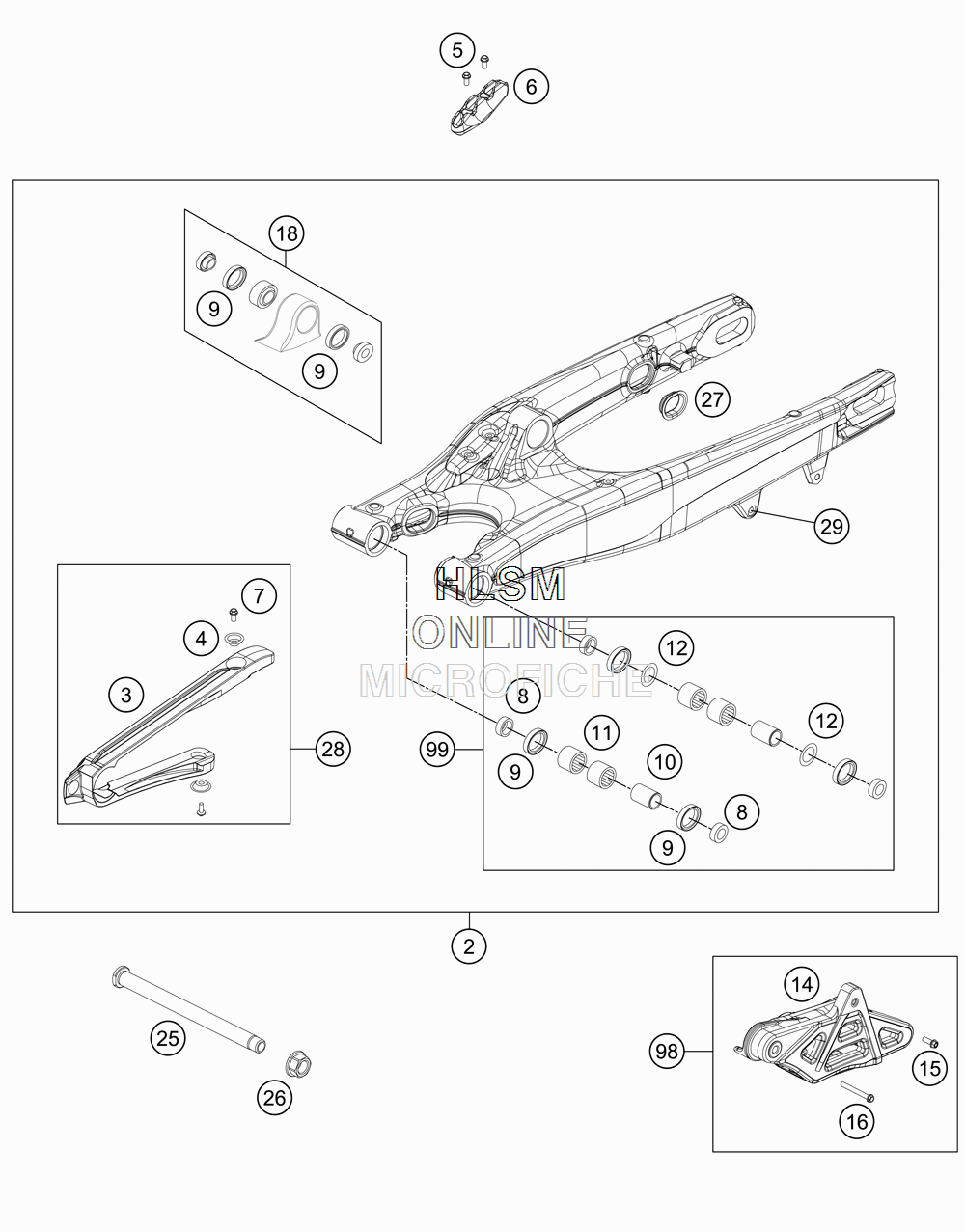

SWING ARM для Ktm 450 XC-W - 2014 года выпуска

  • №
    Артикул
    Название
  • 2
    78104030144 SWINGARM PDS
    SWINGARM PDS
  • 3
    51504066000 CHAIN SLID.GUARD PDS
    CHAIN SLID.GUARD PDS
  • 4
    77304066050 BUSHING F. CHAIN SLIDING PR.
    BUSHING F. CHAIN SLIDING PR.
  • 5
    0009050106 EJOT SPIRAL SCREW SF M5X10-K
    EJOT SPIRAL SCREW SF M5X10-K
  • 6
    77313047000 BRAKE HOSE GUIDE LOWER
    BRAKE HOSE GUIDE LOWER
  • 7
    59009062013 SPECIAL SCREW M6X13 WS=8 10.9
    SPECIAL SCREW M6X13 WS=8 10.9
  • 8
    54804034000 BUCKET F. SHAFT SEAL RING
    BUCKET F. SHAFT SEAL RING
  • 9
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 10
    59404032000 BEARING SLEEVE 17X22X38,7
    BEARING SLEEVE 17X22X38,7
  • 11
    0618222812 NEEDLEBEAR HK2212V 22/28/12 MB
    NEEDLEBEAR HK2212V 22/28/12 MB
  • 12
    54603036000 STOP DISK 22,2X31,7X1
    STOP DISK 22,2X31,7X1
  • 14
    78104070100 CHAIN GUIDE
    CHAIN GUIDE
  • 15
    59009062019 SPECIAL SCREW M6X19 WS=8 10.9
    SPECIAL SCREW M6X19 WS=8 10.9
  • 16
    0025060456 HH COLLAR SCREW M6X45 TX30
    HH COLLAR SCREW M6X45 TX30
  • 18
    50304090144 PIVOT BEARING+BUSH. PDS
    PIVOT BEARING+BUSH. PDS
  • 25
    77304037000 SWINGARM BOLT M16X1,5
    SWINGARM BOLT M16X1,5
  • 26
    54804038000 SELF LOCK.NUT M16X1,5 WS=19
    SELF LOCK.NUT M16X1,5 WS=19
  • 27
    77204041000 CLOSING COVER
    CLOSING COVER
  • 28
    51504066044 CHAIN SLIDING GUARD KIT
    CHAIN SLIDING GUARD KIT
  • 29
    54603055051 PRESS IN NUT M6 STEEL ZINC
    PRESS IN NUT M6 STEEL ZINC
  • 98
    78104070010 CHAIN GUIDE KIT
    CHAIN GUIDE KIT
  • 99
    59404230110 SWINGARM-REPAIR KIT
    SWINGARM-REPAIR KIT
