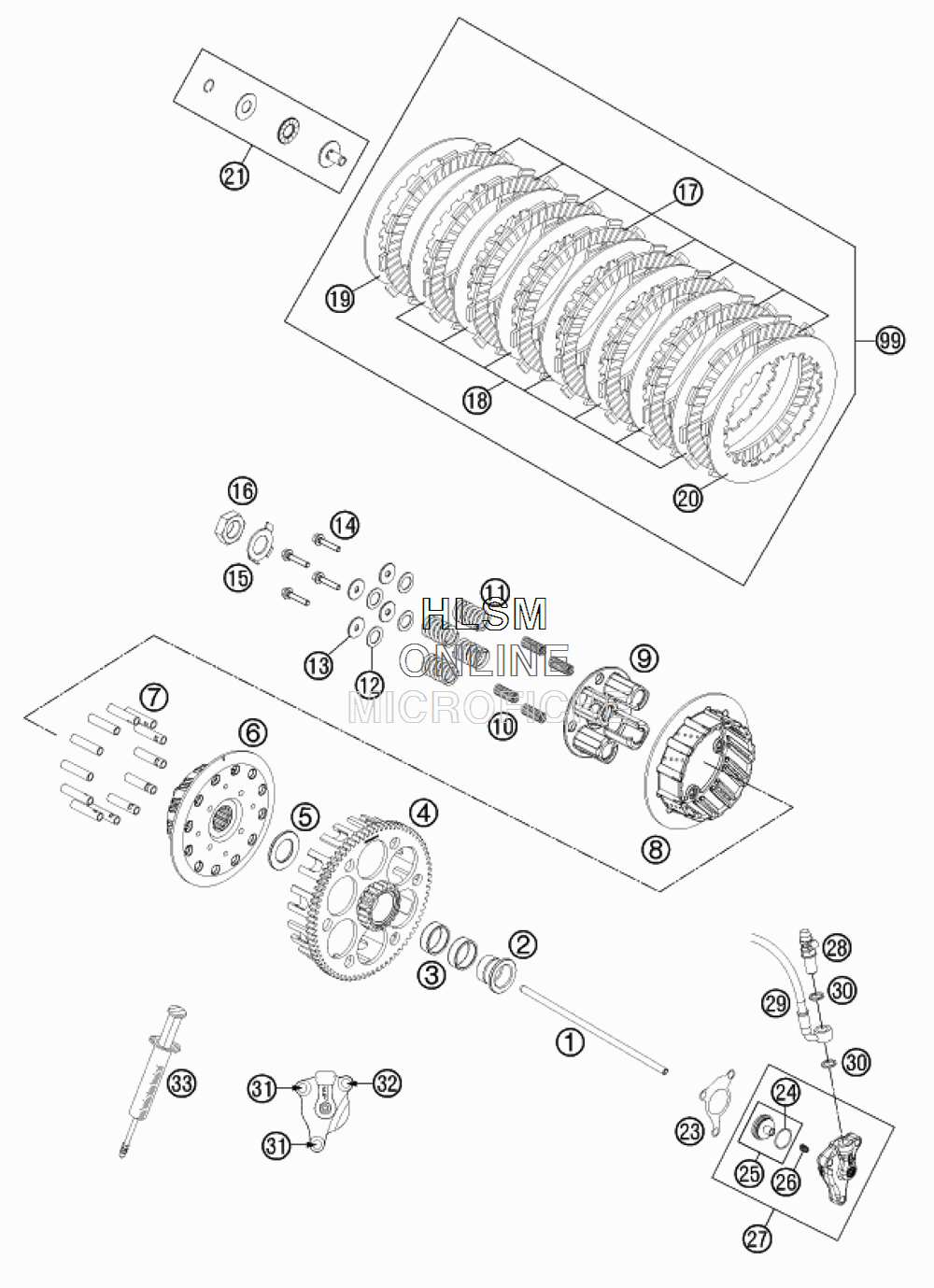

CLUTCH для Ktm 450 SMR - 2014 года выпуска
-
№АртикулНазвание
-
178132054100 PUSH RODPUSH ROD
-
278132015100 COLLARSLEEVECOLLARSLEEVE
-
30405252910 NEEDLE BEAR K 25X29X10NEEDLE BEAR K 25X29X10
-
478132001076 CLUTCH CAGECLUTCH CAGE
-
577232009100 WASHER 21,8 X 37 X 3WASHER 21,8 X 37 X 3
-
678932102020 HUB OUTSIDEHUB OUTSIDE
-
778932104000 SLEEVESLEEVE
-
878932102010 HUB INSIDEHUB INSIDE
-
978932103000 PRESSURE PLATEPRESSURE PLATE
-
1059032004200 OPENING SPRING APTCOPENING SPRING APTC
-
1159032005100 CLUTCH SPRING APTCCLUTCH SPRING APTC
-
1259032000101 WASHER 20 X 12,5 X 1WASHER 20 X 12,5 X 1
-
1259032000102 WASHER 20 X 12,5 X 1,5WASHER 20 X 12,5 X 1,5
-
1359032006100 WASHER 5,5X20X1,5WASHER 5,5X20X1,5
-
14025050256 HH COLLAR SCREW M5X25 ISA30HH COLLAR SCREW M5X25 ISA30
-
1578132018000 TAB WASHERTAB WASHER
-
160936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
1759032011100 LINING DISC 2MM 04LINING DISC 2MM 04
-
1859032010200 INTERMEDIATE DISC 1,4MMINTERMEDIATE DISC 1,4MM
-
1959032010100 INTERMEDIATE DISC 1MMINTERMEDIATE DISC 1MM
-
2078932010000 INTERMEDIATE DISC 1MMINTERMEDIATE DISC 1MM
-
2178132057044 PRESSURE PIECE CPL.PRESSURE PIECE CPL.
-
2359032065000 GASKET FOR SLAVE CYLINDERGASKET FOR SLAVE CYLINDER
-
2454832067000 O-RINGO-RING
-
2554832066000 PISTON CPL.PISTON CPL.
-
2654832069000 PRESSURE SPRINGPRESSURE SPRING
-
2754832061044 OUTPUT CYLINDER CPL.OUTPUT CYLINDER CPL.
-
2862513020000 BLEEDER SCREW CPL.BLEEDER SCREW CPL.
-
2978132063000 CLUTCH PIPECLUTCH PIPE
-
300603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
310025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
320025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
3350329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
9978932010033 CLUTCH DISC KITCLUTCH DISC KIT
