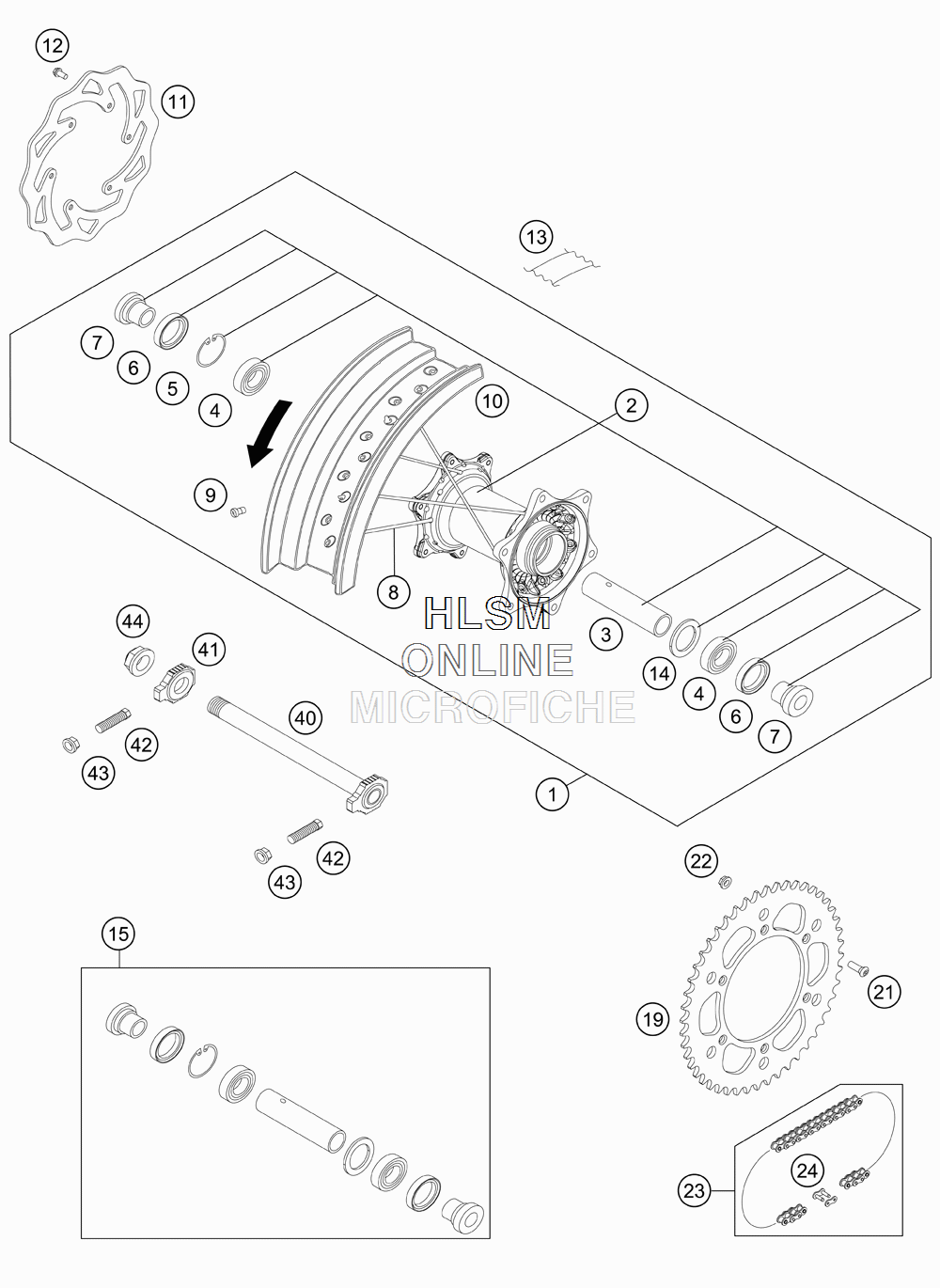

REAR WHEEL для Ktm 450 SMR - 2014 года выпуска
-
№АртикулНазвание
-
17891000104430 REAR WHEEL CPL. 5X17" SMRREAR WHEEL CPL. 5X17" SMR
-
278010010244 REAR WHEEL HUB CPL.REAR WHEEL HUB CPL.
-
377710011000 BEARING DISTANCE TUBE 121,5MMBEARING DISTANCE TUBE 121,5MM
-
40625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
50472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
60760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
777710016000 DISTANCE BUSHING REAR WHEELDISTANCE BUSHING REAR WHEEL
-
858309071100 SPOKE M5X174-13,5G 17"SPOKE M5X174-13,5G 17"
-
958309072100 SPOKE NIPPLE M5-TA 8X21MMSPOKE NIPPLE M5-TA 8X21MM
-
105941007000030 REAR RIM 5,0X17"REAR RIM 5,0X17"
-
1177310060000 BRAKE DISC REAR 220BRAKE DISC REAR 220
-
1259009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
1358309073000 RIM BAND 17"RIM BAND 17"
-
1477710015000 DISTANCE RINGDISTANCE RING
-
1577710015010 REAR WHEEL REP. KITREAR WHEEL REP. KIT
-
1958310051038 REAR SPROCKET 38-TREAR SPROCKET 38-T
-
1958310151040 REAR SPROCKET 40-TREAR SPROCKET 40-T
-
1958310051042 REAR SPROCKET 42-TREAR SPROCKET 42-T
-
1958310151045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
1958310151048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
1958310151049 REAR SPROCKET 49-TREAR SPROCKET 49-T
-
1958310151050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
1958310151051 REAR SPROCKET 51-TREAR SPROCKET 51-T
-
1958310151052 REAR SPROCKET 52-TREAR SPROCKET 52-T
-
210019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
2206923080003 HEXAGON NUT DIN EN1661 M8 SW13HEXAGON NUT DIN EN1661 M8 SW13
-
2350310165118 CHAIN 5/8X1/4" MXCHAIN 5/8X1/4" MX
-
2450310166000 CONNECTING LINK F. 50310165118CONNECTING LINK F. 50310165118
-
4077710085044 WHEEL SPINDLE CPL.WHEEL SPINDLE CPL.
-
4177710084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
4250304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
4358414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
4461010086000 COLLAR NUT M25X1,5 WS=32COLLAR NUT M25X1,5 WS=32
