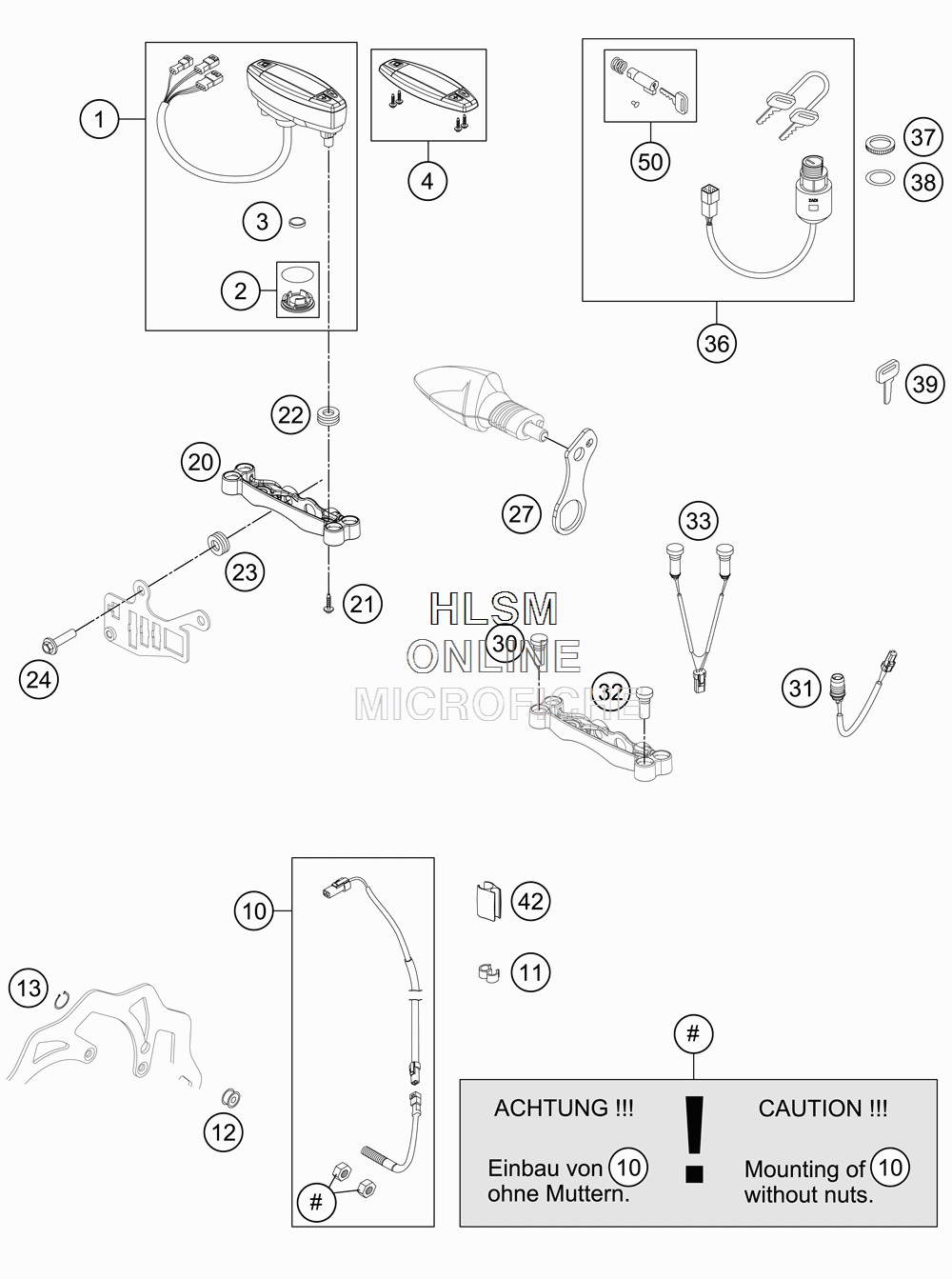

INSTRUMENTS / LOCK SYSTEM для Ktm 350 EXCF - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    54814069000 SPEEDOMETER KM/H F. 21"
    SPEEDOMETER KM/H F. 21"
  • 2
    54814069010 BATTERY COVER F. SPEEDOM.
    BATTERY COVER F. SPEEDOM.
  • 3
    58314068000 BATTERY F. SPEEDOM. M.A.E.
    BATTERY F. SPEEDOM. M.A.E.
  • 4
    54814069020 SPEEDOMETER TOP PART
    SPEEDOMETER TOP PART
  • 10
    54814068100 CABLE FOR DIGITAL SPEEDOM.
    CABLE FOR DIGITAL SPEEDOM.
  • 11
    60111094000 CLAMP 5/7 MM
    CLAMP 5/7 MM
  • 12
    54814069050 MAGNET FOR DIGITAL SPEEDOM.
    MAGNET FOR DIGITAL SPEEDOM.
  • 13
    0471009104 CIRCLIP DIN0471- 9X1 INOX
    CIRCLIP DIN0471- 9X1 INOX
  • 20
    81214060000 SPEEDOMETER BRACKET
    SPEEDOMETER BRACKET
  • 21
    0081645121 EJOT DELTA PT SCREW 45X12-Z
    EJOT DELTA PT SCREW 45X12-Z
  • 22
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 23
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 24
    0024060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 27
    78111065050 BRACKET IGNITION LOCK
    BRACKET IGNITION LOCK
  • 30
    58011024300 FLASHER INDICAT.LIGHT GREEN
    FLASHER INDICAT.LIGHT GREEN
  • 31
    77711091000 CABLE INDICATOR LIGHT
    CABLE INDICATOR LIGHT
  • 32
    58011021300 H.BEAM INDICATOR LIGHT BLUE
    H.BEAM INDICATOR LIGHT BLUE
  • 33
    77714081000 INDICATOR LIGHT EFI+RES CPL.
    INDICATOR LIGHT EFI+RES CPL.
  • 36
    78011065100 IGNITION LOCK SET STR.LE
    IGNITION LOCK SET STR.LE
  • 37
    50311066050 IGNITION LOCK NUT M24X1
    IGNITION LOCK NUT M24X1
  • 38
    58411066450 WASHER F. IGNITION LOCK
    WASHER F. IGNITION LOCK
  • 39
    40011166200 KEY BLANK BLACK "T" GRIP
    KEY BLANK BLACK "T" GRIP
  • 42
    54813026000 CABLE SUPPORT 10/6MM
    CABLE SUPPORT 10/6MM
  • 50
    78003035000 STEERING HEAD LOCK
    STEERING HEAD LOCK
