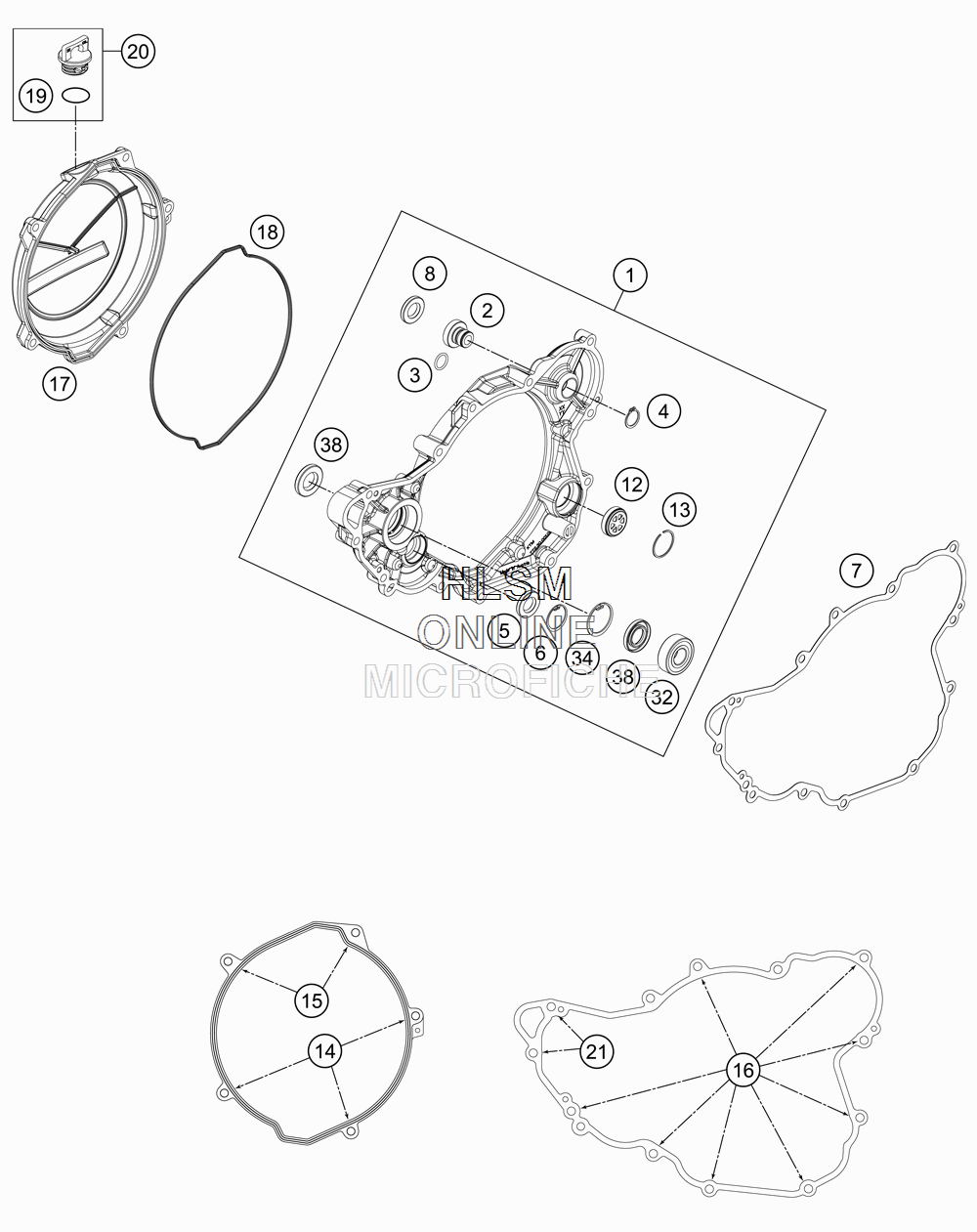

CLUTCH COVER для Ktm 350 EXCF - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    77230001144 CLUTCH COVER CPL.
    CLUTCH COVER CPL.
  • 2
    77230001010 PLUG STARTING LEVER
    PLUG STARTING LEVER
  • 3
    770140200 O-RING 14,00X2,00
    O-RING 14,00X2,00
  • 4
    0471170010 CIRCLIP DIN0471-17X1
    CIRCLIP DIN0471-17X1
  • 5
    0760142450 SHAFT SEAL RING 14X24X5 VITON
    SHAFT SEAL RING 14X24X5 VITON
  • 6
    0472024120 CIRCLIP DIN0472-24X1.2
    CIRCLIP DIN0472-24X1.2
  • 7
    77230025000 CLUTCH COVER GASKET
    CLUTCH COVER GASKET
  • 8
    0760172870 SHAFT SEAL RING 17X28X7 B
    SHAFT SEAL RING 17X28X7 B
  • 12
    59030019100 OIL LEVEL GLASS
    OIL LEVEL GLASS
  • 13
    61030019050 CIRCLIP OIL LEVEL GLASS
    CIRCLIP OIL LEVEL GLASS
  • 14
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 15
    0025060456 HH COLLAR SCREW M6X45 TX30
    HH COLLAR SCREW M6X45 TX30
  • 16
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 17
    7723002600015 CLUTCH COVER OUTSIDE
    CLUTCH COVER OUTSIDE
  • 18
    77230027000 GASKET FOR OUTER CLUTCH COVER
    GASKET FOR OUTER CLUTCH COVER
  • 19
    0770191015 O-RING 19,00X3,00 NBR
    O-RING 19,00X3,00 NBR
  • 20
    58030120000 OIL FILLER CAP M24X3 WITH O-RING
    OIL FILLER CAP M24X3 WITH O-RING
  • 21
    0025060406 HH COLLAR SCREW M6X40 TX30
    HH COLLAR SCREW M6X40 TX30
  • 32
    0625062022 BALL BEARING 6202 C0 2
    BALL BEARING 6202 C0 2
  • 34
    0472300120 CIRCLIP 30X1,2
    CIRCLIP 30X1,2
  • 38
    07601530451 SHAFT SEAL RING 15X30X4.5 BAUD
    SHAFT SEAL RING 15X30X4.5 BAUD
