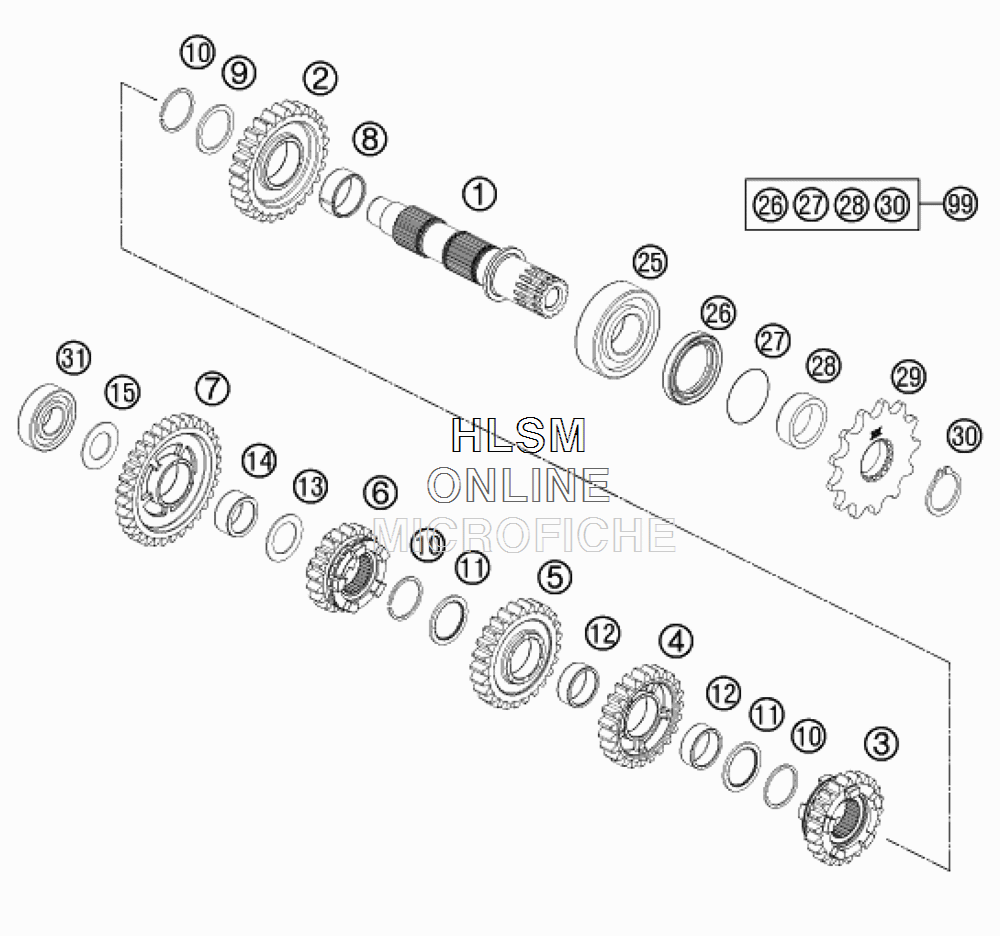

TRANSMISSION II - COUNTERSHAFT для Ktm 300 XC - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    54833210100 COUNTER SHAFT CPL.
    COUNTER SHAFT CPL.
  • 2
    54833312000 IDLER GEAR 2. GEAR, 25
    IDLER GEAR 2. GEAR, 25
  • 3
    54833215000 SLIDING GEAR 5.G., Z=22
    SLIDING GEAR 5.G., Z=22
  • 4
    54833214000 IDLER GEAR 4.G., Z=23
    IDLER GEAR 4.G., Z=23
  • 5
    54833213000 IDLER GEAR 3.G., Z= 25
    IDLER GEAR 3.G., Z= 25
  • 6
    54833216000 SLIDING GEAR 6.G., Z=20
    SLIDING GEAR 6.G., Z=20
  • 7
    54833311000 IDLER GEAR 1. GEAR, 31
    IDLER GEAR 1. GEAR, 31
  • 8
    0405242812 NEDDLE BEAR. K24X28X11,9 DIV.
    NEDDLE BEAR. K24X28X11,9 DIV.
  • 9
    54833044000 STOP DISC 25X31X1,5
    STOP DISC 25X31X1,5
  • 10
    0417024000 CIRCLIP WS24
    CIRCLIP WS24
  • 11
    54833043000 STOP DISC 25X0,8X30X30X7H
    STOP DISC 25X0,8X30X30X7H
  • 12
    0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED
    NEEDLE BEAR.K 22X26X10 DIVIDED
  • 13
    54833080000 STOP DISC 20,2X30X1
    STOP DISC 20,2X30X1
  • 14
    0405202612 NEEDLE BEARING K 20X26X12
    NEEDLE BEARING K 20X26X12
  • 15
    56033030000 STOP DISC 17,2X30X1
    STOP DISC 17,2X30X1
  • 25
    54833025000 BALL BEARING TM-SC05C20C4 NTN
    BALL BEARING TM-SC05C20C4 NTN
  • 26
    0760324571 SHAFT SEAL RING 32X45X7 BSLNBR
    SHAFT SEAL RING 32X45X7 BSLNBR
  • 27
    0770250020 O-RING 25,00X2,00 NBR 70
    O-RING 25,00X2,00 NBR 70
  • 28
    54833032011 SPACER SLEEVE DRIVE END
    SPACER SLEEVE DRIVE END
  • 29
    50033029013 FRONT SPROCKET 13-T
    FRONT SPROCKET 13-T
  • 29
    50033029014 FRONT SPROCKET 14-T
    FRONT SPROCKET 14-T
  • 30
    52033096000 LOCK RING DIN0471-25X1,64SD
    LOCK RING DIN0471-25X1,64SD
  • 31
    0625062035 BALL BEARING 6203 JR2 C3
    BALL BEARING 6203 JR2 C3
  • 99
    00050000940 COUNTER SHAFT REP.KIT 2 STROKE
    COUNTER SHAFT REP.KIT 2 STROKE
