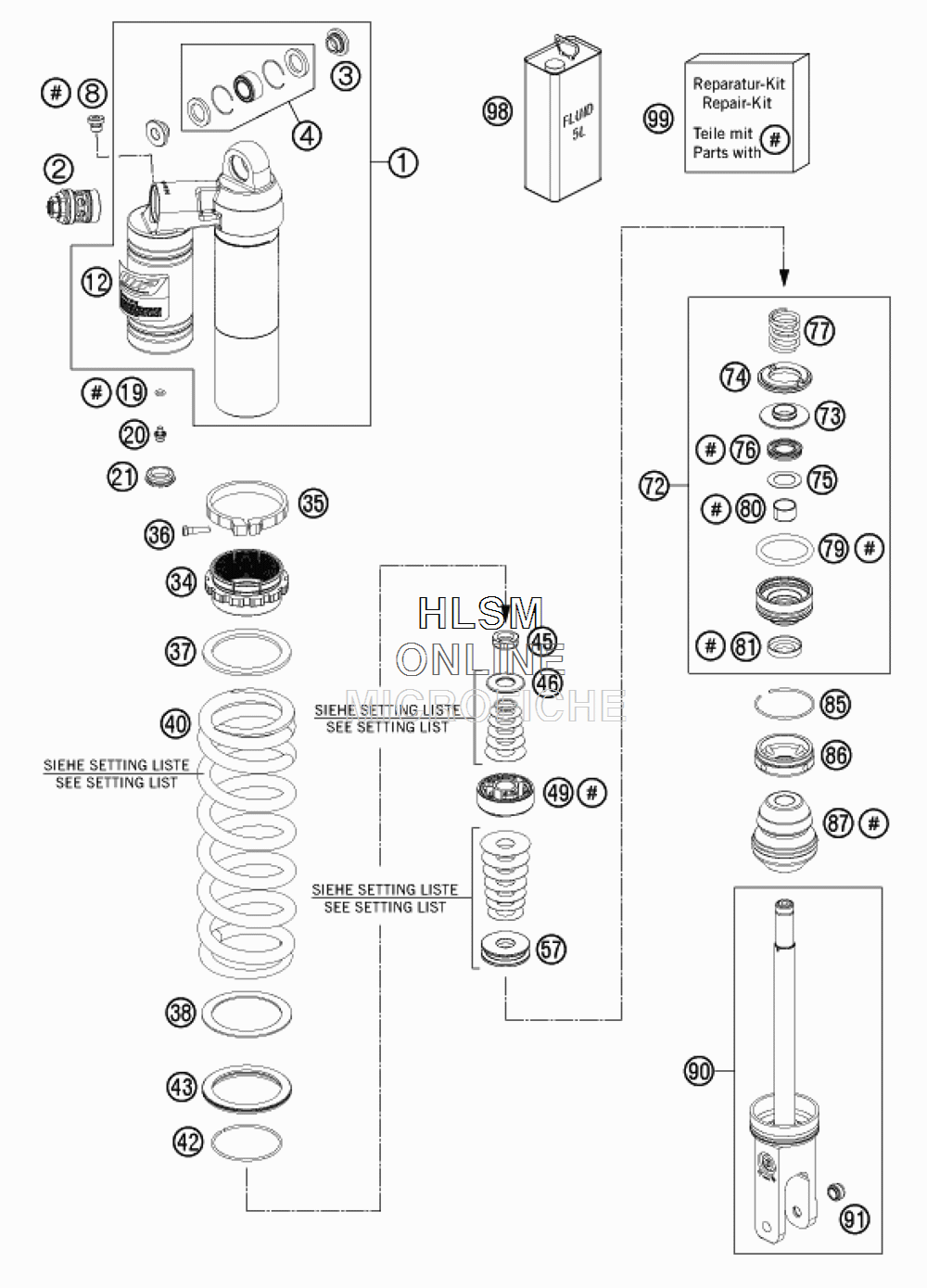

MONOSHOCK DISASSEMBLED для Ktm 300 XC - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    50180944S1 MONOSHOCK UPPER PART CPL.
    MONOSHOCK UPPER PART CPL.
  • 2
    50180213S17 DCC COMPR.DAMP.CON.
    DCC COMPR.DAMP.CON.
  • 3
    46180010 BUSH KGW 10X24
    BUSH KGW 10X24
  • 4
    R12012 REP. KIT BEAR./SEAL UP.
    REP. KIT BEAR./SEAL UP.
  • 8
    50180095 BLEED PLUG R 1/8
    BLEED PLUG R 1/8
  • 12
    52000087 STICKER WP MONOSHOCK
    STICKER WP MONOSHOCK
  • 19
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 20
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 21
    46811208 RUBBER CAP "DO NOT OPEN"
    RUBBER CAP "DO NOT OPEN"
  • 34
    50180938 ADJUSTING NUT PLASTIC
    ADJUSTING NUT PLASTIC
  • 35
    50180937 TENSIONING RING D64 H10
    TENSIONING RING D64 H10
  • 36
    14460042 %ALLENHEAD SCREW M5 L=20 STAIN
    %ALLENHEAD SCREW M5 L=20 STAIN
  • 37
    50180965 SPACER RING SPRING 61,3X78X3
    SPACER RING SPRING 61,3X78X3
  • 38
    50180793 SPACER RING ADJUSTING NUT
    SPACER RING ADJUSTING NUT
  • 40
    91210082S SPRING 260 51N/MM D11,25 OR.
    SPRING 260 51N/MM D11,25 OR.
  • 40
    91210083S SPRING 260 54N/MM D11,5 OR.
    SPRING 260 54N/MM D11,5 OR.
  • 40
    91210084S SPRING 260 57N/MM D11,75 OR.
    SPRING 260 57N/MM D11,75 OR.
  • 42
    50180273 CIRCLIP 58,2X2
    CIRCLIP 58,2X2
  • 43
    50180824 VALVE SPRING D80 CLOSED
    VALVE SPRING D80 CLOSED
  • 45
    50180141 PISTON ROD NUT M16X1
    PISTON ROD NUT M16X1
  • 46
    50180836 REBOUND DISC 16X34 T2 H0
    REBOUND DISC 16X34 T2 H0
  • 49
    50180786S PISTON D50
    PISTON D50
  • 57
    50180961 REBOUND DISC D16X43 H12
    REBOUND DISC D16X43 H12
  • 72
    50180603S3 ADAPTER D50 H28 CPL.
    ADAPTER D50 H28 CPL.
  • 73
    50180800 SPRING RING
    SPRING RING
  • 74
    50180798 REBOUND RUBBER
    REBOUND RUBBER
  • 75
    50180604 SHIM D29,75 X D19 X T0,4
    SHIM D29,75 X D19 X T0,4
  • 76
    50180605S SEAL D18X30X5
    SEAL D18X30X5
  • 77
    50180780 REBOUND SPRING
    REBOUND SPRING
  • 79
    50180103 O-RING 41X5
    O-RING 41X5
  • 80
    46180119 DU-BUSH 18X20X12
    DU-BUSH 18X20X12
  • 81
    50180606 DUST SEAL 1828
    DUST SEAL 1828
  • 85
    50180126 CIRCLIP 53X1,75
    CIRCLIP 53X1,75
  • 86
    50180626 RESERVOIR CAP D=50 H=10
    RESERVOIR CAP D=50 H=10
  • 87
    50180775 BUMP RUBBER
    BUMP RUBBER
  • 90
    50180773SA1 MONOSHOCK BOTTOM PART CPL.
    MONOSHOCK BOTTOM PART CPL.
  • 91
    46811205 ADAPTOR-BUSH M10X1,50, D=15
    ADAPTOR-BUSH M10X1,50, D=15
  • 98
    50180751S1 SHOCK ABSORBER FLUID 5 LT
    SHOCK ABSORBER FLUID 5 LT
  • 99
    R12018 REPAIR-KIT
    REPAIR-KIT
