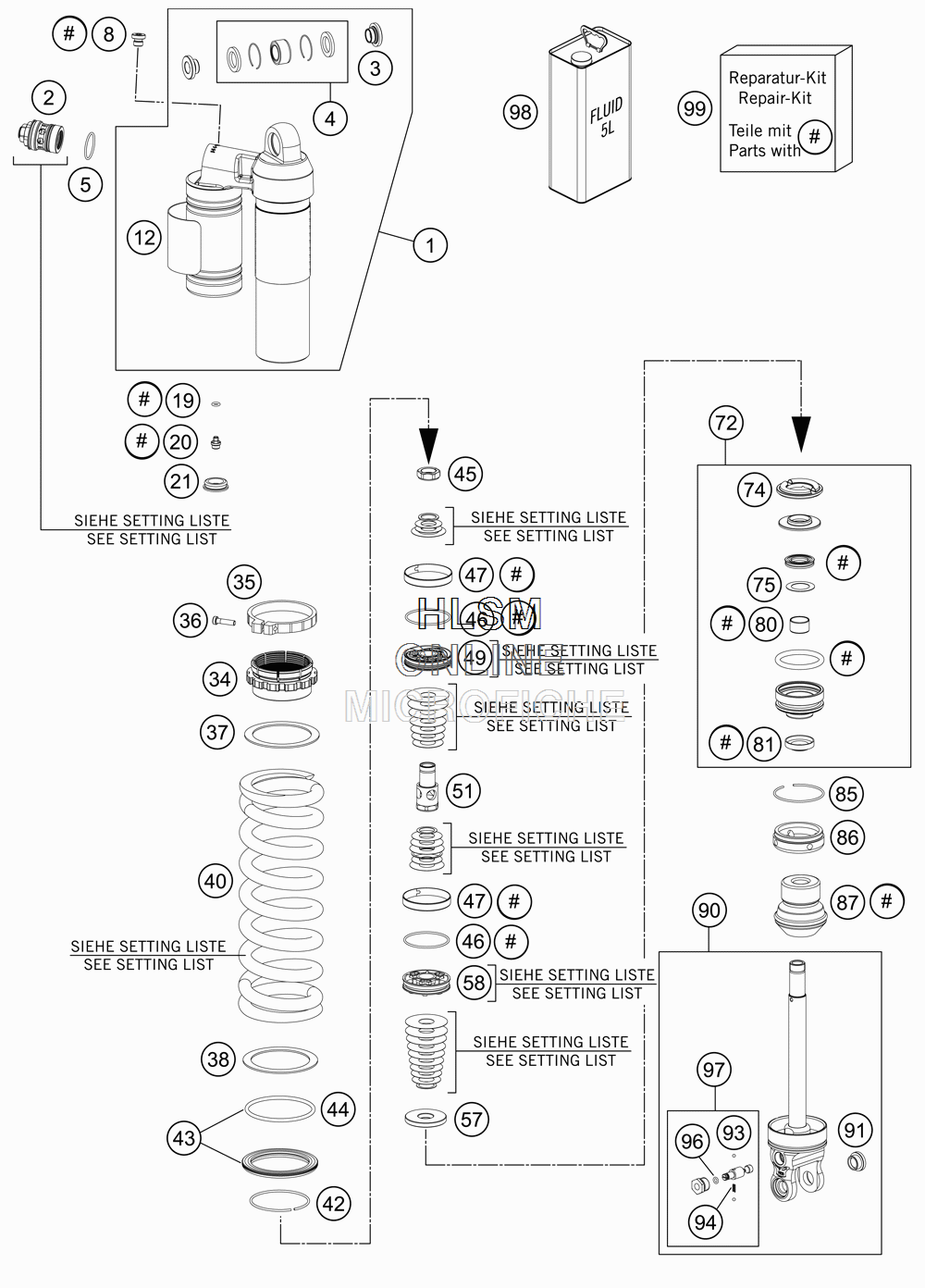

MONOSHOCK DISASSEMBLED для Ktm 300 XC-W - 2014 года выпуска
-
№АртикулНазвание
-
150180833SA2 MONOSHOCK UPPER PART CPL.MONOSHOCK UPPER PART CPL.
-
250180213S10 DCC-COMPR.DAMP.CONTROL CPL.DCC-COMPR.DAMP.CONTROL CPL.
-
346180007 ADAPTOR BUSH KGW 12X24ADAPTOR BUSH KGW 12X24
-
4R12012 REP. KIT BEAR./SEAL UP.REP. KIT BEAR./SEAL UP.
-
550180217 O-RING 27X1,5 VITONO-RING 27X1,5 VITON
-
850180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
1252000085 WP CAUTION (PDS KTM)WP CAUTION (PDS KTM)
-
1946810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
2036120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
2146811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
3450180938 ADJUSTING NUT PLASTICADJUSTING NUT PLASTIC
-
3550180937 TENSIONING RING D64 H10TENSIONING RING D64 H10
-
3614460042 %ALLENHEAD SCREW M5 L=20 STAIN%ALLENHEAD SCREW M5 L=20 STAIN
-
3750180965 SPACER RING SPRING 61,3X78X3SPACER RING SPRING 61,3X78X3
-
3850180114 SPACER RING FOR SPRINGSPACER RING FOR SPRING
-
4091210053S SPRING 250 63N/MM ORANGESPRING 250 63N/MM ORANGE
-
4091210054S SPRING 250 66N/MM ORANGESPRING 250 66N/MM ORANGE
-
4091210068S SPRING 250 69N/MM ORANGESPRING 250 69N/MM ORANGE
