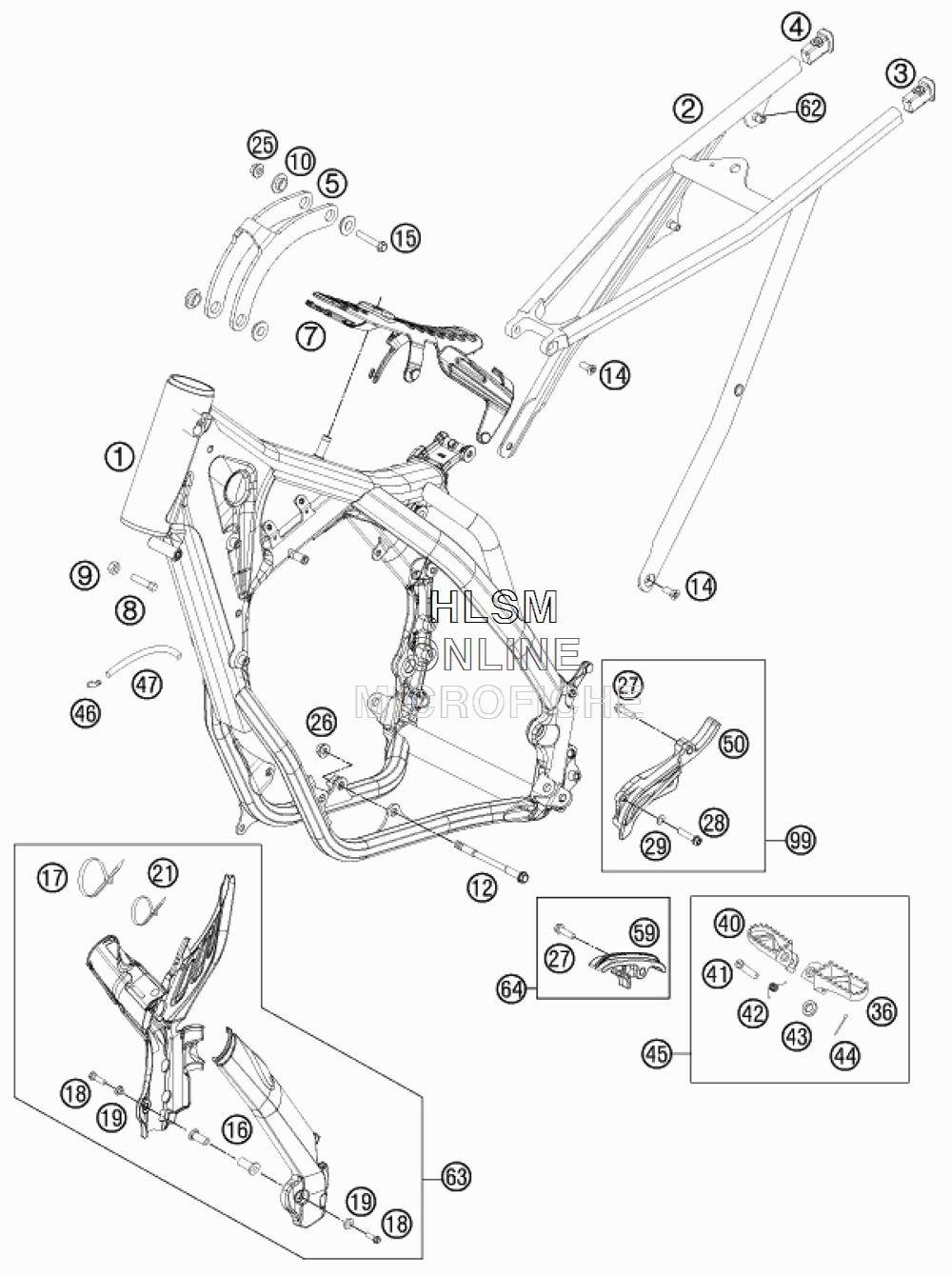

FRAME для Ktm 300 XC-W - 2014 года выпуска`

№

Артикул

Название
1

54803501100BE FRAME "548K4" ANTHRAZIT

FRAME "548K4" ANTHRAZIT

340 ₽
2

77203002000 SUB FRAME

SUB FRAME

97 690 ₽
3

78103002010 SUB FRAME APPLICATION LEFT

SUB FRAME APPLICATION LEFT

6 050 ₽
4

78103002020 SUB FRAME APPLICATION RIGHT

SUB FRAME APPLICATION RIGHT

5 490 ₽
5

54803513100 REINFORCING B.

REINFORCING B.

4 850 ₽
7

77207012000 TANK REST RUBBER

TANK REST RUBBER

2 160 ₽
8

59001037000 SPECIAL SCREW M8X26 WS=10

SPECIAL SCREW M8X26 WS=10

560 ₽
9

0934080003 HEXAGON NUT DIN0934-M 8

HEXAGON NUT DIN0934-M 8

320 ₽
10

54803013050 BUSHING F.REINFORCING

BUSHING F.REINFORCING

440 ₽
12

54603013000 ENGINE BRAC.SCR. M10X105 WS=13

ENGINE BRAC.SCR. M10X105 WS=13

2 980 ₽
14

0019080206S FLAT HEAD SCREW M. ISA45 M8X20

FLAT HEAD SCREW M. ISA45 M8X20

440 ₽
15

56530079000 HH COLLAR SCREW M 8X44 WS13

HH COLLAR SCREW M 8X44 WS13

530 ₽
16

54803092050 BLIND PLUG-IN NUT M5 WN 22A

BLIND PLUG-IN NUT M5 WN 22A

1 170 ₽
17

44011076305 CABLE TIE 300/4,8MM BLACK

CABLE TIE 300/4,8MM BLACK

290 ₽
18

0738050250 COU.SUNK SCR. AH ISO7380 M5X25

COU.SUNK SCR. AH ISO7380 M5X25

270 ₽
19

54803092060 BUSH F. FRAME PROTECTION

BUSH F. FRAME PROTECTION

820 ₽
21

44011076140 CABLE TIE 140/2,5MM BLACK

CABLE TIE 140/2,5MM BLACK

100 ₽
25

54310086200 SELF LOCKING NUT M8 10.9

SELF LOCKING NUT M8 10.9

500 ₽
26

54310086100 SELF LOCKING NUT M10 CU WS=14

SELF LOCKING NUT M10 CU WS=14

410 ₽
27

0025080306 HH COLLAR SCREW M8X30 TX40

HH COLLAR SCREW M8X30 TX40

700 ₽
28

0025060406 HH COLLAR SCREW M6X40 TX30

HH COLLAR SCREW M6X40 TX30

500 ₽
29

0125060003 WASHER DIN0125-A 6,4

WASHER DIN0125-A 6,4

120 ₽
36

78003040050 FOOTREST L/S

FOOTREST L/S

11 770 ₽
40

78003041050 FOOTREST R/S

FOOTREST R/S

11 770 ₽
41

54803044000 BOLT FOR FOOT PED

BOLT FOR FOOT PED

3 330 ₽
42

54603041000 FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

1 110 ₽
43

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
44

0094032253 PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

290 ₽
45

78003040033 FOOTREST L/S + R/S CPL.

FOOTREST L/S + R/S CPL.

31 340 ₽
46

50303089000 ANGLE PIECE

ANGLE PIECE

1 160 ₽
47

55007016001 PVC-HOSE 7X10 PER METER

PVC-HOSE 7X10 PER METER

1 640 ₽
50

54803096000 SPROCKET COVER

SPROCKET COVER

2 690 ₽
59

77203053000 CHAIN SLIDING PIECE BELOW

CHAIN SLIDING PIECE BELOW

2 080 ₽
62

77303139000 BLIND RIVET NUT EM6-60LF/HX

BLIND RIVET NUT EM6-60LF/HX

880 ₽
63

77203094000 PLASTIC FRAME PROTECTION SET

PLASTIC FRAME PROTECTION SET

14 050 ₽
64

77203053010 CHAIN SLIDING KIT BELOW CPL.

CHAIN SLIDING KIT BELOW CPL.

5 060 ₽
99

54803096010 SPROCKET COVER KIT

SPROCKET COVER KIT

4 560 ₽
