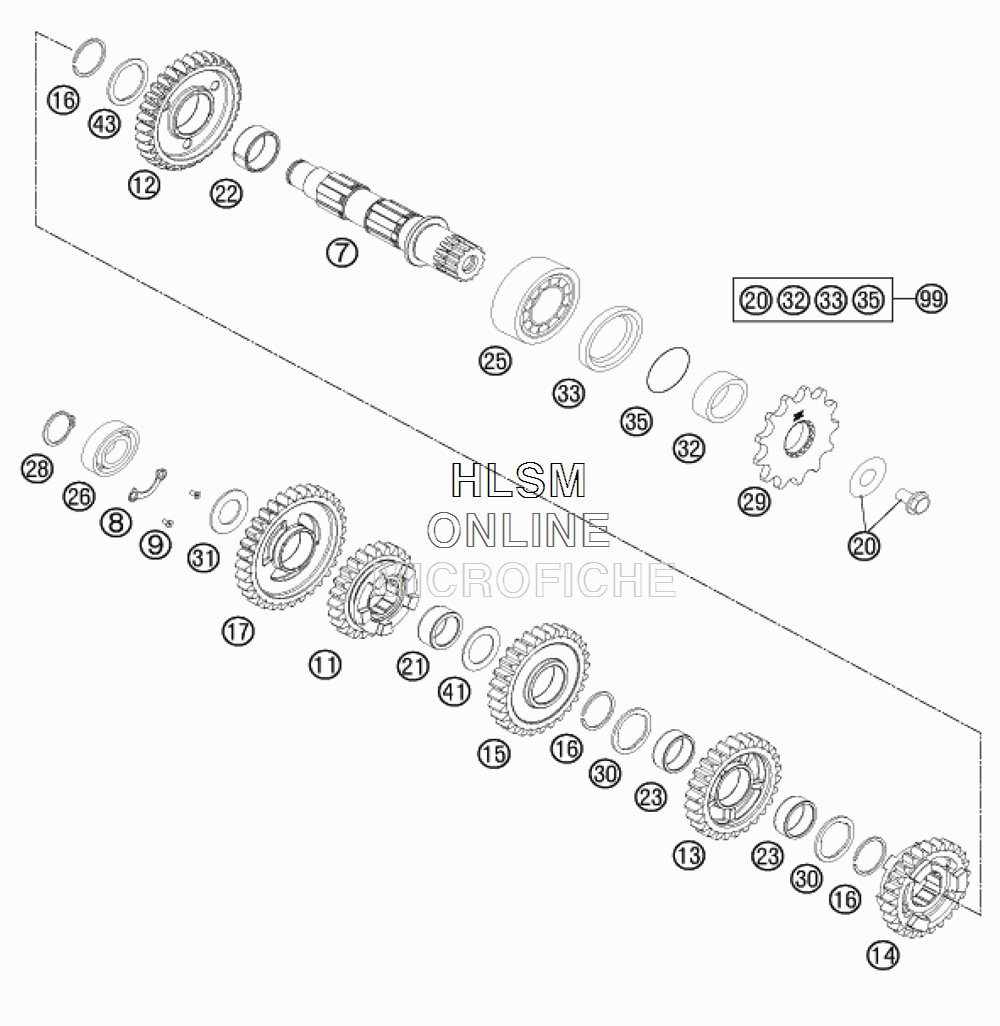

TRANSMISSION - COUNTERSHAFT для Ktm 250 XCF-W - 2014 года выпуска

  • №
    Артикул
    Название
  • 7
    77733110000 COUNTERSHAFT
    COUNTERSHAFT
  • 8
    78033132000 TAB WASHER BEARING COUNT.SHAFT
    TAB WASHER BEARING COUNT.SHAFT
  • 9
    0019050106 INT. TORX FLAT HEAD M5X10 10.9
    INT. TORX FLAT HEAD M5X10 10.9
  • 11
    77733116100 SLIDING GEAR 6.G., Z=22
    SLIDING GEAR 6.G., Z=22
  • 12
    77733112000 IDLER GEAR 2ND G. T=30
    IDLER GEAR 2ND G. T=30
  • 13
    77733114100 IDLER GEAR 4.G. Z=28
    IDLER GEAR 4.G. Z=28
  • 14
    77733115100 SLIDING GEAR 5.G.,Z=23
    SLIDING GEAR 5.G.,Z=23
  • 15
    77733113100 IDLER GEAR 3.G. Z=24
    IDLER GEAR 3.G. Z=24
  • 16
    0417024000 CIRCLIP WS24
    CIRCLIP WS24
  • 17
    77733011000 IDLER GEAR 1ST G. T=32
    IDLER GEAR 1ST G. T=32
  • 20
    59033034044 SCREW 10.9+SPRING WASHER
    SCREW 10.9+SPRING WASHER
  • 21
    0405202612 NEEDLE BEARING K 20X26X12
    NEEDLE BEARING K 20X26X12
  • 22
    0405242812 NEDDLE BEAR. K24X28X11,9 DIV.
    NEDDLE BEAR. K24X28X11,9 DIV.
  • 23
    0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED
    NEEDLE BEAR.K 22X26X10 DIVIDED
  • 25
    49030023000 CYL.ROLL BEARING NJ205
    CYL.ROLL BEARING NJ205
  • 26
    0625062035 BALL BEARING 6203 JR2 C3
    BALL BEARING 6203 JR2 C3
  • 28
    0471170015 CIRCLIP DIN 0471-17X1, 5
    CIRCLIP DIN 0471-17X1, 5
  • 29
    50033029013 FRONT SPROCKET 13-T
    FRONT SPROCKET 13-T
  • 29
    50033029014 FRONT SPROCKET 14-T
    FRONT SPROCKET 14-T
  • 30
    77733043000 STOP DISC 23,4X31X1,5
    STOP DISC 23,4X31X1,5
  • 31
    77233020000 STOP DISK 17,2X30X1,3
    STOP DISK 17,2X30X1,3
  • 32
    54633014100 SPACER BUSHING 12MM
    SPACER BUSHING 12MM
  • 33
    0760324571 SHAFT SEAL RING 32X45X7 BSLNBR
    SHAFT SEAL RING 32X45X7 BSLNBR
  • 35
    0770020220 O-RING 25,12X1,78 NBR70
    O-RING 25,12X1,78 NBR70
  • 41
    54833080000 STOP DISC 20,2X30X1
    STOP DISC 20,2X30X1
  • 43
    77733044000 STOP DISC 24X32X1,5
    STOP DISC 24X32X1,5
  • 99
    00050000941 COUNTER SHAFT REP.KIT 4 STROKE
    COUNTER SHAFT REP.KIT 4 STROKE
