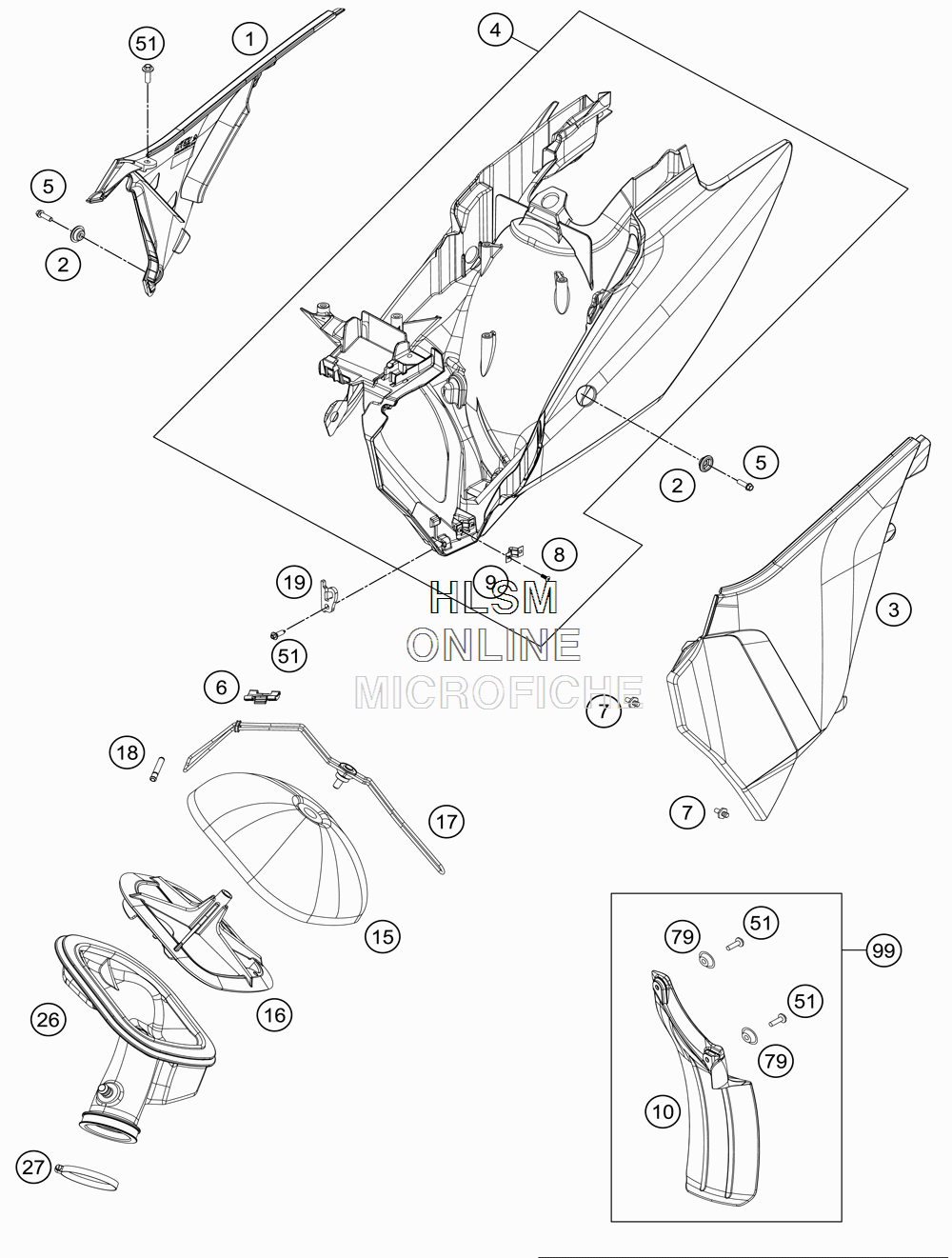

AIR BOX для Ktm 250 XCF-W - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    7770600410004D AIRFIL.BOX COV. R/S PDS (WITH DECAL)
    AIRFIL.BOX COV. R/S PDS (WITH DECAL)
  • 2
    77308013010 COLLAR BUSH. F.REAR FENDER
    COLLAR BUSH. F.REAR FENDER
  • 3
    7770600300004D AIRFIL.BOX COV. L/S PDS WITH DECAL
    AIRFIL.BOX COV. L/S PDS WITH DECAL
  • 4
    7770600104428 FILTER BOX CPL. WHITE
    FILTER BOX CPL. WHITE
  • 5
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 6
    77706017052 AIR BOX CLIP
    AIR BOX CLIP
  • 7
    54806008051 QUICK RELEASE-NIPPLE
    QUICK RELEASE-NIPPLE
  • 8
    54806108052 BLIND RIVET 3,3X9,7 GROOVED
    BLIND RIVET 3,3X9,7 GROOVED
  • 9
    54806008050 QUICK RELEASE-SPRING HANGER
    QUICK RELEASE-SPRING HANGER
  • 10
    77306010000 FENDER FOR FILTER BOX
    FENDER FOR FILTER BOX
  • 15
    77206015000 AIR FILTER
    AIR FILTER
  • 16
    77206016000 FILTER CARRIER
    FILTER CARRIER
  • 17
    77206017000 FILTER SUPPORT CPL.
    FILTER SUPPORT CPL.
  • 18
    77306018000 FILTER SUPPORT BUSH
    FILTER SUPPORT BUSH
  • 19
    77206019000 FASTEN. DEVICE FILTER S.
    FASTEN. DEVICE FILTER S.
  • 26
    77506026000 AIRBOXRUBBER 350 EFI
    AIRBOXRUBBER 350 EFI
  • 27
    78006027000 HOSE CLAMP 45-65MM
    HOSE CLAMP 45-65MM
  • 51
    0017060206 SCREW F. PLASTIC K60X20AL SW6
    SCREW F. PLASTIC K60X20AL SW6
  • 79
    77304066050 BUSHING F. CHAIN SLIDING PR.
    BUSHING F. CHAIN SLIDING PR.
  • 99
    77306010010 SPLASH PROTECTOR KIT
    SPLASH PROTECTOR KIT
