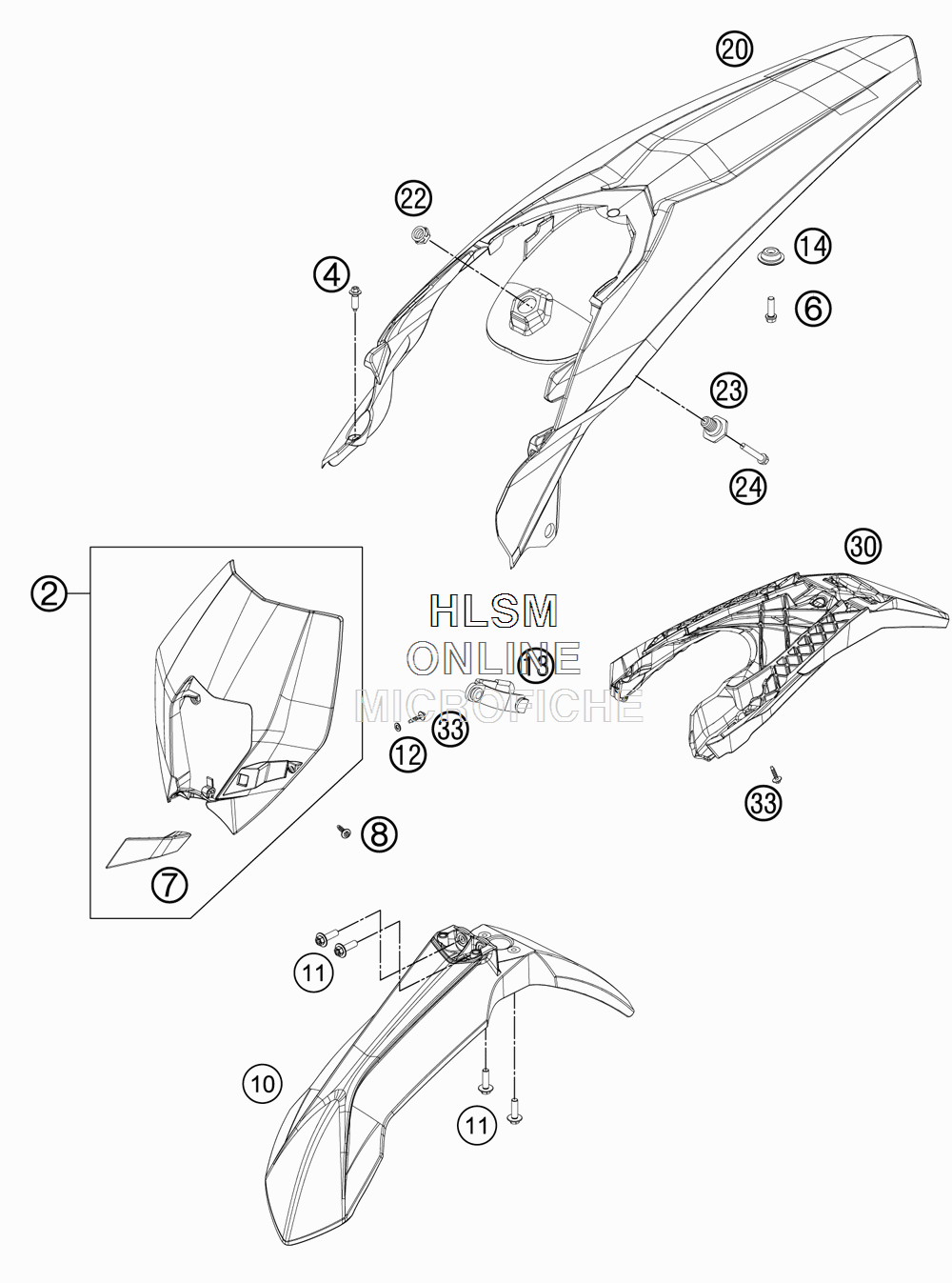

MASK FENDER для Ktm 200 XC - 2014 года выпуска

  • №
    Артикул
    Название
  • 2
    7810800100028 HEAD LIGHT MASK WHITE
    HEAD LIGHT MASK WHITE
  • 4
    0017060206 SCREW F. PLASTIC K60X20AL SW6
    SCREW F. PLASTIC K60X20AL SW6
  • 6
    0025050206 HH COLLAR SCREW M5X20 TX30
    HH COLLAR SCREW M5X20 TX30
  • 7
    7770802200030 BRAKE HOSE GUIDE BLACK 13
    BRAKE HOSE GUIDE BLACK 13
  • 8
    0081050181 SCREW FOR PLASTIC K50X18 T20
    SCREW FOR PLASTIC K50X18 T20
  • 10
    7770801000004 FRONT FENDER ORANGE 13
    FRONT FENDER ORANGE 13
  • 11
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 12
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 13
    78108003000 MASK RUBBER
    MASK RUBBER
  • 14
    77308013010 COLLAR BUSH. F.REAR FENDER
    COLLAR BUSH. F.REAR FENDER
  • 20
    7810801300004 REAR PART ORANGE
    REAR PART ORANGE
  • 22
    50314057050 COLLAR NUT M12X1/WS17 H=5MM
    COLLAR NUT M12X1/WS17 H=5MM
  • 23
    54807048000 BUSHING FOR SEAT FASTENING
    BUSHING FOR SEAT FASTENING
  • 24
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 30
    78108016000 NUMBER PLATE CARRIER TOP
    NUMBER PLATE CARRIER TOP
  • 33
    0017060205 SCREW FOR PLASTIC K60X20 SW6
    SCREW FOR PLASTIC K60X20 SW6
