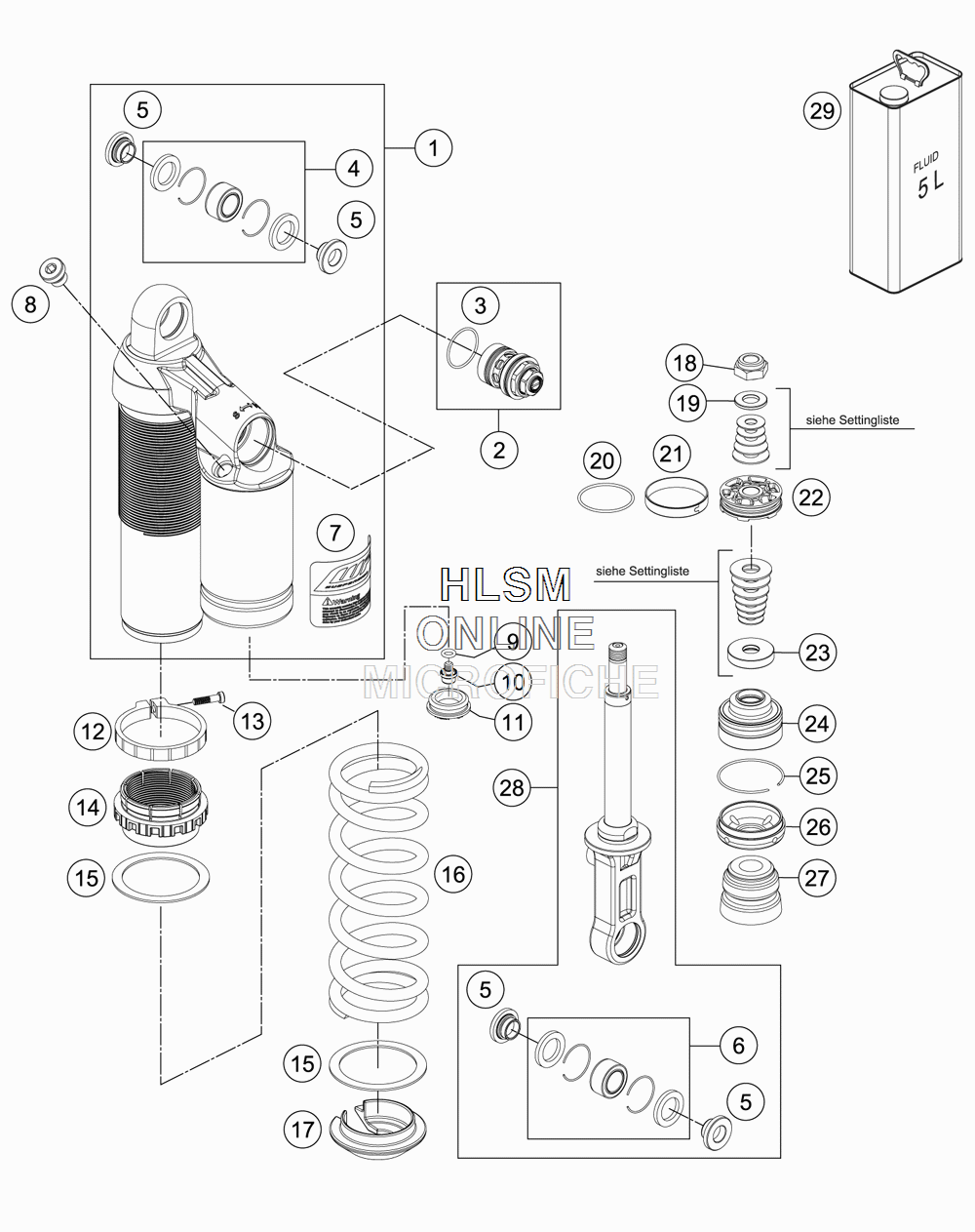

MONOSHOCK DISASSEMBLED для Ktm 1290 SUPER DUKE BLACK - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    46181028S1 MONOSHOCK UPPER PART
    MONOSHOCK UPPER PART
  • 2
    50180213S10 DCC-COMPR.DAMP.CONTROL CPL.
    DCC-COMPR.DAMP.CONTROL CPL.
  • 3
    50180217 O-RING 27X1,5 VITON
    O-RING 27X1,5 VITON
  • 4
    R12012 REP. KIT BEAR./SEAL UP.
    REP. KIT BEAR./SEAL UP.
  • 5
    46181138 BUSHING KGW 1525 14X32
    BUSHING KGW 1525 14X32
  • 6
    R15009 BEARING KIT KGW 1525 990 DUKE
    BEARING KIT KGW 1525 990 DUKE
  • 7
    52000087 STICKER WP MONOSHOCK
    STICKER WP MONOSHOCK
  • 8
    50180095 BLEED PLUG R 1/8
    BLEED PLUG R 1/8
  • 9
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 10
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 11
    46811208 RUBBER CAP "DO NOT OPEN"
    RUBBER CAP "DO NOT OPEN"
  • 12
    46181014 TENSIONING RING D64 H10
    TENSIONING RING D64 H10
  • 13
    14460042 ALLENHEAD SCREW M5 L=20 STAIN
    ALLENHEAD SCREW M5 L=20 STAIN
  • 14
    46181013 ADJUSTING NUT D46 PLASTIC
    ADJUSTING NUT D46 PLASTIC
  • 15
    50180410 INTERM.RING D=58
    INTERM.RING D=58
  • 16
    91010078S SPRING (59) 170-185 D
    SPRING (59) 170-185 D
  • 17
    46180396 SPRING RETAINER H=15 D=28
    SPRING RETAINER H=15 D=28
  • 18
    46180597 PISTON ROD NUT
    PISTON ROD NUT
  • 19
    46811258 RING 12X24X2,5
    RING 12X24X2,5
  • 20
    46810035 O-RING VITON 37,82X1,78
    O-RING VITON 37,82X1,78
  • 21
    46810361 PISTON RING
    PISTON RING
  • 22
    46810560 PISTON 6+6D7
    PISTON 6+6D7
  • 23
    46181117 REBOUND WASHER 34/12 H5
    REBOUND WASHER 34/12 H5
  • 24
    46180669S ADAPTOR CPL. D=46 H=28
    ADAPTOR CPL. D=46 H=28
  • 25
    46810010 CIRCLIP 49X1,5
    CIRCLIP 49X1,5
  • 26
    46181031 CAP D46 L=18MM
    CAP D46 L=18MM
  • 27
    46180365 BUMP RUBBER WP60 H=30 D=18-26
    BUMP RUBBER WP60 H=30 D=18-26
  • 28
    46180654S15 MONOSHOCK LOWER PART
    MONOSHOCK LOWER PART
  • 29
    50180751S1 SHOCK ABSORBER FLUID 5 LT
    SHOCK ABSORBER FLUID 5 LT
