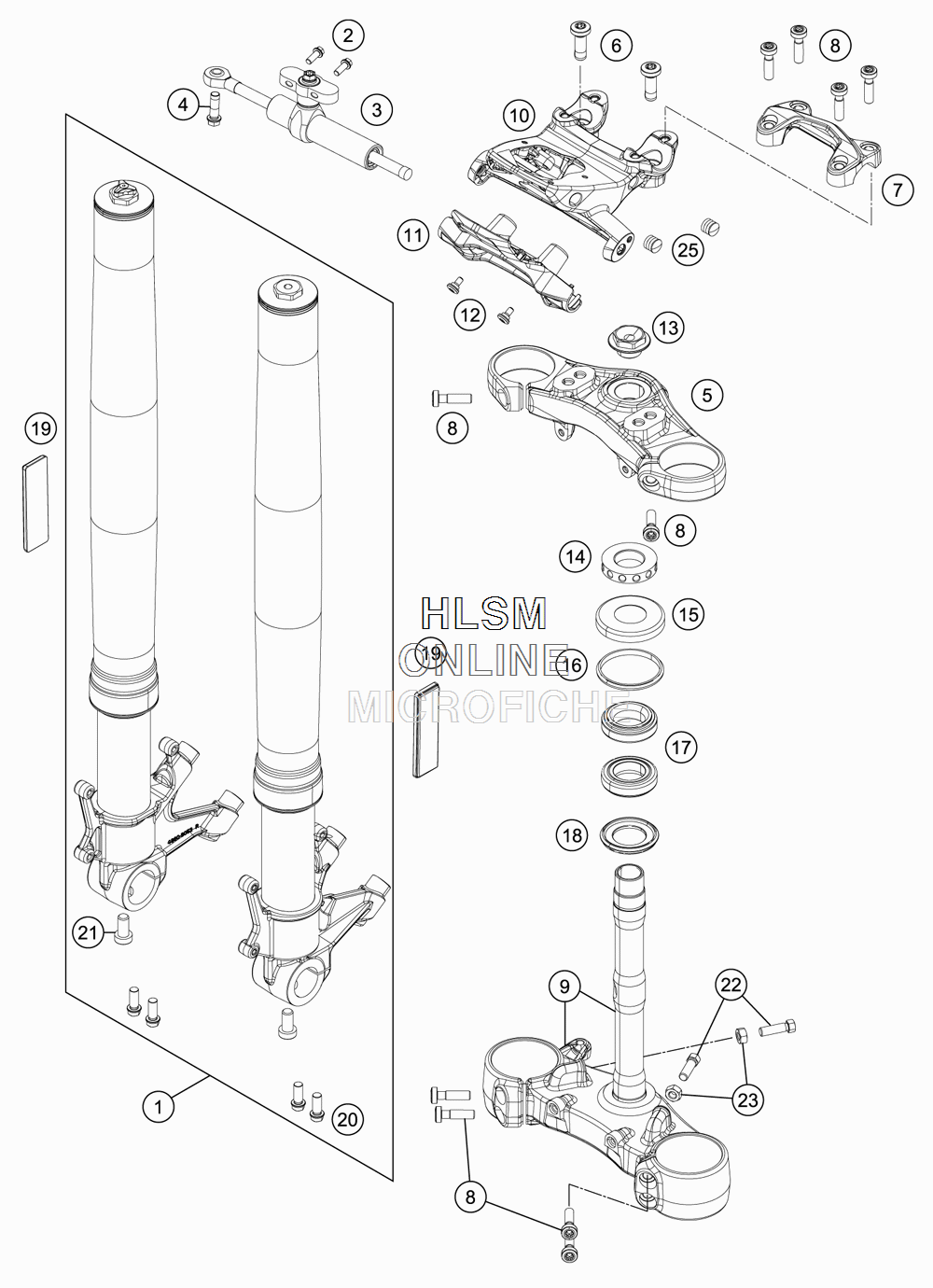

FRONT FORK для Ktm 1290 SUPER DUKE BLACK - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    14188N2201 FORK
    FORK
  • 2
    0025060206S HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 3
    16181N52ES STEERING DAMPER CPL. STROKE 75
    STEERING DAMPER CPL. STROKE 75
  • 4
    0025080256S HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 5
    6130103402933S TOP TRIPLE CLAMP
    TOP TRIPLE CLAMP
  • 6
    0035100309S AH-COLLAR SCREW M10X30 ISA45
    AH-COLLAR SCREW M10X30 ISA45
  • 7
    6130103800033S HANDLEBAR CLAMP
    HANDLEBAR CLAMP
  • 8
    0035080306 AH-COLLAR SCREW M8X30 ISA45
    AH-COLLAR SCREW M8X30 ISA45
  • 9
    6130103202933S BOTTOM TRIPLE CLAMP CPL.
    BOTTOM TRIPLE CLAMP CPL.
  • 10
    6130104304433 INSTRUMENTS BRACKET CPL.
    INSTRUMENTS BRACKET CPL.
  • 11
    61301046000 CASE INSTRUMENTS BRACKET
    CASE INSTRUMENTS BRACKET
  • 12
    69008021160 SPECIAL SCREW M5X12
    SPECIAL SCREW M5X12
  • 13
    6030103600001 STEER.HEAD SCREW M22X1,5 SW27
    STEER.HEAD SCREW M22X1,5 SW27
  • 14
    57301036000 STEER.HEAD NUT 660SM
    STEER.HEAD NUT 660SM
  • 15
    61001086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 16
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 17
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 18
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 19
    60012080000 SIDE REFLECTOR YELLOW
    SIDE REFLECTOR YELLOW
  • 20
    0025080206 HH COLLAR SCREW M8X20 TX40
    HH COLLAR SCREW M8X20 TX40
  • 21
    00501020S1 AH SCREW M10X20 SET
    AH SCREW M10X20 SET
  • 22
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 23
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 25
    55009086000 PLUG SFL13
    PLUG SFL13
