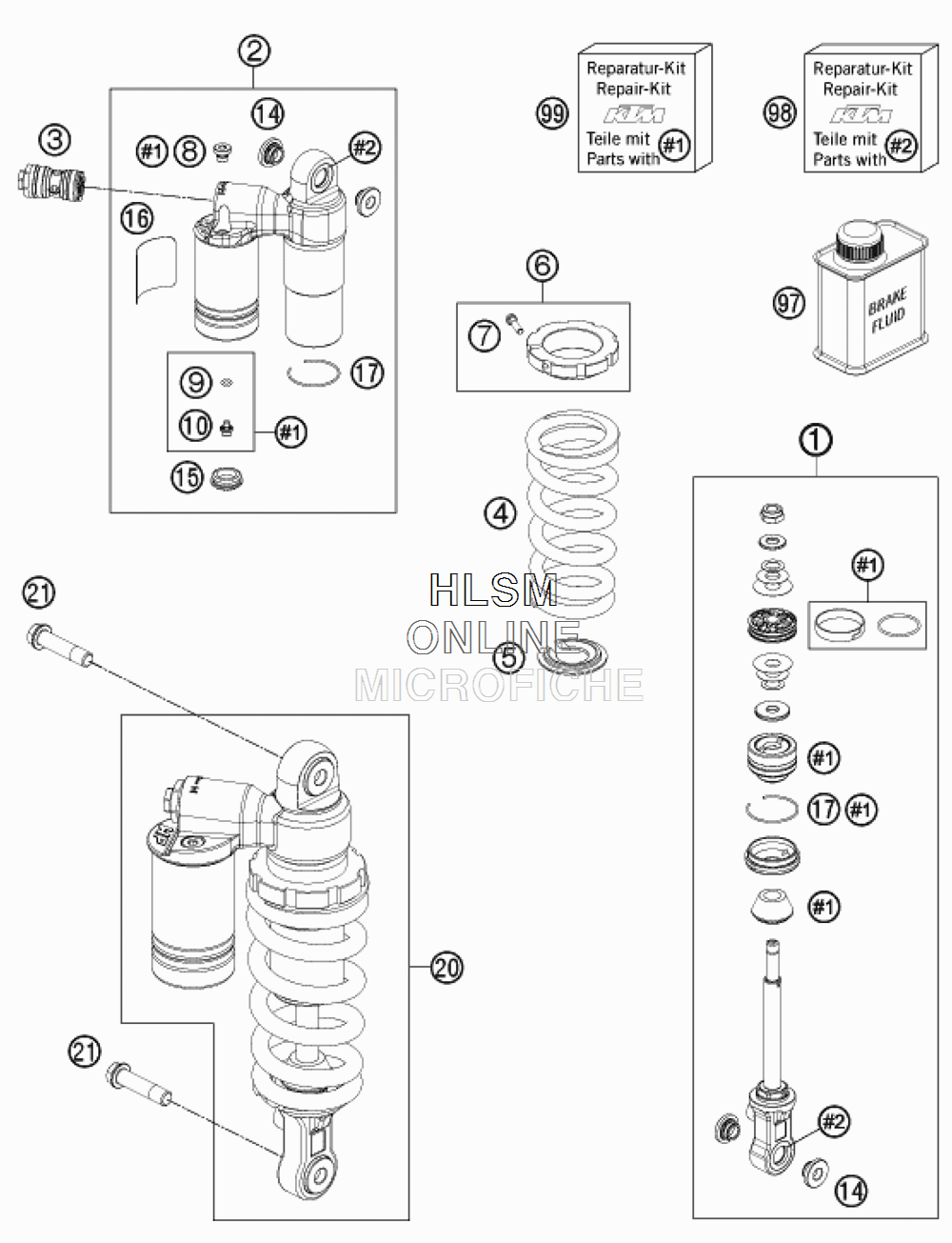

SHOCK ABSORBER для Ktm 1190 RC8 R - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    36120781S9 MONOSHOCK BOTTOM PART CPL.
    MONOSHOCK BOTTOM PART CPL.
  • 2
    40140493SA MONOSHOCK TOP PART CPL.
    MONOSHOCK TOP PART CPL.
  • 3
    46180533S2 DCC-COMPR.DAMP.CONTROL HS40
    DCC-COMPR.DAMP.CONTROL HS40
  • 4
    91750004S SPRING (55) 85 N/MM 160 D10,75
    SPRING (55) 85 N/MM 160 D10,75
  • 5
    36120559 SPRING RETAINER
    SPRING RETAINER
  • 6
    40140342S ADJUSTING RING + SCREW M5
    ADJUSTING RING + SCREW M5
  • 7
    0912050203 AH SCREW DIN0912-M 5X20
    AH SCREW DIN0912-M 5X20
  • 8
    50180095 BLEED PLUG R 1/8
    BLEED PLUG R 1/8
  • 9
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 10
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 14
    40140533 ADAPTER BUSHING 10X23
    ADAPTER BUSHING 10X23
  • 15
    46811208 RUBBER CAP "DO NOT OPEN"
    RUBBER CAP "DO NOT OPEN"
  • 16
    52000087 STICKER WP MONOSHOCK
    STICKER WP MONOSHOCK
  • 17
    40140332 CIRCLIP 43X1,5
    CIRCLIP 43X1,5
  • 20
    17187K0701 MONOSHOCK
    MONOSHOCK
  • 21
    69004089000 HH COLLAR SCREW M10X42 WS13
    HH COLLAR SCREW M10X42 WS13
  • 97
    50180751S1 SHOCK ABSORBER FLUID 5 LT
    SHOCK ABSORBER FLUID 5 LT
  • 98
    R12019 REPAIR KIT BEARING/SEAL
    REPAIR KIT BEARING/SEAL
  • 99
    R17005 REPAIR KIT
    REPAIR KIT
