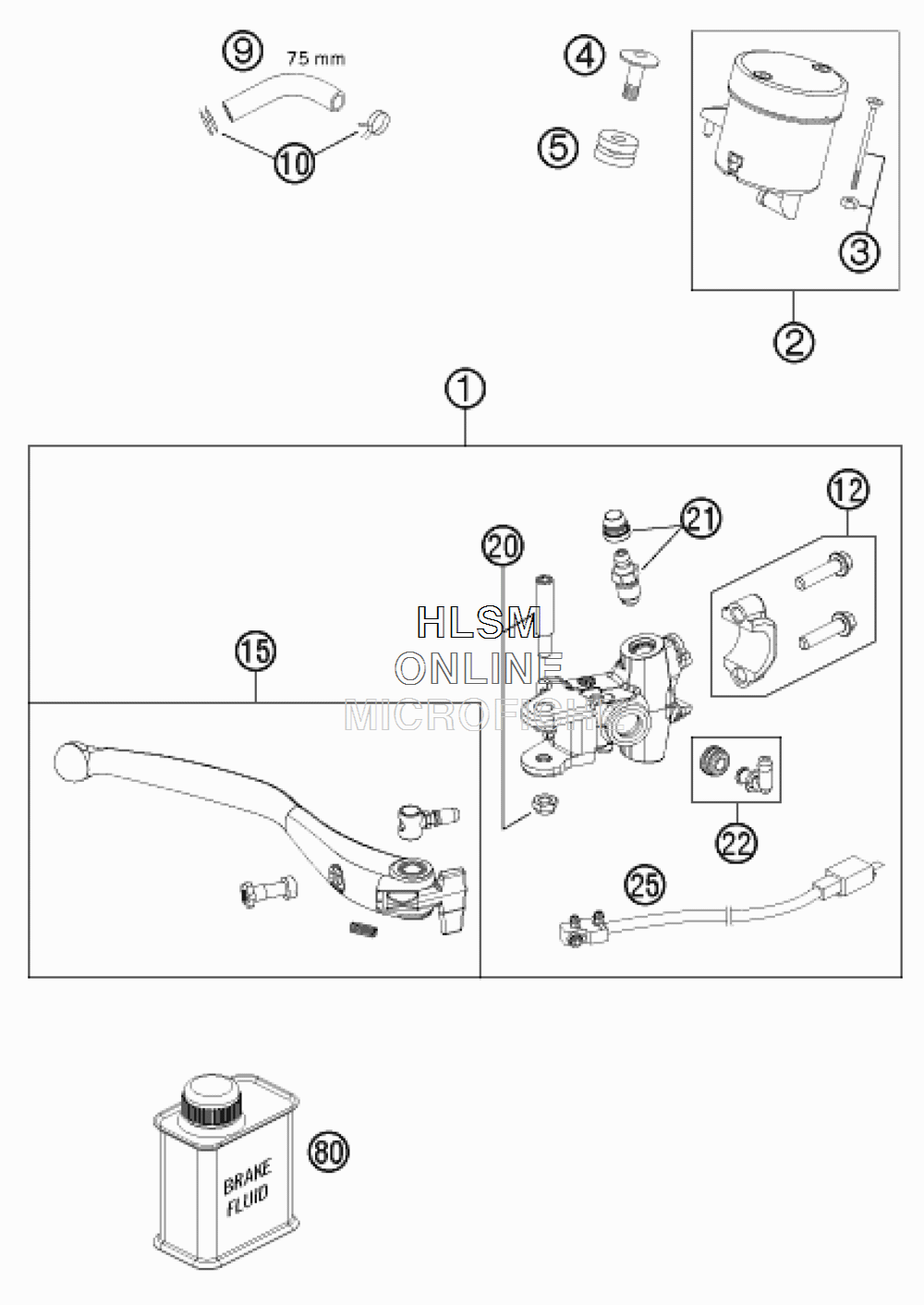

HAND BRAKE CYLINDER для Ktm 1190 RC8 R - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    69013001100 HAND BRAKE CYL. RADIAL 18MM
    HAND BRAKE CYL. RADIAL 18MM
  • 2
    61013009102 BRAKE FLUID RESERVOIR CPL.
    BRAKE FLUID RESERVOIR CPL.
  • 3
    61013009103 SCREW + NUT FOR RESERVOIR
    SCREW + NUT FOR RESERVOIR
  • 4
    61013013050 SCREW RET.PANEL-RESERVOIR
    SCREW RET.PANEL-RESERVOIR
  • 5
    61013013000 RUBBER BUSH
    RUBBER BUSH
  • 9
    69013069001 HOSE FOR RESERVOIR 6X1,5
    HOSE FOR RESERVOIR 6X1,5
  • 10
    58007017000 YDNAC CLAMP 10101 (10,4MM)
    YDNAC CLAMP 10101 (10,4MM)
  • 12
    69013005000 CLAMP CPL.
    CLAMP CPL.
  • 15
    61013002044 HAND BRAKE LEVER
    HAND BRAKE LEVER
  • 20
    61013006000 LEVER SCREW CPL.
    LEVER SCREW CPL.
  • 21
    60013020000 BLEEDER SCREW WITH CAP
    BLEEDER SCREW WITH CAP
  • 22
    54513155000 ANGLE PIECE
    ANGLE PIECE
  • 25
    61011050000 BRAKE LIGHT SWITCH FRONT
    BRAKE LIGHT SWITCH FRONT
  • 80
    00062030000 BRAKE FLUID DOT 5.1 0,25L
    BRAKE FLUID DOT 5.1 0,25L
