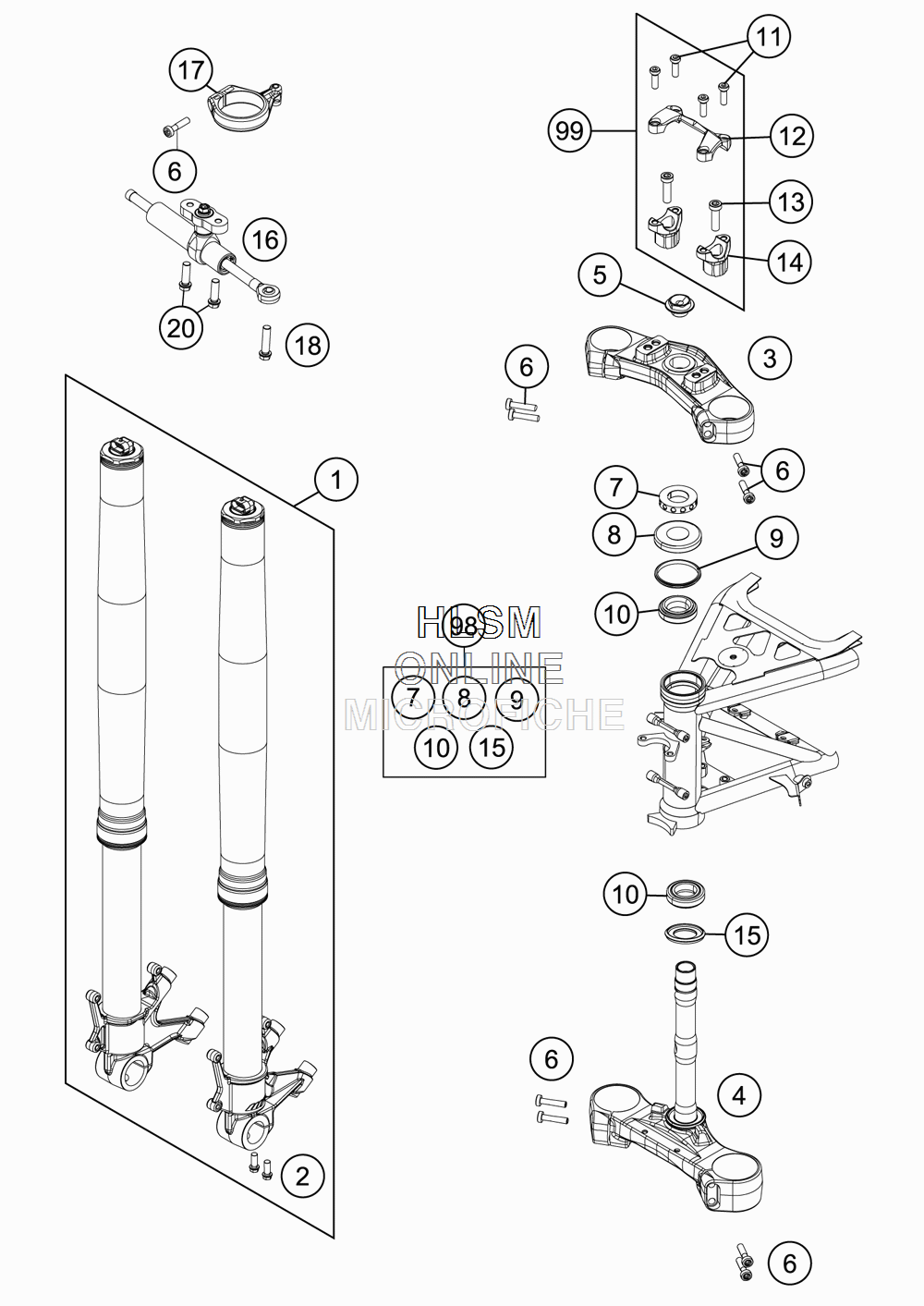

FRONT FORK - TRIPLE CLAMP для Ktm 1190 ADVENTURE SILVER - 2014 года выпуска`
-
№АртикулНазвание
-
114189M2401 FORK ADVENTURE EDSFORK ADVENTURE EDS
-
20025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
36030103403233S TOP TRIPLE CLAMPTOP TRIPLE CLAMP
-
46030103203233S BOTTOM TRIPLE CLAMP CPL.BOTTOM TRIPLE CLAMP CPL.
-
56030103600001 STEER.HEAD SCREW M22X1,5 SW27STEER.HEAD SCREW M22X1,5 SW27
-
60035080356 AH-COLLAR SCREW M8X35 ISA45AH-COLLAR SCREW M8X35 ISA45
-
757301036100 STEER.HEAD NUTSTEER.HEAD NUT
-
861001086000 STEERING HEAD COVERSTEERING HEAD COVER
-
954601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
1054201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
110025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
127720103800030 HANDLEB AR CLAMP 28MMHANDLEB AR CLAMP 28MM
-
130032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
145940103903730 HANDLEB .SUPP . D=28MM H=37MMHANDLEB .SUPP . D=28MM H=37MM
-
1577701084000 O-RING SUPPORT W/ SEALING LIPO-RING SUPPORT W/ SEALING LIP
-
1616181N53ES STEERING DAMPER CPL.STEERING DAMPER CPL.
-
176031200700033S CLAMP STEERING DAMPERCLAMP STEERING DAMPER
-
180025080256S HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
200025080206S HH COLLAR SCREW M8X20 ISA40HH COLLAR SCREW M8X20 ISA40
-
9860301081010 STEARING HEAD REP . KIT 1190ADVSTEARING HEAD REP . KIT 1190ADV
-
9900050000927 HANDLEBAR SUPPORT KITHANDLEBAR SUPPORT KIT
