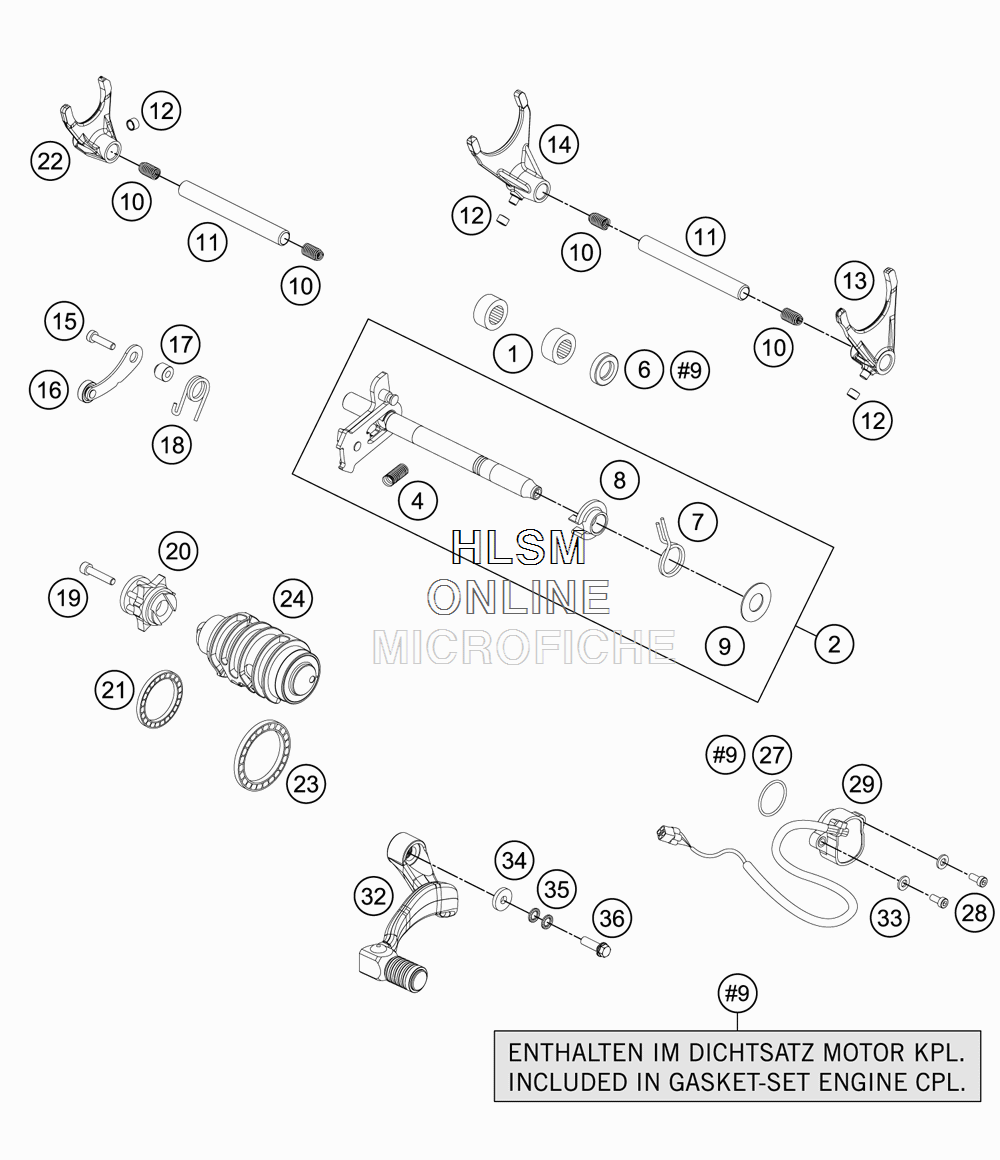

SHIFTING MECHANISM для Ktm 1190 ADVENTURE SILVER - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    54632095000 NEEDLE BEAR. HK 1412 14X20X12
    NEEDLE BEAR. HK 1412 14X20X12
  • 2
    61234005333 SHIFT SHAFT CPL.
    SHIFT SHAFT CPL.
  • 4
    56534013100 TENSIONING SPRING 0,8MM
    TENSIONING SPRING 0,8MM
  • 6
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 7
    61234014000 RETURNS PRING 2MM
    RETURNS PRING 2MM
  • 8
    54634020000 SPRING GUIDE
    SPRING GUIDE
  • 9
    54634050000 STOP DISK 14X30X1
    STOP DISK 14X30X1
  • 10
    58038023200 PRESSURE SPRING 0,9MM
    PRESSURE SPRING 0,9MM
  • 11
    59034020000 SHIFT RAIL 11,8X105MM
    SHIFT RAIL 11,8X105MM
  • 12
    50334018100 SHIFTING ROLLER 6X8X5,2
    SHIFTING ROLLER 6X8X5,2
  • 13
    61234002100 SHIFT FORK 2-3 GEAR
    SHIFT FORK 2-3 GEAR
  • 14
    61234001000 SHIFTING FORK
    SHIFTING FORK
  • 15
    0024060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 16
    75034024044 LOCKING LEVER CPL.
    LOCKING LEVER CPL.
  • 17
    75034052000 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 18
    61234023000 SPRING - LOCKING LEVER
    SPRING - LOCKING LEVER
  • 19
    0912060303 AH SCREW DIN0912-M 6X30
    AH SCREW DIN0912-M 6X30
  • 20
    61234015444 SHIFT DRUM LOCA TING CPL.
    SHIFT DRUM LOCA TING CPL.
  • 21
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 22
    61234003200 SHIFT FORK 5-6 GEAR
    SHIFT FORK 5-6 GEAR
  • 23
    0625068080 GROOVED BALL BEARING 6808 JRC3
    GROOVED BALL BEARING 6808 JRC3
  • 24
    60234012100 SHIFTING DRUM CPL.
    SHIFTING DRUM CPL.
  • 27
    07700240251 O-RING 24X2,5 VITON
    O-RING 24X2,5 VITON
  • 28
    0984050163S CYL. SCREW DIN6912 M5X16 8.8
    CYL. SCREW DIN6912 M5X16 8.8
  • 29
    60211023100 GEAR-POS ITION SENSOR
    GEAR-POS ITION SENSOR
  • 32
    6003403104433S SHIFTING LEVER CPL.
    SHIFTING LEVER CPL.
  • 33
    0125050003 WASHER DIN0125-A 5,3
    WASHER DIN0125-A 5,3
  • 34
    50232050001 STEEL W ASHER 6,4X17X3
    STEEL W ASHER 6,4X17X3
  • 35
    50233041000 P AIR OF W ASHERS M 6 NORDLOCK
    P AIR OF W ASHERS M 6 NORDLOCK
  • 36
    59009062019 SPECIAL SCREW M6X19 WS=8 10.9
    SPECIAL SCREW M6X19 WS=8 10.9
