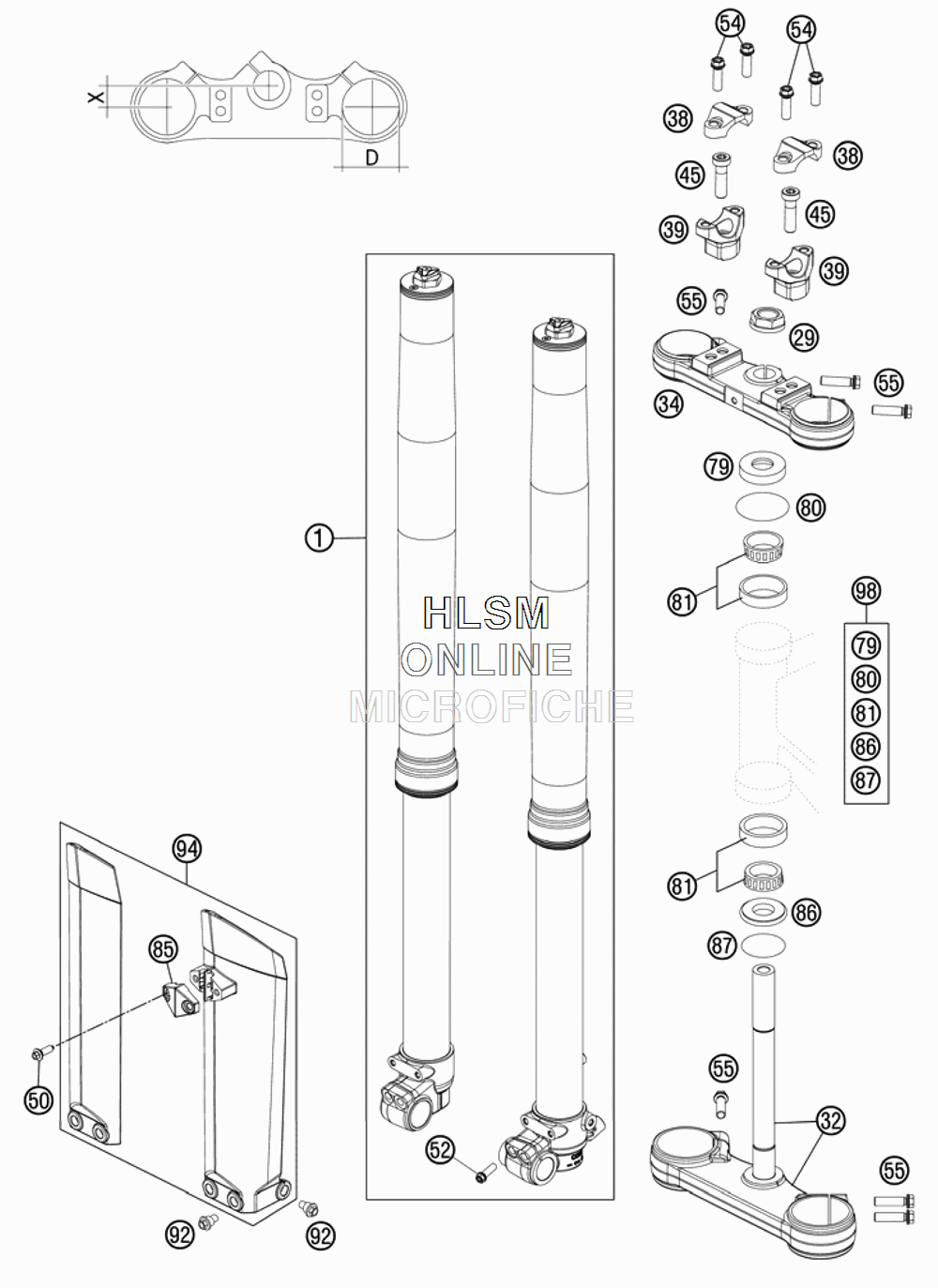

FRONT FORK TRIPLE CLAMP для Ktm 85 SX 17/14 - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    05187M0501 FORK WP
    FORK WP
  • 29
    59030029000 HH NUT M20X1,5 WS=27 RIGHT
    HH NUT M20X1,5 WS=27 RIGHT
  • 32
    47001032014 BOT.TRIPLE CLAMP CPL.
    BOT.TRIPLE CLAMP CPL.
  • 34
    47101034014 TOP FORK PLATE
    TOP FORK PLATE
  • 38
    77201038000 HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 39
    59401039037 HANDLEB.SUPP. D=28MM H=37MM
    HANDLEB.SUPP. D=28MM H=37MM
  • 45
    0032100356S AH-COLLAR SCREW M10X35 ISA45
    AH-COLLAR SCREW M10X35 ISA45
  • 50
    0017060204 EJOT PT SCREW K60X20 ALU WS=6
    EJOT PT SCREW K60X20 ALU WS=6
  • 52
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 54
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 55
    0025080306 HH COLLAR SCREW M8X30 TX40
    HH COLLAR SCREW M8X30 TX40
  • 79
    49001086000 COVERING CAP
    COVERING CAP
  • 80
    0770021300 O-RING 40,94X2,62 NBR70
    O-RING 40,94X2,62 NBR70
  • 81
    49001081000 TAPERED ROLLER BEARING 32004X
    TAPERED ROLLER BEARING 32004X
  • 85
    7800108500028 CLAMP F. SPEED. CABLE D=6MM
    CLAMP F. SPEED. CABLE D=6MM
  • 86
    46001086000 PROTECTION RING 20,1X39X5
    PROTECTION RING 20,1X39X5
  • 87
    0770360030 O-RING 36,00X3,00 NBR
    O-RING 36,00X3,00 NBR
  • 92
    59001092050 SPECIAL SCREW M6X12,5 WS=8
    SPECIAL SCREW M6X12,5 WS=8
  • 94
    4710109400028 FORK PROTECTOR SET 85SX WHITE
    FORK PROTECTOR SET 85SX WHITE
  • 98
    00050000931 STEARING HEAD REP. KIT
    STEARING HEAD REP. KIT
