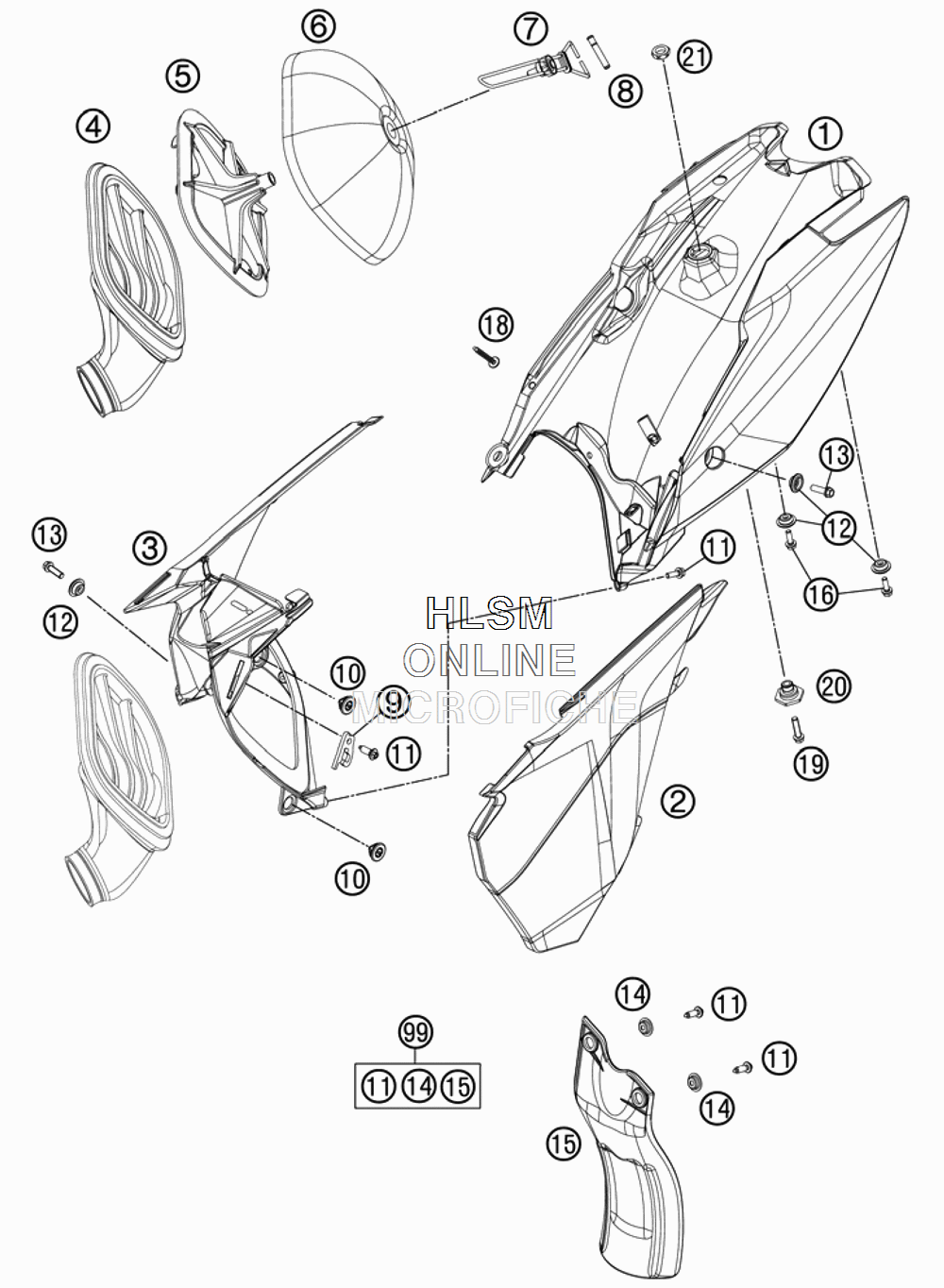

AIRBOX для Ktm 85 SX 17/14 - 2013 года выпуска
-
№АртикулНазвание
-
14710600105228 FILTER BOX PART REAR WHITEFILTER BOX PART REAR WHITE
-
24710600300004A FILTER COVER ORANGEFILTER COVER ORANGE
-
34710600101004 AIR BOX PART ORANGEAIR BOX PART ORANGE
-
447106026000 CARBURETOR CONNECTINGCARBURETOR CONNECTING
-
577206016000 FILTER CARRIERFILTER CARRIER
-
677206015000A AIR FILTERAIR FILTER
-
747106017000 AIR FILTER SUPPORT BRACKET CPLAIR FILTER SUPPORT BRACKET CPL
-
877306018000 FILTER SUPPORT BUSHFILTER SUPPORT BUSH
-
947106019000 FASTEN. DEVICE FILTER SUPPORTFASTEN. DEVICE FILTER SUPPORT
-
1047106003060 QUICK RELEASE CLUTCHQUICK RELEASE CLUTCH
-
110017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
1277308013010 COLLAR BUSH. F.REAR FENDERCOLLAR BUSH. F.REAR FENDER
-
130025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
1446104066050 BUSH FOR CHAINSLIDER GUARDBUSH FOR CHAINSLIDER GUARD
-
1547106010000 SPLASH PROTECTIONSPLASH PROTECTION
-
160025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
180017060403 SPECIAL SCREW T60 6X40 WS=6SPECIAL SCREW T60 6X40 WS=6
-
190025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
2054807048000 BUSHING FOR SEAT FASTENINGBUSHING FOR SEAT FASTENING
-
2150314057050 COLLAR NUT M12X1/WS17 H=5MMCOLLAR NUT M12X1/WS17 H=5MM
-
9947106010010 SPLASH PROTECTOR KITSPLASH PROTECTOR KIT
