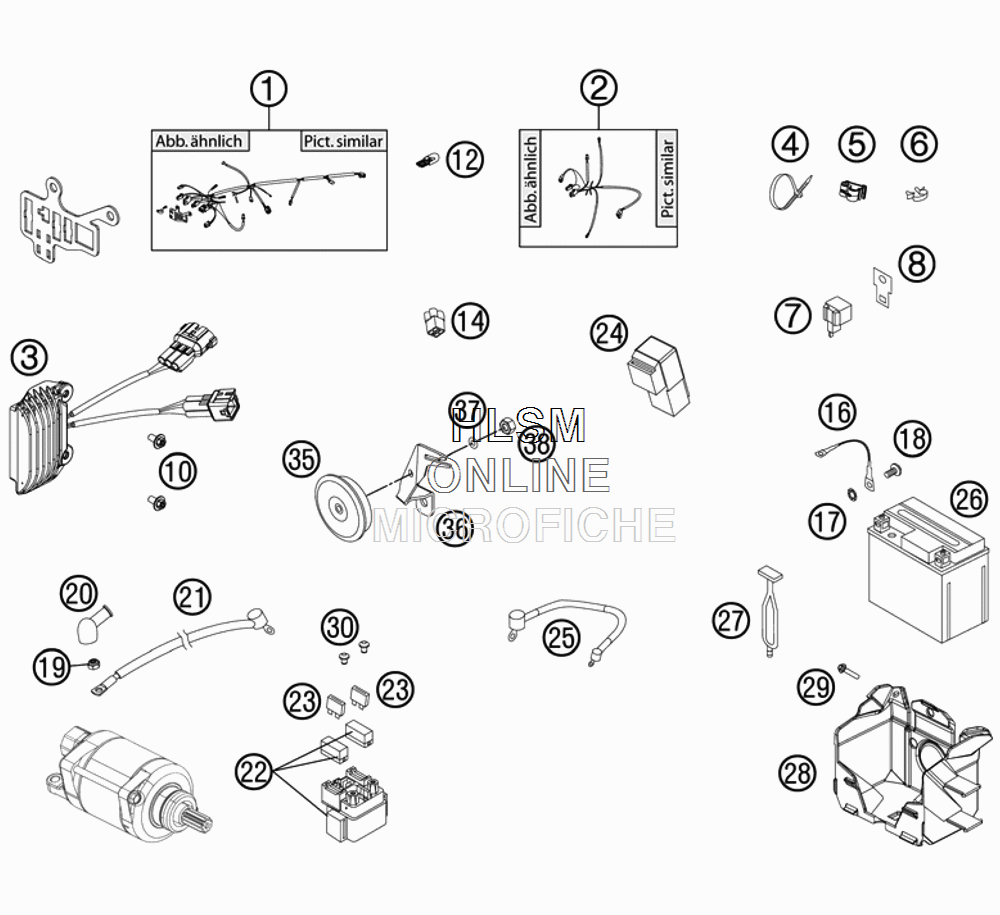

WIRING HARNESS для Ktm 350 EXC-F - 2013 года выпуска`
-
№АртикулНазвание
-
178111175033 WIRING HARN. EFI VMT. (USA)WIRING HARN. EFI VMT. (USA)
-
278111079000 WIR.HARN.LIGHT EFI KPL. (EUROPE)WIR.HARN.LIGHT EFI KPL. (EUROPE)
-
378111034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
444011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
444011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
444011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
583013026000 CABLE GUIDECABLE GUIDE
-
657013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
744611207200 FLASHER UNITFLASHER UNIT
-
858211031100 BRACKET FOR FLASHER RELAYBRACKET FOR FLASHER RELAY
-
100023060123 COLLAR SCREW M6X12 TXCOLLAR SCREW M6X12 TX
-
1249111425200 BULB 12V 2,3W (W2X4,6D)BULB 12V 2,3W (W2X4,6D)
-
1481211096000 DUMMY PLUG AN 4-PINDUMMY PLUG AN 4-PIN
-
1658411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
1758411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
180009050106 EJOT SPIRAL SCREW SF M5X10-KEJOT SPIRAL SCREW SF M5X10-K
-
190985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
2077240099000 PROTECTION CAP F. STARTER ENG.PROTECTION CAP F. STARTER ENG.
-
2158411059100 STARTERCABLE 700 MMSTARTERCABLE 700 MM
-
2258211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
2358011109120 FUSE 20 AFUSE 20 A
-
2461111057000 RELAY CM1A-R-12V-H80RELAY CM1A-R-12V-H80
-
2558711086000 WIRING HARNESS BATTERY DUKEWIRING HARNESS BATTERY DUKE
-
2677311053000 BATTERY 12V 3AH YTX4L-BSBATTERY 12V 3AH YTX4L-BS
-
2750303018000 RUBBER L=145MMRUBBER L=145MM
-
2877211055000 BATTERY BOXBATTERY BOX
-
290017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
300902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
3550311060200 DC HORN 12VDC HORN 12V
-
3678011061000 HORN BRACKET EXCHORN BRACKET EXC
-
370125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
380934050003 HEXAGON NUT DIN0934-N0934 -M 5HEXAGON NUT DIN0934-N0934 -M 5
