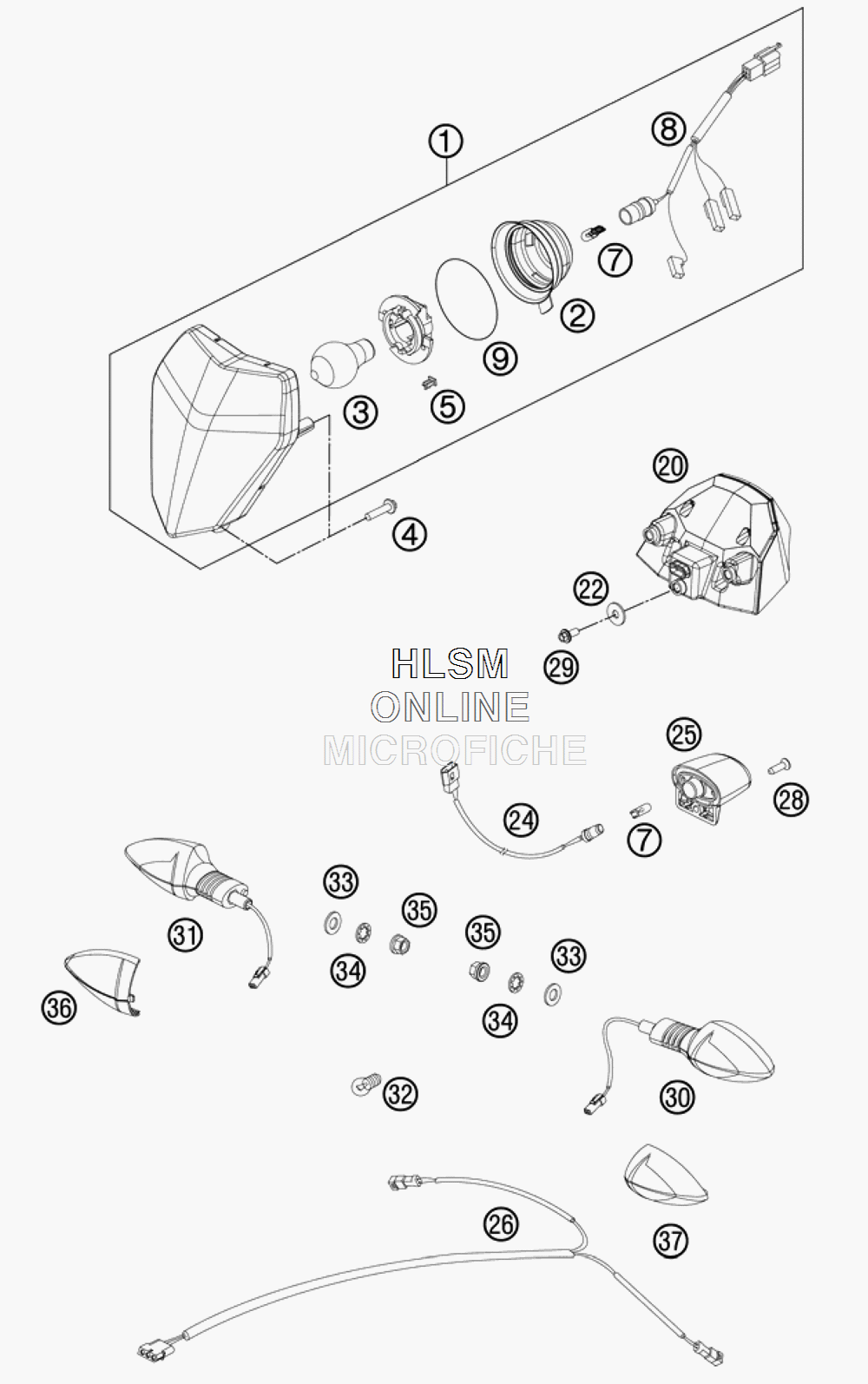

LIGHTING SYSTEM для Ktm 350 EXC-F - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    78014001000 HEAD LIGHT CPL.
    HEAD LIGHT CPL.
  • 2
    54814001050 RUBBER CAP FOR HEAD LIGHT
    RUBBER CAP FOR HEAD LIGHT
  • 3
    44111038000 BILUX-BULB 12V 35/35W BA20D
    BILUX-BULB 12V 35/35W BA20D
  • 4
    0081050181 SCREW FOR PLASTIC K50X18 T20
    SCREW FOR PLASTIC K50X18 T20
  • 5
    78014009000 DRAIN HOLE COVER
    DRAIN HOLE COVER
  • 7
    49011435100 BULB 12V 5W (W2,1X9,5D) PHIL.
    BULB 12V 5W (W2,1X9,5D) PHIL.
  • 8
    54811001050 CABLE FOR HEAD LIGHT
    CABLE FOR HEAD LIGHT
  • 9
    0770350032 O-RING 35,00X32,00 NBR
    O-RING 35,00X32,00 NBR
  • 20
    83014140000 REAR LIGHT
    REAR LIGHT
  • 22
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 24
    76511078000 WIRING HARN. LIC. PLATE ILLUM.
    WIRING HARN. LIC. PLATE ILLUM.
  • 25
    75014047000 LICENSE PLATE ILLUMINATION
    LICENSE PLATE ILLUMINATION
  • 26
    77411081000 REAR FLASHER WIR. HARNESS
    REAR FLASHER WIR. HARNESS
  • 28
    0081250181 SCREW FOR PLASTIC 50X18 T20
    SCREW FOR PLASTIC 50X18 T20
  • 29
    0017060253 EJOT PT SCREW K60X25-Z SW=6
    EJOT PT SCREW K60X25-Z SW=6
  • 30
    78114025000 FLASHER CPL.FRONT L/S REAR R/S
    FLASHER CPL.FRONT L/S REAR R/S
  • 31
    78114026000 FLASHER CPL.FRONT R/S REAR L/S
    FLASHER CPL.FRONT R/S REAR L/S
  • 32
    44111015100 BULB 12V 10W (BA15S)
    BULB 12V 10W (BA15S)
  • 33
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 34
    0797100003 LOCK WASHER DIN6797-J10,5 ZI
    LOCK WASHER DIN6797-J10,5 ZI
  • 35
    58414030000 HH COLLAR NUT M10X1,25 WS=13
    HH COLLAR NUT M10X1,25 WS=13
  • 36
    78114028000 FLASHER LENS L/S R/S TRANSP.
    FLASHER LENS L/S R/S TRANSP.
  • 37
    78114027000 FLASHER LENS FRO.L/S-REAR R/S
    FLASHER LENS FRO.L/S-REAR R/S
