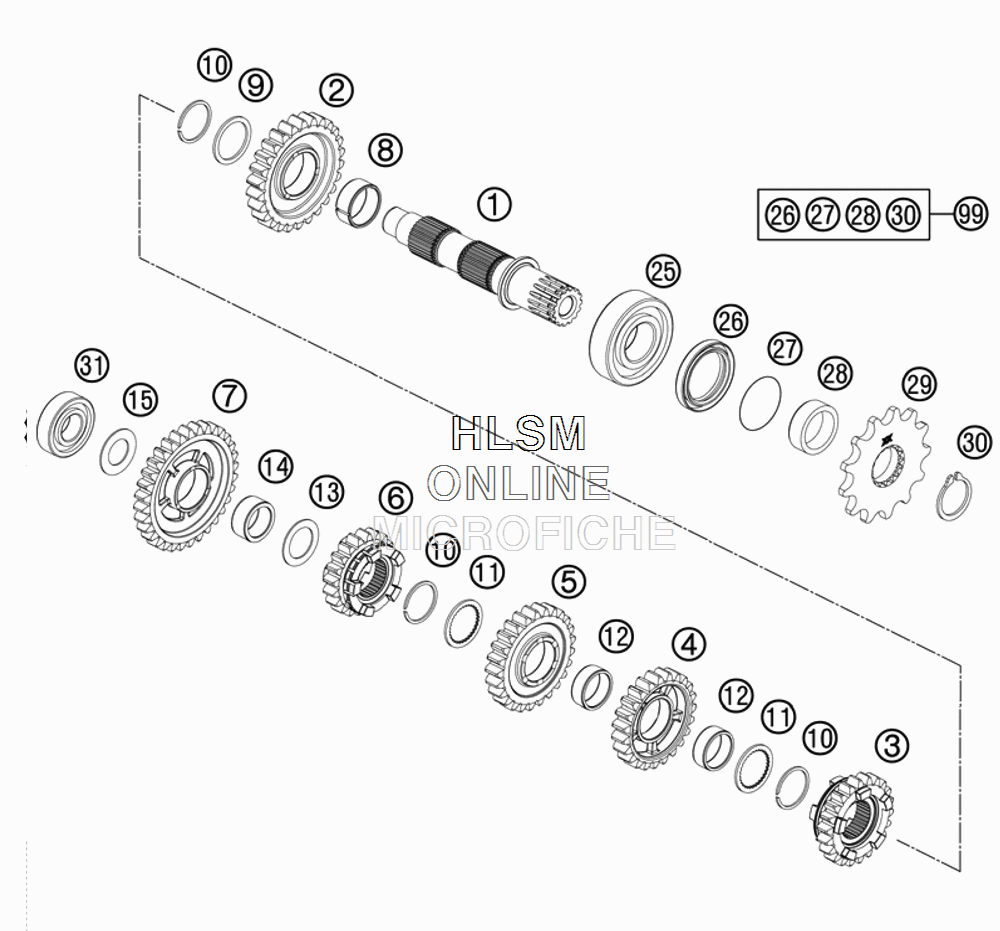

TRANSMISSION - COUNTER SHAFT для Ktm 250 XC - 2013 года выпуска

№

Артикул

Название
1

54833210100 COUNTER SHAFT CPL.

COUNTER SHAFT CPL.

28 210 ₽
2

54833312000 IDLER GEAR 2. GEAR, 25

IDLER GEAR 2. GEAR, 25

21 470 ₽
3

54833215000 SLIDING GEAR 5.G., Z=22

SLIDING GEAR 5.G., Z=22

21 730 ₽
4

54833214000 IDLER GEAR 4.G., Z=23

IDLER GEAR 4.G., Z=23

21 610 ₽
5

54833213000 IDLER GEAR 3.G., Z= 25

IDLER GEAR 3.G., Z= 25

24 010 ₽
6

54833216000 SLIDING GEAR 6.G., Z=20

SLIDING GEAR 6.G., Z=20

28 650 ₽
7

54833311000 IDLER GEAR 1. GEAR, 31

IDLER GEAR 1. GEAR, 31

20 650 ₽
8

0405242812 NEDDLE BEAR. K24X28X11,9 DIV.

NEDDLE BEAR. K24X28X11,9 DIV.

1 670 ₽
9

54833044000 STOP DISC 25X31X1,5

STOP DISC 25X31X1,5

1 030 ₽
10

0417024000 CIRCLIP WS24

CIRCLIP WS24

320 ₽
11

54833043000 STOP DISC 25X0,8X30X30X7H

STOP DISC 25X0,8X30X30X7H

1 200 ₽
12

0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED

NEEDLE BEAR.K 22X26X10 DIVIDED

3 130 ₽
13

54833080000 STOP DISC 20,2X30X1

STOP DISC 20,2X30X1

640 ₽
14

0405202612 NEEDLE BEARING K 20X26X12

NEEDLE BEARING K 20X26X12

2 950 ₽
15

56033030000 STOP DISC 17,2X30X1

STOP DISC 17,2X30X1

970 ₽
25

54833025000 BALL BEARING TM-SC05C20C4 NTN

BALL BEARING TM-SC05C20C4 NTN

17 290 ₽
26

0760324571 SHAFT SEAL RING 32X45X7 BSLNBR

SHAFT SEAL RING 32X45X7 BSLNBR

1 140 ₽
27

0770250020 O-RING 25,00X2,00 NBR 70

O-RING 25,00X2,00 NBR 70

560 ₽
28

54833032011 SPACER SLEEVE DRIVE END

SPACER SLEEVE DRIVE END

4 700 ₽
29

50033029013 FRONT SPROCKET 13-T

FRONT SPROCKET 13-T

8 110 ₽
29

50033029014 FRONT SPROCKET 14-T

FRONT SPROCKET 14-T

8 110 ₽
30

52033096000 LOCK RING DIN0471-25X1,64SD

LOCK RING DIN0471-25X1,64SD

1 110 ₽
31

0625062035 BALL BEARING 6203 JR2 C3

BALL BEARING 6203 JR2 C3

3 890 ₽
99

00050000940 COUNTER SHAFT REP.KIT 2 STROKE

COUNTER SHAFT REP.KIT 2 STROKE

5 780 ₽
