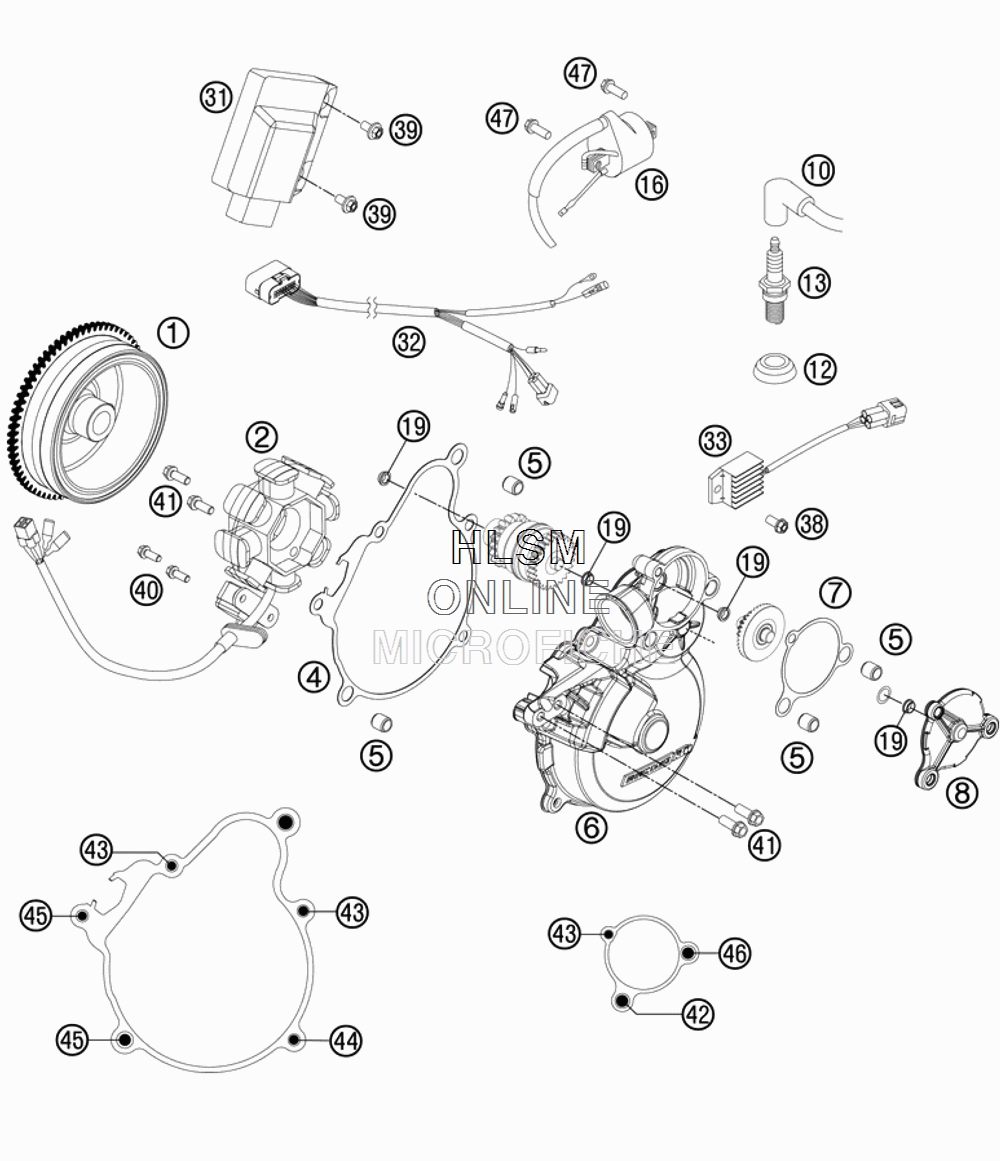

IGNITION SYSTEM для Ktm 250 XC - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    55139005000 FLYWHEEL KOKUSAN
    FLYWHEEL KOKUSAN
  • 2
    55139004000 STATOR KOKUSAN
    STATOR KOKUSAN
  • 4
    55130040000 IGNITI.COVER GASKET
    IGNITI.COVER GASKET
  • 5
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 6
    5513000224433 IGNITION COVER CPL.
    IGNITION COVER CPL.
  • 7
    55130041100 IGN. OUT SIDE COV. GASKET
    IGN. OUT SIDE COV. GASKET
  • 8
    5513004524433 OUTER IGNITION COVER CPL.
    OUTER IGNITION COVER CPL.
  • 10
    47039090000 SPARK PLUG CAP NGK REINFORC.
    SPARK PLUG CAP NGK REINFORC.
  • 12
    50231012000 SEALING CUP FOR SPARK PLUG
    SEALING CUP FOR SPARK PLUG
  • 13
    54739093000 SPARK PLUG NGK BR7ES
    SPARK PLUG NGK BR7ES
  • 16
    59039006000 IGNITION COIL "IG5128"
    IGNITION COIL "IG5128"
  • 19
    55140030100 COLLAR BUSHING
    COLLAR BUSHING
  • 31
    54839131300 CDI UNIT
    CDI UNIT
  • 32
    54839032300 WIRING HARNESS F.CDI 2-ST.
    WIRING HARNESS F.CDI 2-ST.
  • 33
    80011034000 VOLTAGE REGULATOR 04
    VOLTAGE REGULATOR 04
  • 38
    0025060126 HH COLLAR SCREW M6X12 TX30
    HH COLLAR SCREW M6X12 TX30
  • 39
    0081645121 EJOT DELTA PT SCREW 45X12-Z
    EJOT DELTA PT SCREW 45X12-Z
  • 40
    0014050123 HH COLLAR SCREW M 5X12 WS=6
    HH COLLAR SCREW M 5X12 WS=6
  • 41
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 42
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 43
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 44
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 45
    0025060356 HH COLLAR SCREW M6X35 TX30
    HH COLLAR SCREW M6X35 TX30
  • 46
    0025060706 HH COLLAR SCREW M6X70 TX30
    HH COLLAR SCREW M6X70 TX30
  • 47
    0026060186 COLLAR SCREW M6X18 ISA30
    COLLAR SCREW M6X18 ISA30
