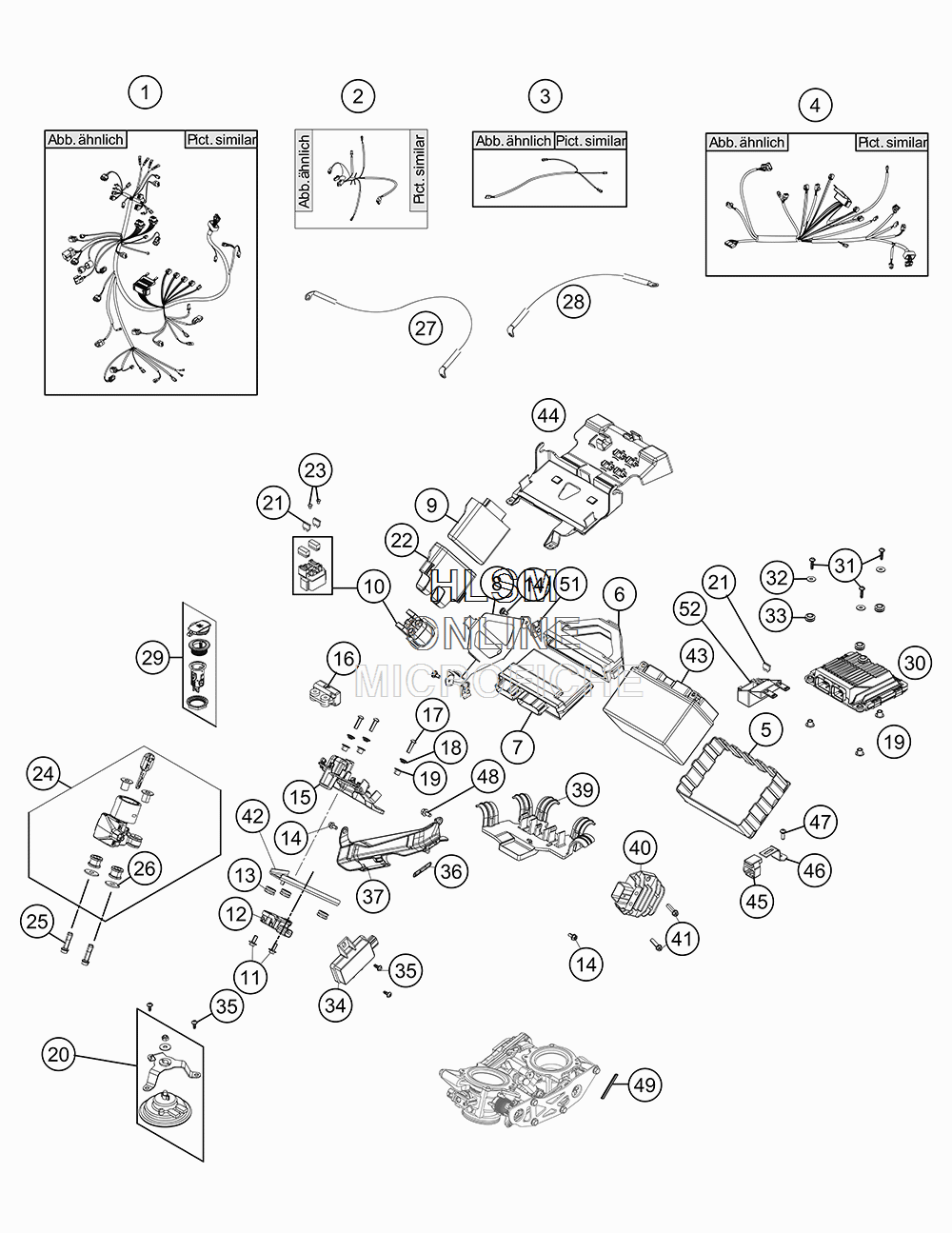

WIRING HARNESS для Ktm 1190 ADVENTURE - 2013 года выпуска`
-
№АртикулНазвание
-
160311075000 MAIN WIRING HARNESSMAIN WIRING HARNESS
-
260311085000 WIRING ENGINEWIRING ENGINE
-
360311079000 WIRING HARNESS HEADLIGHTWIRING HARNESS HEADLIGHT
-
460311076000 REAR WIRING HARNESSREAR WIRING HARNESS
-
560311053050 BATTERIE HOUSINGBATTERIE HOUSING
-
660341031050 ECU RUBBER BRACKETECU RUBBER BRACKET
-
761341031000 TIMING CHARGER EFITIMING CHARGER EFI
-
860311057050 BRACKET ELECTRICBRACKET ELECTRIC
-
960316031000 CONTROL UNITEDSCONTROL UNITEDS
-
1058211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
110024060136 HH COLLAR SCREW M6X13 TX30HH COLLAR SCREW M6X13 TX30
-
1260342090000 SLOPING POSITIONS SENSORSLOPING POSITIONS SENSOR
-
1362142041000 DAMP.COMPONENT ABS MODULEDAMP.COMPONENT ABS MODULE
-
1469008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
1560311048000 SUPPORTBRACKETFRONTSUPPORTBRACKETFRONT
-
1661041088000 ROLLOVER SENSOR 05ROLLOVER SENSOR 05
-
170738060201 FLAT HEAD SCREW ISO7380 M6X20FLAT HEAD SCREW ISO7380 M6X20
-
1876508043050 COLLAR BUSHINGCOLLAR BUSHING
-
1969014015000 BUSHING HEAD LIGHTBUSHING HEAD LIGHT
-
2060311060000 HORN CPL.HORN CPL.
-
2158011109140 FUSE 40 AFUSE 40 A
-
2158011109130 FUSE 30 AFUSE 30 A
-
2158011109125 FUSE 25 AFUSE 25 A
-
2158011109115 FUSE 15 AFUSE 15 A
-
2158011109110 FUSE 10 AFUSE 10 A
-
2260316029000 RUBBEREDS-CONTROL UNITRUBBEREDS-CONTROL UNIT
-
230902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
2460311066000 IGNITION LOCKIGNITION LOCK
-
250025080306S HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
260021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
2760311059000 STARTER CABLESTARTER CABLE
-
2860311098000 GROUND CABLEGROUND CABLE
-
2960311042000 POWER OUTLET 12VPOWER OUTLET 12V
-
3060311033000 ENGINE CONTROL UNITENGINE CONTROL UNIT
-
310081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
320021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
3360006001022 RUB.SLEEVE FLOAT CHAMB.VENTINGRUB.SLEEVE FLOAT CHAMB.VENTING
-
3460312032000 RECEIVER AIR PRESSURE SENSORRECEIVER AIR PRESSURE SENSOR
-
350081050121 SCREW FOR PLASTIC K50X12 T20SCREW FOR PLASTIC K50X12 T20
-
3660311046050 CABLE PASSAGECABLE PASSAGE
-
3760311047000 CABLE CHANNEL RIGHTCABLE CHANNEL RIGHT
-
3960311049000 SUPPORT BRACKET REARSUPPORT BRACKET REAR
-
4060311034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
410025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
4260342090040 BRACKET SLOPING POSITIONS SENSORBRACKET SLOPING POSITIONS SENSOR
-
4360011053000 BATTERY 12V/11AH 03BATTERY 12V/11AH 03
-
4460308017000 BATTERY COVERBATTERY COVER
-
4561041085050 RUBBER SUPP. PRESSURE SENSORRUBBER SUPP. PRESSURE SENSOR
-
4660311040100 BRACKET PRESSURE SENSORBRACKET PRESSURE SENSOR
-
470081050161 EJOT PT SCREW K50X16 1451EJOT PT SCREW K50X16 1451
-
480023060123 COLLAR SCREW M6X12 TXCOLLAR SCREW M6X12 TX
-
4961011055045 EDGE PROTECTOR L=45MMEDGE PROTECTOR L=45MM
-
5069008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
5154603048200 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
5258411087050 RUBBER COVER F.LOCKHOLDERRUBBER COVER F.LOCKHOLDER
